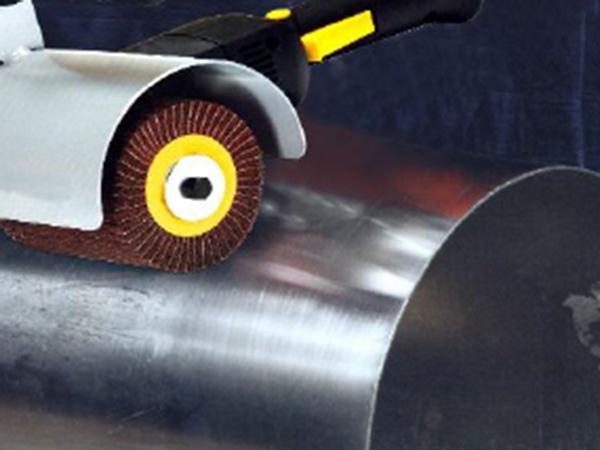

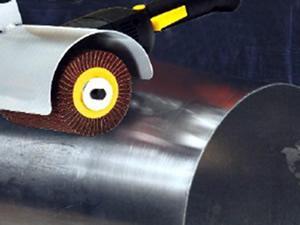

Joysun linear cleaning & strip-it drums are satin finishing wheels that are produced with a built in bushing core, or quick change thread arbor that features a locking mechanism for quick tool changing. The nylon fibers of this linear drum are coated with an extra-coarse silicon carbide grain. This cleaning &strip-it linear satin finish wheels are widely used for all sorts of satin finishing machines and will deliver an excellent performance for surface finishing and boast outstanding flexibility and strength. These excellent products have seen in the wide application of following uses like a large flat surface, concave surface, convex surface finishing of stainless steel, high tensile alloys, carbon steels, aluminum alloy, non-ferrous metals, glass, plastics, marble, stone and much more.
Product Code | JAC-C818BS | JAC-C828PS | JAC-C838RS |
Abrasive Grains | Silicon Carbide | Silicon Carbide | Silicon Carbide |
Materials Colour | Black | Purple | Blue |
SIZE | SIZE | OPT | MAX | STD | PART # | PART # | PART # |
( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | |||
100 x 50 x 19 mm | 2,000 | 5,700 | 10 | 82343 | 83343 | 84343 | |
100 x 100 x 19 mm | 2,000 | 5,700 | 10 | 82356 | 83356 | 84356 | |
100 x 50 x 5/8"-11 | 2,000 | 5,700 | 10 | 82369 | 83369 | 84369 | |
100 x 100 x 5/8"-11 | 2,000 | 5,700 | 10 | 82372 | 83372 | 84372 | |
100 x 50 x M14-2 | 2,000 | 5,700 | 10 | 82385 | 83385 | 84385 | |
100 x 100 x M14-2 | 2,000 | 5,700 | 10 | 82398 | 83398 | 84398 |
