Non-Woven Satin Finish Drums

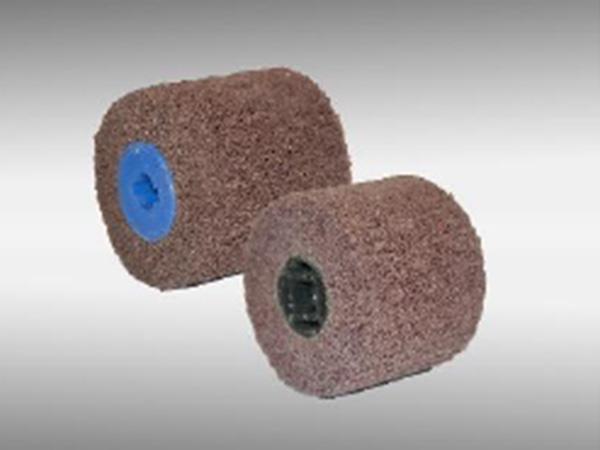

Joysun Alumina non-woven satin finish drums are produced with the premium quality alumina oxide grains bonded to a web structure with a built-in plastic bushing core or the quick change thread arbor that allows for quick and easy changeover.

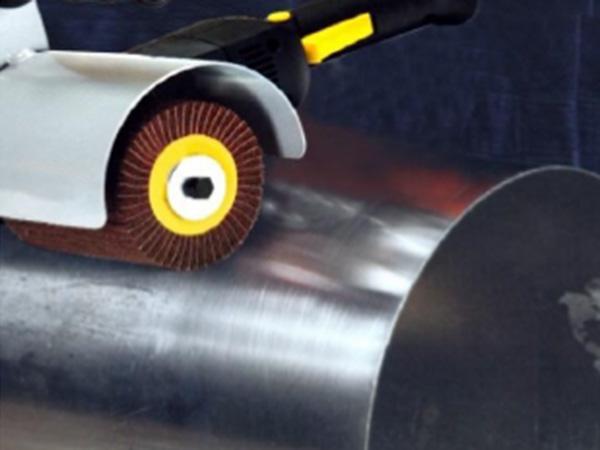

The finishing wheels are widely used for various operations that require a satin finish on large, mostly flat surfaces. They deliver excellent performance on materials such as stainless steel, high tensile alloys, carbon steel, aluminum alloy, non-ferrous metals, glass, plastics, marble and stone.

JAC-K716KS Non-Woven Satin Finish Drums
  • JAC-K716KS Non-Woven Satin Finish Drums
  • JAC-K716KS Non-Woven Satin Finish Drums
  • JAC-K716KS Non-Woven Satin Finish Drums
  • JAC-K716KS Non-Woven Satin Finish Drums
Availability
Product Code JAC-K716KS JAC-K717RS JAC-K718VS
Abrasive Grains Aluminum Oxide Aluminum Oxide Aluminum Oxide
Backing Cloth Type Non-woven Non-woven Non-woven
Flaps Fitted Version Single Single Single
Wheel Center Hole Type Keyway Hole / Threaded Hole Keyway Hole / Threaded Hole Keyway Hole / Threaded Hole
SIZE SIZE OPT MAX GRIT STD PART # PART # PART # PART # PART # PART #
( D x W x H ) ( D x W x H ) RPM RPM PACK
4" x 2" x 3/4" 100 x 50 x 19 mm 2,000 5,700 CRS 10 71006 71007 71008
MED 71019 71010 71011
FIN 71022 71023 71024
VFN 71035 71036 71037
SFN 71048 71049 71040
4" x 4" x 3/4" 100 x 100 x 19 mm 2,000 5,700 CRS 10 71051 　 71052 　 71053 　
MED 71064 71065 71066
FIN 71077 71078 71079
VFN 71080 71081 71082
　 　 SFN 71093 　 71094 　 71095 　
4-1/4" x 2" x 5/8"-11 105 x 50 x 5/8"-11 2,000 5,700 CRS 10 71106 71107 71108
MED 71119 71110 71111
FIN 71122 71123 71124
VFN 71135 71136 71137
SFN 71148 71149 71140
4-1/4" x 4" x 5/8"-11 105 x 100 x 5/8"-11 2,000 5,700 CRS 10 71151 71152 71153
MED 71164 71165 71166
FIN 71177 71178 71179
VFN 71180 71181 71182
　 　 SFN 71193 71194 71195
4-1/2" x 2" x 5/8"-11 115 x 50 x 5/8"-11 2,000 5,700 CRS 10 71206 71207 71208
MED 71219 71210 71211
FIN 71222 71223 71224
VFN 71235 71236 71237
SFN 71248 71249 71240
4-1/2" x 4" x 5/8"-11 115 x 100 x 5/8"-11 2,000 5,700 CRS 10 71251 71252 71253
MED 71264 71265 71266
FIN 71277 71278 71279
VFN 71280 71281 71282
　 　 SFN 71293 71294 71295
4-1/4" x 2" x M14-2 105 x 50 x M14-2 2,000 5,700 CRS 10 71306 71307 71308
MED 71319 71410 71411
FIN 71422 71423 71424
VFN 71435 71436 71437
　 　 SFN 71448 71449 71440
4-1/4" x 4" x M14-2 105 x 100 x M14-2 2,000 5,700 CRS 10 71451 71452 71453
MED 71464 71465 71466
FIN 71477 71478 71479
VFN 71480 71481 71482
SFN 71493 71494 71495
4-1/2" x 2" x M14-2 115 x 50 x M14-2 2,000 5,700 CRS 10 71506 71507 71508
MED 71519 71510 71511
FIN 71522 71523 71524
VFN 71535 71536 71537
　 　 SFN 71548 71549 71540
4-1/2" x 4" x M14-2 115 x 100 x M14-2 2,000 5,700 CRS 10 71551 71552 71553
MED 71564 71565 71566
FIN 71577 71578 71579
VFN 71580 71581 71582
SFN 71593 71594 71595
JAC-K716KS Non-Woven Satin Finish Drums
