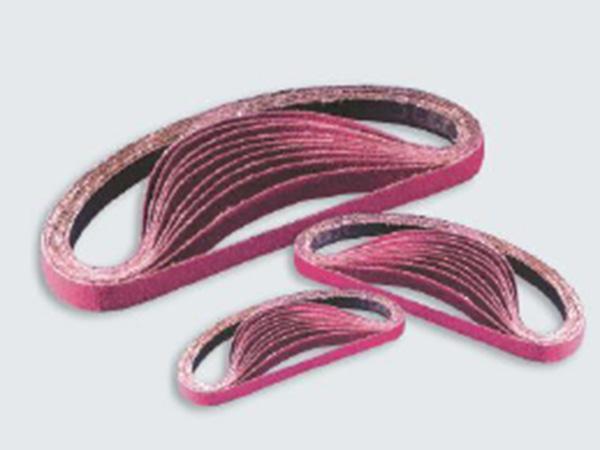

Aluminum Oxide Portable Airfile Belts

Availability

Product Code	JAC-K316KX	JAC-K317RX	JAC-K318SX
Abrasive Grains	Aluminum Oxide	Aluminum Oxide	Aluminum Oxide
Backing Cloth Type	X-weigth Ply-cotton	X-weigth Ply-cotton	X-weigth Ply-cotton
Abrasive Belt Joint Type	Butt joint with splicing tape	Butt joint with splicing tape	Butt joint with splicing tape

SIZE	SIZE	GRIT	STD	PART #	PART #	PART #
( Width x Length )	( Width x Length)	GRIT	PACK	PART #	PART #	PART #
1/4" x 12"	6.35 x 305 mm	40	50	31006	31007	31008
		50	50	31019	31010	31011
		60	50	31022	31023	31024
		80	50	31035	31036	31037
		100	50	31048	31049	31040
		120	50	31051	31052	31053
		150	50	31064	31065	31066
		180	50	31077	31078	31079
3/8" x 1/2"	9.53 x 305 mm	40	50	31080	31081	31082
		50	50	31093	31094	31095
		60	50	31106	31107	31108
		80	50	31119	31110	31111
		100	50	31122	31123	31124
		120	50	31135	31136	31137
		150	50	31148	31149	31140
		180	50	31151	31152	31153
1/2" x 1/2"	12.7 x 305 mm	40	50	31164	31165	31166
		50	50	31177	31178	31179
		60	50	31180	31181	31182
		80	50	31193	31194	31195
		100	50	31206	31207	31208
		120	50	31219	31210	31211
		150	50	31222	31223	31224
		180	50	31235	31236	31237
1" x 1/2"	25.4 x 305 mm	40	50	31248	31249	31240
		50	50	31251	31252	31253
		60	50	31264	31265	31266
		80	50	31277	31278	31279
		100	50	31280	31281	31282
		120	50	31293	31294	31295
		150	50	31306	31307	31308
		180	50	31319	31410	31411
3/8" x 13"	9.53 x 330 mm	40	50	31422	31423	31424
		50	50	31435	31436	31437
		60	50	31448	31449	31440
		80	50	31451	31452	31453
		100	50	31464	31465	31466
		120	50	31477	31478	31479
		150	50	31480	31481	31482
		180	50	31493	31494	31495
1/4" x 18"	6.35 x 457 mm	40	50	31506	31507	31508
		50	50	31519	31510	31511
		60	50	31522	31523	31524
		80	50	31535	31536	31537
		100	50	31548	31549	31540
		120	50	31551	31552	31553
		150	50	31564	31565	31566
		180	50	31577	31578	31579
1/2" x 18"	12.7 x 457 mm	40	50	31580	31581	31582
		50	50	31593	31594	31595
		60	50	31606	31607	31608
		80	50	31619	31610	31611
		100	50	31622	31623	31624
		120	50	31635	31636	31637
		150	50	31648	31649	31640
		180	50	31651	31652	31653
3/4" x 18"	19.0 x 457 mm	40	50	31664	31665	31666
		50	50	31677	31678	31679
		60	50	31680	31681	31682
		80	50	31693	31694	31695
		100	50	31706	31707	31708
		120	50	31719	31710	31711
		150	50	31722	31723	31724
		180	50	31735	31736	31737
3/4" x 20-1/2"	19.0 x 520 mm	40	50	31748	31749	31840
		50	50	31851	31852	31853
		60	50	31864	31865	31866
		80	50	31877	31878	31879
		100	50	31880	31881	31882
		120	50	31893	31894	31895
		150	50	31906	31907	31908
		180	50	31919	31910	31911
1/4" x 24"	6.35 x 610 mm	40	50	31922	31923	31924
		50	50	31935	31936	31937
		60	50	31948	31949	31940
		80	50	31951	31952	31953
		100	50	31964	31965	31966
		120	50	31977	31978	31979
		150	50	31980	31981	31982
		180	50	31993	31994	31995
1/2" x 24"	12.7 x 610 mm	40	50	32006	32007	32008
		50	50	32019	32010	32011
		60	50	32022	32023	32024
		80	50	32035	32036	32037
		100	50	32048	32049	32040
		120	50	32051	32052	32053
		150	50	32064	32065	32066
		180	50	32077	32078	32079
1" x 24"	25.4 x 610 mm	40	50	32080	32081	32082
		50	50	32093	32094	32095
		60	50	32106	32107	32108
		80	50	32119	32110	32111
		100	50	32122	32123	32124
		120	50	32135	32136	32137
		150	50	32148	32149	32140
		180	50	32151	32152	32153
1" x 30"	25.4 x 760 mm	40	50	32164	32165	32166
		50	50	32177	32178	32179
		60	50	32280	32281	32282
		80	50	32293	32294	32295
		100	50	32306	32307	32308
		120	50	32319	32310	32311
		150	50	32322	32323	32324
		180	50	32335	32336	32337

Aluminum Oxide Portable Airfile Belts
