Interleaf Satin Finishing Drums

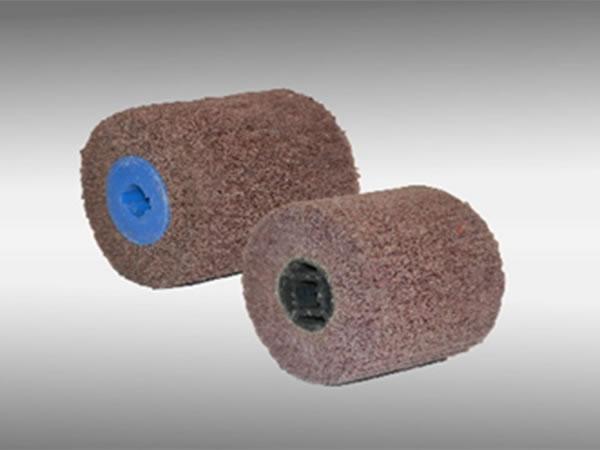

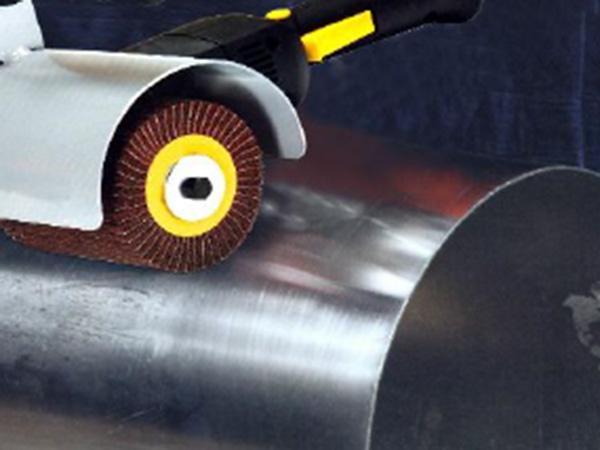

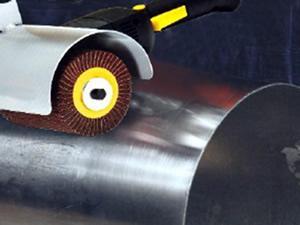

Joysun Combi interleaved satin finish drums are manufactured with an abrasive exterior made up of non-woven flaps with high quality refined alumina oxide grain. They feature a built-in plastic core with a keyhole for rapid changeover. The interleaved linear satin finish wheels are used to produce satin finishes onto a wide variety of different surfaces for various jobs. They minimize thermal load, which significantly increases speed and effectiveness for a fast job done right. They are recommended for jobs on large flat surfaces of stainless steel, high tensile alloys, carbon steel, aluminum alloy, non-ferrous metals, glass, plastic, marble and stone.

JAC-K726KS Interleaf Satin Finishing Drums
  • JAC-K726KS Interleaf Satin Finishing Drums
  • JAC-K726KS Interleaf Satin Finishing Drums
  • JAC-K726KS Interleaf Satin Finishing Drums
  • JAC-K726KS Interleaf Satin Finishing Drums
Availability
Product Code JAC-K726KS JAC-K727RS JAC-K728VS
Abrasive Grains Alumina Oxide Alumina Oxide Alumina Oxide
Backing Cloth Type X-weigth Ply cotton/Non-woven X-weigth Ply cotton/Non-woven X-weigth Ply cotton/Non-woven
Flaps Fitted Version Interleaved Interleaved Interleaved
Wheel Center Hole Type Keyway Hole / Threaded Hole Keyway Hole / Threaded Hole Keyway Hole / Threaded Hole
SIZE SIZE OPT MAX GRIT STD PART # PART # PART # PART # PART # PART #
( D x W x H ) ( D x W x H ) RPM RPM PACK
4" x 2" x 3/4" 100 x 50 x 19 mm 2,000 5,700 CRS + 60 10 72006 72007 72008
MED + 60 72019 72010 72011
MED + 80 72022 72023 72024
MED+100 72035 72036 72037
MED+120 72048 72049 72040
FIN + 120 72051 72052 72053
FIN + 150 72064 72065 72066
VFN + 180 72077 72078 72079
VFN + 240 72080 72081 72082
    SFN + 320   72093 72094 72095
4" x 4" x 3/4" 100 x 100 x 19 mm 2,000 5,700 CRS + 60 10 72106   72107   72108
MED + 60 72119 72110 72111
MED + 80 72122 72123 72124
MED+100 72135 72136 72137
MED+120 72148 72149 72140
FIN + 120 72151 72152 72153
FIN + 150 72164 72165 72166
VFN + 180 72177 72178 72179
VFN + 240 72180 72181 72182
    SFN + 320   72193   72194   72195
4-1/4" x 2" x 5/8"-11 105 x 50 x 5/8"-11 2,000 5,700 CRS + 60 10 72206 72207 72208
MED + 60 72219 72210 72211
MED + 80 72222 72223 72224
MED+100 72235 72236 72237
MED+120 72248 72249 72240
FIN + 120 72251 72252 72253
FIN + 150 72264 72265 72266
VFN + 180 72277 72278 72279
VFN + 240 72280 72281 72282
SFN + 320 72293 72294 72295
4-1/4" x 4" x 5/8"-11 104 x 100 x 5/8"-11 2,000 5,700 CRS + 60 10 72306 72307 72308
MED + 60 72319 72410 72411
MED + 80 72422 72423 72424
MED+100 72435 72436 72437
MED+120 72448 72449 72440
FIN + 120 72451 72452 72453
FIN + 150 72464 72465 72466
VFN + 180 72477 72478 72479
VFN + 240 72480 72481 72482
    SFN + 320   72493 72494 72495
4-1/2" x 2" x 5/8"-11 115 x 50 x 5/8"-11 2,000 5,700 CRS + 60 10 72506 72507 72508
MED + 60 72519 72510 72511
MED + 80 72522 72523 72524
MED+100 72535 72536 72537
MED+120 72548 72549 72540
FIN + 120 72551 72552 72553
FIN + 150 72564 72565 72566
VFN + 180 72577 72578 72579
VFN + 240 72580 72581 72582
SFN + 320 72593 72594 72595
4-1/2" x 4" x 5/8"-11 115 x 100 x 5/8"-11 2,000 5,700 CRS + 60 10 72606 72607 72608
MED + 60 72619 72610 72611
MED + 80 72622 72623 72624
MED+100 72635 72636 72637
MED+120 72648 72649 72640
FIN + 120 72651 72652 72653
FIN + 150 72664 72665 72666
VFN + 180 72677 72678 72679
VFN + 240 72680 72681 72682
    SFN + 320   72693 72694 72695
4-1/4" x 2" x M14-2 105 x 50 x M14-2 2,000 5,700 CRS + 60 10 72706 72707 72708
MED + 60 72719 72710 72711
MED + 80 72722 72723 72724
MED+100 72735 72736 72737
MED+120 72748 72749 72840
FIN + 120 72851 72852 72853
FIN + 150 72864 72865 72866
VFN + 180 72877 72878 72879
VFN + 240 72880 72881 72882
    SFN + 320   72893 72894 72895
4-1/4" x 4" x M14-2 105 x 100 x M14-2 2,000 5,700 CRS + 60 10 72906 72907 72908
MED + 60 72919 72910 72911
MED + 80 72922 72923 72924
MED+100 72935 72936 72937
MED+120 72948 72949 72940
FIN + 120 72951 72952 72953
FIN + 150 72964 72965 72966
VFN + 180 72977 72978 72979
VFN + 240 72980 72981 72982
SFN + 320 72993 72994 72995
4-1/2" x 2" x M14-2 115 x 50 x M14-2 2,000 5,700 CRS + 60 10 73006 73007 73008
MED + 60 73019 73010 73011
MED + 80 73022 73023 73024
MED+100 73035 73036 73037
MED+120 73048 73049 73040
FIN + 120 73051 73052 73053
FIN + 150 73064 73065 73066
VFN + 180 73077 73078 73079
VFN + 240 73080 73081 73082
    SFN + 320   73093 73094 73095
4-1/2" x 4" x M14-2 115 x 100 x M14-2 2,000 5,700 CRS + 60 10 73106 73107 73108
MED + 60 73119 73110 73111
MED + 80 73122 73123 73124
MED+100 73135 73136 73137
MED+120 73148 73149 73140
FIN + 120 73151 73152 73153
FIN + 150 73164 73165 73166
VFN + 180 73177 73178 73179
VFN + 240 73280 73281 73282
SFN + 320 73293 73294 73295
JAC-K726KS Interleaf Satin Finishing Drums
