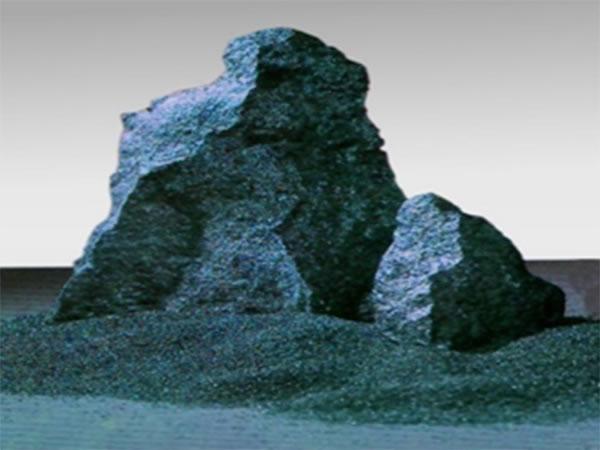

The fused zirconia alumina grit is a high purity abrasive material that is electrically fused with zirconite materials at a high temperature in an arc furnace. Its high tough texture and dense structure, free cutting abrasive characteristics and good thermal shock resistance make it primarily suitable for applications in the vitrified bonded abrasives and coated abrasives, investment casting markets, monolithic and bonded refractories. This material is available in grit sizes, micron sizes, split sizes.
AvailabilityGrade | Grit Size | CHEMICAL & PHYSICAL SPECIFICATION | |||||
Al2O3 | ZrO2 | SiO2 | Fe2O3 | Magnetic Mass | Bulk Density | ||
0.1 mm min. | 73.0% min. | 25.0% min. | 0.80% max. | 0.20% max. | 0.05% max. | 4.0 g/cm3 | |
0.1 mm max. | 73.0% min. | 25.0% min. | 0.80% max. | 0.30% max. | 0.10% max. | 4.0 g/cm3 | |
0.1 mm min. | 68.0% min. | 31.0% min. | 0.80% max. | 0.20% max. | 0.05% max. | 4.0 g/cm3 | |
0.1 mm max. | 68.0% min. | 31.0% min. | 0.80% max. | 0.30% max. | 0.10% max. | 4.0 g/cm3 |
