Surface Conditioning Mounted Flap Wheels

Joysun Alumina surface conditioning mounted flap wheels are designed and manufactured using high quality synthetic fiber mesh (Scotch Brite Brand) that is coated with aluminum oxide grains that are INOX rated free of iron, sulfur, and chlorinated fillers.

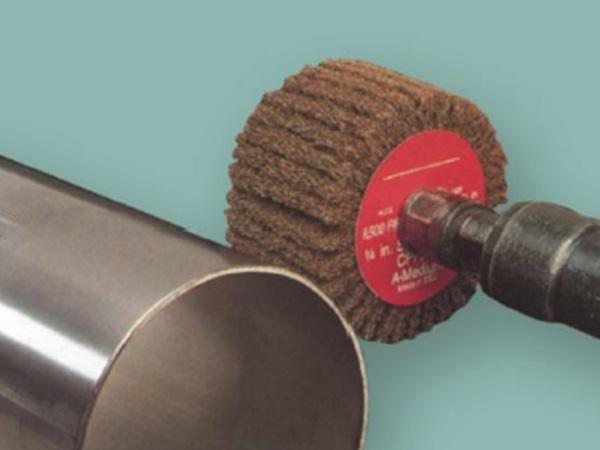

The 3D rigid structures of this flap wheels can provide excellent finishing effects. The high performance of surface conditioning mounted wheels can produce highly uniform finishes each time and can be relied upon for an extended working life compared to traditional abrasive tools. The conditioning tools are suitable for various metals, plastics, rubber and wood.

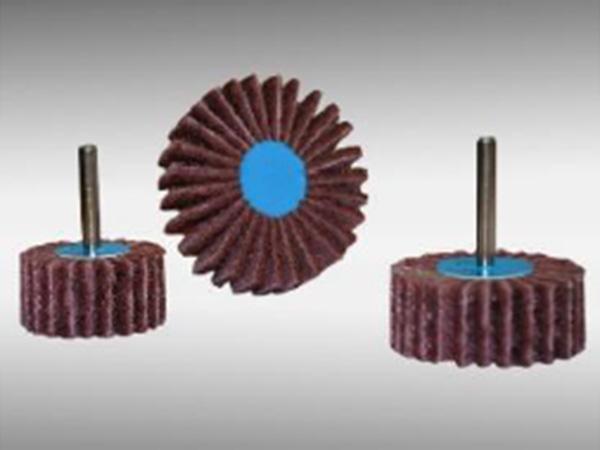

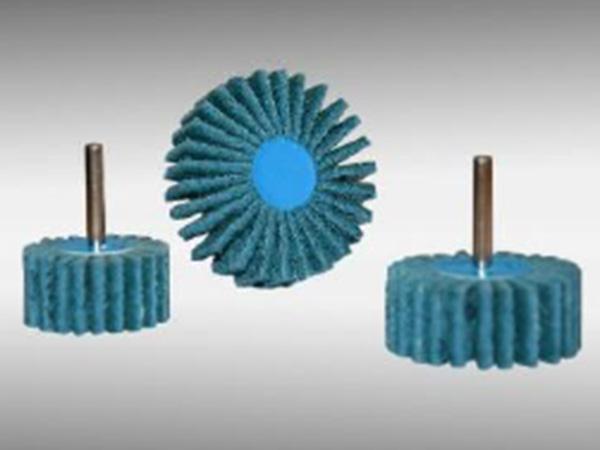

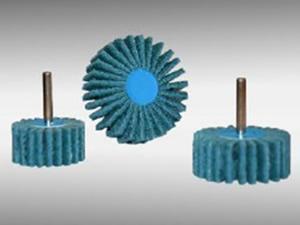

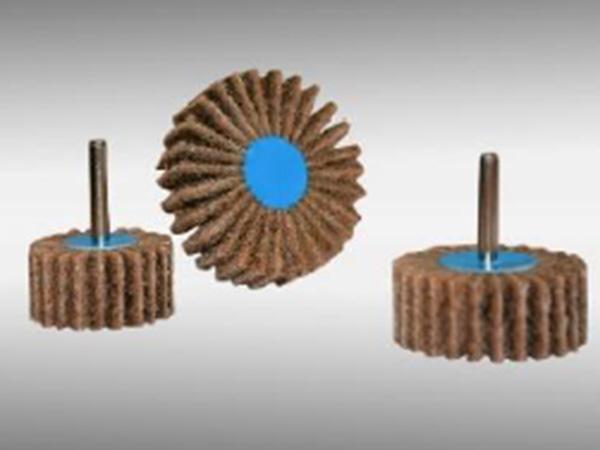

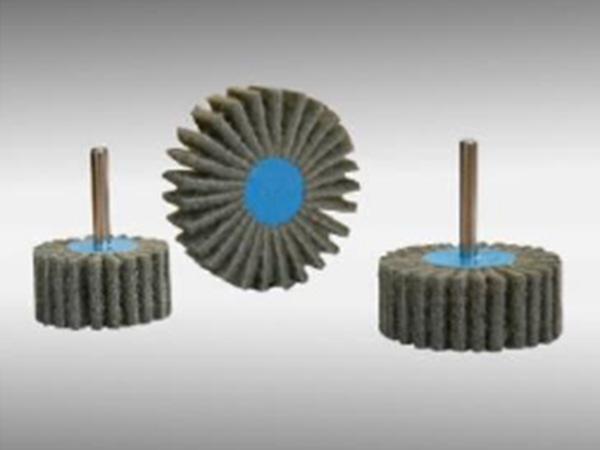

JAC-K736GM Surface Conditioning Mounted Flap Wheels
  • JAC-K736GM Surface Conditioning Mounted Flap Wheels
  • JAC-K736GM Surface Conditioning Mounted Flap Wheels
  • JAC-K736GM Surface Conditioning Mounted Flap Wheels
  • JAC-K736GM Surface Conditioning Mounted Flap Wheels
  • JAC-K736GM Surface Conditioning Mounted Flap Wheels
Availability
Product Code JAC-K736GM JAC-K737KM JAC-K738TM JAC-K739LM
Abrasive Grains Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide
Backing Cloth Type Scrimmed backed Non-woven Scrimmed backed Non-woven Scrimmed backed Non-woven Scrimmed backed Non-woven
Flap Mounted Versions Single Single Single Single
Straight Steel Shank Size Straight Shank-1/4" Straight Shank-1/4" Straight Shank-1/4" Straight Shank-1/4"
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART # PART #
( D x W x S ) ( D x W x S ) RPM RPM PACK
1-3/16" x 3/4" x 1/4" 30 x 20 x 6 mm 17,100 23,800 10 CRS 73006 73007 73008 73009
MED 73019 73010 73011 73012
FIN 73022 73023 73024 73025
VFN 73035 73036 73037 73038
　 　 　 SFN 73048 73049 73040 73041
1-3/16" x 1" x 1/4" 30 x 25 x 6 mm 17,100 23,800 10 CRS 73051 73052 73053 73054
MED 73064 73065 73066 73067
FIN 73077 73078 73079 73070
VFN 73080 73081 73082 73083
　 　 　 SFN 73093 73094 73095 73096
1-3/16" x1-3/16"x1/4" 30 x 30 x 6 mm 17,100 23,800 10 CRS 73106 73107 73108 73109
MED 73119 73110 73111 73112
FIN 73122 73123 73124 73125
VFN 73135 73136 73137 73138
　 　 　 SFN 73148 73149 73140 73141
1-1/2" x 3/4" x 1/4" 40 x 20 x 6 mm 17,100 23,800 10 CRS 73151 73152 73153 73154
MED 73164 73165 73166 73167
FIN 73177 73178 73179 73170
VFN 73180 73181 73182 73183
　 　 　 SFN 73193 73194 73195 73196
1-1/2" x 1" x 1/4" 40 x 25 x 6 mm 17,100 23,800 10 CRS 73206 73207 73208 73209
MED 73219 73210 73211 73212
FIN 73222 73223 73224 73225
VFN 73235 73236 73237 73238
　 　 　 SFN 73248 73249 73240 73241
1-1/2" x1-3/16"x1/4" 40 x 30 x 6 mm 17,100 23,800 10 CRS 73251 73252 73253 73254
MED 73264 73265 73266 73267
FIN 73277 73278 73279 73270
VFN 73280 73281 73282 73283
　 　 　 SFN 73293 73294 73295 73296
2" x 3/4" x 1/4" 50 x 20 x 6 mm 13,700 19,000 10 CRS 73306 73307 73308 73309
MED 73319 73410 73411 73412
FIN 73422 73423 73424 73425
VFN 73435 73436 73437 73438
　 　 　 SFN 73448 73449 73440 73441
2" x 1" x 1/4" 50 x 25 x 6 mm 13,700 19,000 10 CRS 73451 73452 73453 73454
MED 73464 73465 73466 73467
FIN 73477 73478 73479 73470
VFN 73480 73481 73482 73483
　 　 　 SFN 73493 73494 73495 73496
2" x1-3/16 "x 1/4" 50 x 30 x 6 mm 13,700 19,000 10 CRS 73506 73507 73508 73509
MED 73519 73510 73511 73512
FIN 73522 73523 73524 73525
VFN 73535 73536 73537 73538
　 　 　 SFN 73548 73549 73540 73541
2" x 1-1/2" x 1/4" 50 x 40 x 6 mm 13,700 19,000 10 CRS 73551 73552 73553 73554
MED 73564 73565 73566 73567
FIN 73577 73578 73579 73570
VFN 73580 73581 73582 73583
　 　 　 SFN 73593 73594 73595 73596
2-1/2" x 3/4" x 1/4" 60 x 20 x 6 mm 11,500 16,100 10 CRS 73606 73607 73608 73609
MED 73619 73610 73611 73612
FIN 73622 73623 73624 73625
VFN 73635 73636 73637 73638
　 　 　 SFN 73648 73649 73640 73641
2-1/2" x 1" x 1/4" 60 x 25 x 6 mm 11,500 16,100 10 CRS 73651 73652 73653 73654
MED 73664 73665 73666 73667
FIN 73677 73678 73679 73670
VFN 73680 73681 73682 73683
　 　 　 SFN 73693 73694 73695 73696
2-1/2"x1-3/16 "x 1/4" 60 x 30 x 6 mm 11,500 16,100 10 CRS 73706 73707 73708 73709
MED 73719 73710 73711 73712
FIN 73722 73723 73724 73725
VFN 73735 73736 73737 73738
　 　 　 SFN 73748 73749 73840 73841
2-1/2"x 1-1/2" x 1/4" 60 x 40 x 6 mm 11,500 16,100 10 CRS 73851 73852 73853 73854
MED 73864 73865 73866 73867
FIN 73877 73878 73879 73870
VFN 73880 73881 73882 73883
　 　 　 SFN 73893 73894 73895 73896
2" x 2" x 1/4" 60 x 50 x 6 mm 11,500 16,100 10 CRS 73906 73907 73908 73909
MED 73919 73910 73911 73912
FIN 73922 73923 73924 73925
VFN 73935 73936 73937 73938
　 　 　 SFN 73948 73949 73940 73941
3" x 3/4" x 1/4" 75 x 20 x 6 mm 8,600 11,800 10 CRS 73951 73952 73953 73954
MED 73964 73965 73966 73967
FIN 73977 73978 73979 73970
VFN 73980 73981 73982 73983
　 　 　 SFN 73993 73994 73995 73996
3" x 1" x 1/4" 75 x 25 x 6 mm 8,600 11,800 10 CRS 74006 74007 74008 74009
MED 74019 74010 74011 74012
FIN 74022 74023 74024 74025
VFN 74035 74036 74037 74038
　 　 　 SFN 74048 74049 74040 74041
3" x 1-3/16 "x 1/4" 75 x 30 x 6 mm 8,600 11,800 10 CRS 74051 74052 74053 74054
MED 74064 74065 74066 74067
FIN 74077 74078 74079 74070
VFN 74080 74081 74082 74083
　 　 　 SFN 74093 74094 74095 74096
3" x 1-1/2 x 1/4" 75 x 40 x 6 mm 8,600 11,800 10 CRS 74106 74107 74108 74109
MED 74119 74110 74111 74112
FIN 74122 74123 74124 74125
VFN 74135 74136 74137 74138
　 　 　 SFN 74148 74149 74140 74141
3" x 2" x 1/4" 75 x 50 x 6 mm 8,600 11,800 10 CRS 74151 74152 74153 74154
MED 74164 74165 74166 74167
FIN 74177 74178 74179 74270
VFN 74280 74281 74282 74283
　 　 　 SFN 74293 74294 74295 74296
3-3/16" x 3/4" x 1/4" 80 x 20 x 6 mm 8,000 10,000 10 CRS 74306 74307 74308 74309
MED 74319 74310 74311 74312
FIN 74322 74323 74324 74325
VFN 74335 74336 74337 74338
　 　 　 SFN 74348 74349 74340 74341
3-3/16" x 1" x 1/4" 80 x 25 x 6 mm 8,000 10,000 10 CRS 74351 74352 74353 74354
MED 74364 74365 74366 74367
FIN 74377 74378 74379 74370
VFN 74380 74381 74382 74383
　 　 　 SFN 74393 74394 74395 74396
3-3/16" x1-3/16"x 1/4" 80 x 30 x 6 mm 8,000 10,000 10 CRS 74406 74407 74408 74409
MED 74419 74410 74411 74412
FIN 74422 74423 74424 74425
VFN 74435 74436 74437 74438
　 　 　 SFN 74448 74449 74440 74441
3-3/16" x 1-1/2" x 1/4" 80 x 40 x 6 mm 8,000 10,000 10 CRS 74451 74452 74453 74454
MED 74464 74465 74466 74467
FIN 74477 74478 74479 74470
VFN 74480 74481 74482 74483
　 　 　 SFN 74493 74494 74495 74496
3-3/16" x 2" x 1/4" 80 x 50 x 6 mm 8,000 10,000 10 CRS 74506 74507 74508 74509
MED 74519 74510 74511 74512
FIN 74522 74523 74524 74525
VFN 74535 74536 74537 74538
SFN 74548 74549 74540 74541
JAC-K736GM Surface Conditioning Mounted Flap Wheels
