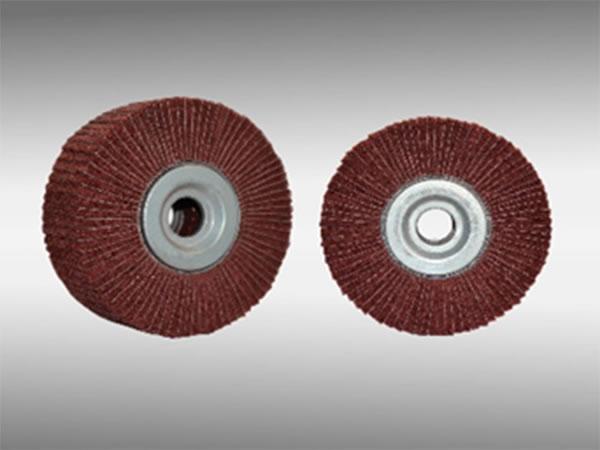

Joysun Combi interleaf non-woven flanged flap wheels are manufactured by utilizing enhanced production techniques of combining professional grade aluminum oxide abrasive cloth and X and J weight backing cloth, which have been source from well-known brands.

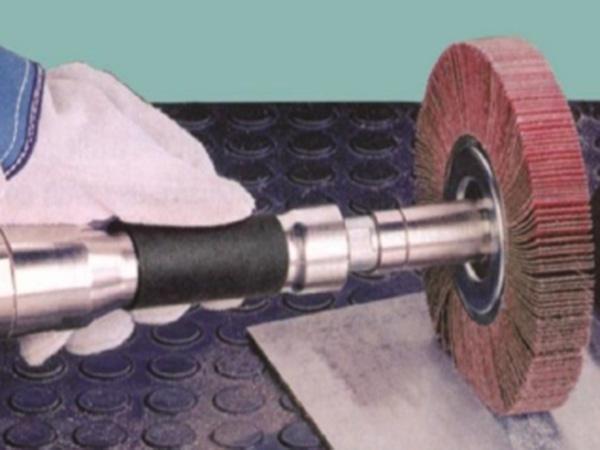

These abrasive flap wheels feature a flexible structure that, providing a softer and more flexible operation. This makes them suitable for de-burring, creating decorative finishes, and rust removal among others. They are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.
Product Code | JAC-K727RF | JAC-K728SF | JAC-K729GF |
Abrasive Grains | Refined Alumina Oxide | Refined Alumina Oxide | Refined Alumina Oxide |
Backing Cloth Type | X-Flex cotton/Non-woven | X-Flex cotton/Non-woven | X-Flex cotton/Non-woven |
Flap Mounted Version | Interleaved | Interleaved | Interleaved |
Fasten Type Of Steel Flange | U Type Slot | U Type Slot | U Type Slot |
BRITSH SIZE | METRIC SIZE | OPT | MAX | STD | Grit | PART # | PART # | PART # |
( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | ||||
3-1/2" x 2" x 3/8" | 90 x 50 x 10 mm | 5,200 | 12,000 | 10 | CRS+ 50 | 72207 | 72208 | 72209 |
CRS+ 60 | 72210 | 72211 | 72212 | |||||
MED+80 | 72223 | 72224 | 72225 | |||||
MED+120 | 72236 | 72237 | 72238 | |||||
FIN+180 | 72249 | 72240 | 72241 | |||||
VFN+240 | 72252 | 72253 | 72254 | |||||
VFN+320 | 72265 | 72266 | 72267 | |||||
4" x 2" x 5/8" | 100 x 50 x 16 mm | 5,200 | 12,000 | 10 | CRS+ 50 | 72278 | 72279 | 72270 |
CRS+ 60 | 72281 | 72282 | 72283 | |||||
MED+80 | 72294 | 72295 | 72296 | |||||
MED+120 | 72307 | 72308 | 72309 | |||||
FIN+180 | 72310 | 72311 | 72312 | |||||
VFN+240 | 72323 | 72324 | 72325 | |||||
VFN+320 | 72336 | 72337 | 72338 | |||||
6" x 1" x 1" | 150 x 25 x 25 mm | 3,000 | 6,100 | 10 | CRS+ 50 | 72349 | 72340 | 72341 |
CRS+ 60 | 72352 | 72353 | 72354 | |||||
MED+80 | 72365 | 72366 | 72367 | |||||
MED+120 | 72378 | 72379 | 72370 | |||||
FIN+180 | 72381 | 72382 | 72383 | |||||
VFN+240 | 72394 | 72395 | 72396 | |||||
VFN+320 | 72407 | 72408 | 72409 | |||||
6" x 2" x 1" | 150 x 50 x 25 mm | 3,000 | 6,100 | 10 | CRS+ 50 | 72410 | 72411 | 72412 |
CRS+ 60 | 72423 | 72424 | 72425 | |||||
MED+80 | 72436 | 72437 | 72438 | |||||
MED+120 | 72449 | 72440 | 72441 | |||||
FIN+180 | 72452 | 72453 | 72454 | |||||
VFN+240 | 72465 | 72466 | 72467 | |||||
VFN+320 | 72478 | 72479 | 72470 | |||||
6" x 3" x 1" | 150 x 75 x 25 mm | 3,000 | 6,100 | 10 | CRS+ 50 | 72481 | 72482 | 72483 |
CRS+ 60 | 72494 | 72495 | 72496 | |||||
MED+80 | 72507 | 72508 | 72509 | |||||
MED+120 | 72610 | 72611 | 72612 | |||||
FIN+180 | 72623 | 72624 | 72625 | |||||
VFN+240 | 72636 | 72637 | 72638 | |||||
VFN+320 | 72649 | 72640 | 72641 | |||||
6-1/2" x 1" x 2-1/8" | 165 x 25 x 54 mm | 2,700 | 5,300 | 10 | CRS+ 50 | 72652 | 72653 | 72654 |
CRS+ 60 | 72665 | 72666 | 72667 | |||||
MED+80 | 72678 | 72679 | 72670 | |||||
MED+120 | 72681 | 72682 | 72683 | |||||
FIN+180 | 72694 | 72695 | 72696 | |||||
VFN+240 | 72707 | 72708 | 72709 | |||||
VFN+320 | 72710 | 72711 | 72712 | |||||
6-1/2" x 2" x 2-1/8" | 165 x 50 x 54 mm | 2,700 | 5,300 | 10 | CRS+ 50 | 72723 | 72724 | 72725 |
CRS+ 60 | 72736 | 72737 | 72738 | |||||
MED+80 | 72749 | 72740 | 72741 | |||||
MED+120 | 72752 | 72753 | 72754 | |||||
FIN+180 | 72765 | 72766 | 72767 | |||||
VFN+240 | 72778 | 72779 | 72770 | |||||
VFN+320 | 72781 | 72782 | 72783 | |||||
8" x 2" x 1" | 200 x 50 x 25 mm | 2,400 | 4,500 | 10 | CRS+ 50 | 72794 | 72795 | 72796 |
CRS+ 60 | 72807 | 72808 | 72809 | |||||
MED+80 | 72810 | 72811 | 72812 | |||||
MED+120 | 72823 | 72824 | 72825 | |||||
FIN+180 | 72836 | 72837 | 72838 | |||||
VFN+240 | 72849 | 72840 | 72841 | |||||
VFN+320 | 72852 | 72853 | 72854 | |||||
8" x 3" x 1" | 200 x 50 x 25 mm | 2,400 | 4,500 | 10 | CRS+ 50 | 72865 | 72866 | 72867 |
CRS+ 60 | 72878 | 72879 | 72870 | |||||
MED+80 | 72881 | 72882 | 72883 | |||||
MED+120 | 72894 | 72895 | 72896 | |||||
FIN+180 | 72907 | 72908 | 72909 | |||||
VFN+240 | 72910 | 72911 | 72912 | |||||
VFN+320 | 72923 | 72924 | 72925 | |||||
12" x 1" x 5" | 300 x 25 x125 mm | 1,700 | 3,000 | 10 | CRS+ 50 | 72936 | 72937 | 72938 |
CRS+ 60 | 72949 | 73040 | 73041 | |||||
MED+80 | 73052 | 73053 | 73054 | |||||
MED+120 | 73065 | 73066 | 73067 | |||||
FIN+180 | 73078 | 73079 | 73070 | |||||
VFN+240 | 73081 | 73082 | 73083 | |||||
VFN+320 | 73094 | 73095 | 73096 |
