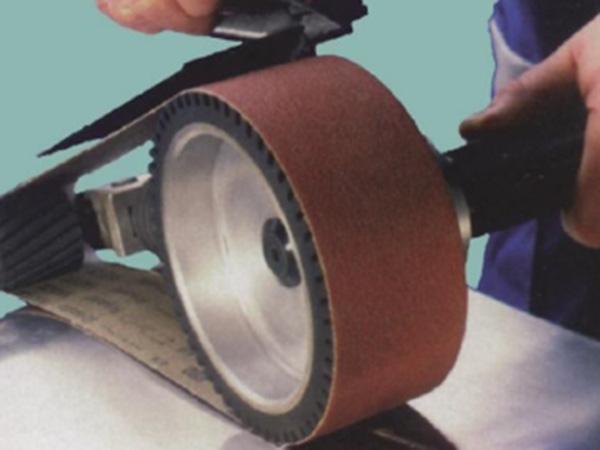

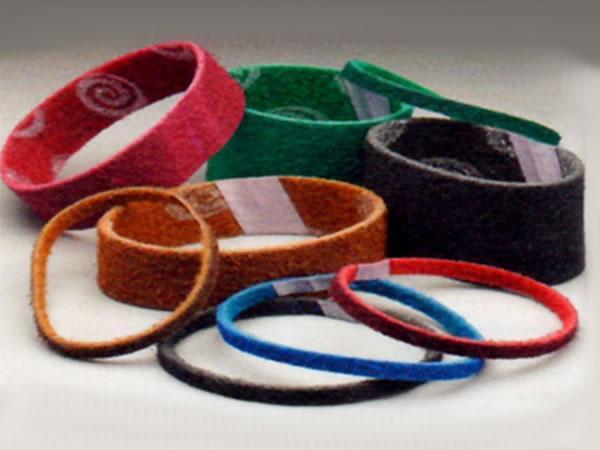

Joysun portable surface finishing belts are made from premium aluminum oxide abrasive grains. Their chief function is for use with light and heavy-duty portable sanding belt machines. They are suitable for general purpose grinding, blending, finishing and polishing for various steel types, aluminum alloys, brass, copper, zinc bronze, titanium, plastics, wood, etc. The belts listed are popular stock sizes, but we also provide additional sizes and specifications as requested and we are always willing to customize for clients with unique needs.
Product Code | JAC-K766RM | JAC-K767KM | JAC-K768SM |
Abrasive Grains | Aluminum Oxide | Aluminum Oxide | Aluminum Oxide |
Backing Cloth Type | Scrimmed Back Non-Woven | Scrimmed Back Non-Woven | Scrimmed Back Non-Woven |
Abrasive Belt Joint Type | Butt joint with splicing tape | Butt joint with splicing tape | Butt joint with splicing tape |
SIZE | SIZE | GRIT | STD | PART # | PART # | PART # |
( Width x Length ) | ( Width x Length) | PACK | ||||
1" x 18" | 25.4 x 457 mm | CRS | 10 | 76806 | 76807 | 76808 |
| MED | 10 | 76819 | 76810 | 76811 | |
FIN | 10 | 76822 | 76823 | 76824 | ||
VFN | 10 | 76835 | 76836 | 76837 | ||
SFN | 10 | 76848 | 76849 | 76840 | ||
1" x 21" | 25.4 x 533 mm | CRS | 10 | 76851 | 76852 | 76853 |
MED | 10 | 76864 | 76865 | 76866 | ||
FIN | 10 | 76877 | 76878 | 76879 | ||
VFN | 10 | 76880 | 76881 | 76882 | ||
SFN | 10 | 76893 | 76894 | 76895 | ||
1" x 24" | 25.4 x 610 mm | CRS | 10 | 76906 | 76907 | 76908 |
MED | 10 | 76919 | 76910 | 76911 | ||
FIN | 10 | 76922 | 76923 | 76924 | ||
VFN | 10 | 76935 | 76936 | 76937 | ||
SFN | 10 | 76948 | 76949 | 76940 | ||
3" x 18" | 75 x 457 mm | CRS | 10 | 76951 | 76952 | 76953 |
MED | 10 | 76964 | 76965 | 76966 | ||
FIN | 10 | 76977 | 76978 | 76979 | ||
VFN | 10 | 76980 | 76981 | 76982 | ||
SFN | 10 | 76993 | 76994 | 76995 | ||
3" x 21" | 75 x 533 mm | CRS | 10 | 77006 | 77007 | 77008 |
MED | 10 | 77019 | 77010 | 77011 | ||
FIN | 10 | 77022 | 77023 | 77024 | ||
VFN | 10 | 77035 | 77036 | 77037 | ||
SFN | 10 | 77048 | 77049 | 77140 | ||
3" x 24" | 75 x 610 mm | CRS | 10 | 77151 | 77152 | 77153 |
MED | 10 | 77164 | 77165 | 77166 | ||
FIN | 10 | 77177 | 77178 | 77179 | ||
VFN | 10 | 77180 | 77181 | 77182 | ||
SFN | 10 | 77193 | 77194 | 77195 | ||
4" x 24" | 100 x 610 mm | CRS | 10 | 77206 | 77207 | 77208 |
MED | 10 | 77219 | 77210 | 77211 | ||
FIN | 10 | 77222 | 77223 | 77224 | ||
VFN | 10 | 77235 | 77236 | 77237 | ||
SFN | 10 | 77248 | 77249 | 77240 |
