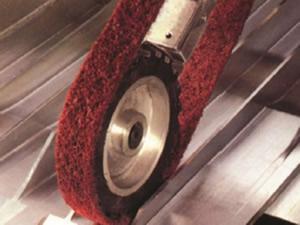

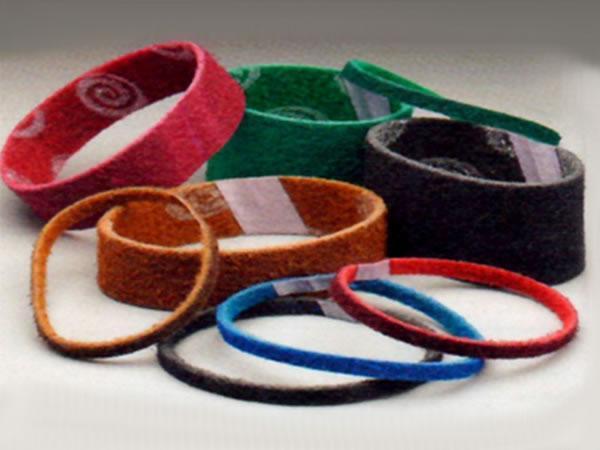

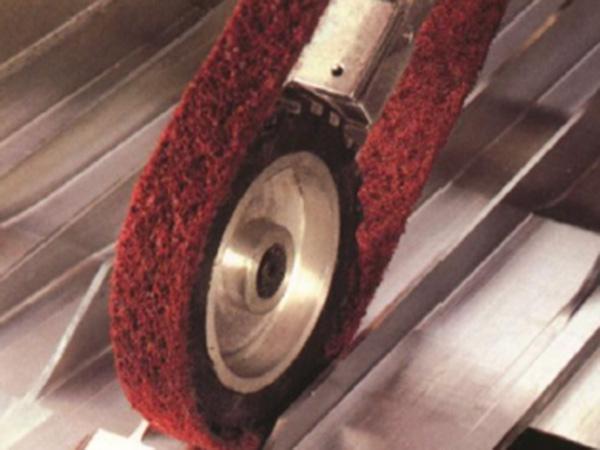

Joysun benchstand surface finish belts are used with stationary belt grinders for light and moderate duty grinding applications. These belts are excellent for working with platen or contact wheels for light to moderate jobs for light stock removal, sanding, blending and finishing operations. The belts are designed to process stainless steel, cast iron, wood, plastics, fiberglass, aluminum alloys and many other materials for standard grinding to contoured shaping and surfacing.
Product Code | JAC-K766RM | JAC-K767KM | JAC-K768SM |
Abrasive Grains | Aluminum Oxide | Aluminum Oxide | Aluminum Oxide |
Backing Cloth Type | Scrimmed Back Non-Woven | Scrimmed Back Non-Woven | Scrimmed Back Non-Woven |
Abrasive Belt Joint Type | Butt joint with splicing tape | Butt joint with splicing tape | Butt joint with splicing tape |
SIZE | SIZE | GRIT | STD | PART # | PART # | PART # |
( Width x Length ) | ( Width x Length) | PACK | ||||
1" x 132" | 25.4 x 3353 mm | CRS | 10 | 78051 | 78052 | 78053 |
MED | 10 | 78064 | 78065 | 78066 | ||
FIN | 10 | 78077 | 78078 | 78079 | ||
VFN | 10 | 78080 | 78081 | 78082 | ||
SFN | 10 | 78093 | 78094 | 78095 | ||
2" x 132" | 50.8 x 3353 mm | CRS | 10 | 78106 | 78107 | 78108 |
MED | 10 | 78119 | 78110 | 78111 | ||
FIN | 10 | 78122 | 78123 | 78124 | ||
VFN | 10 | 78135 | 78136 | 78137 | ||
SFN | 10 | 78148 | 78149 | 78140 | ||
3" x 118" | 76.2 x 3000 mm | CRS | 10 | 78151 | 78152 | 78153 |
MED | 10 | 78164 | 78165 | 78166 | ||
FIN | 10 | 78177 | 78178 | 78179 | ||
VFN | 10 | 78180 | 78181 | 78182 | ||
SFN | 10 | 78193 | 78194 | 78195 | ||
3" x 132" | 76.2 x 3353 mm | CRS | 10 | 78206 | 78207 | 78208 |
MED | 10 | 78219 | 78210 | 78211 | ||
FIN | 10 | 78222 | 78223 | 78224 | ||
VFN | 10 | 78235 | 78236 | 78237 | ||
SFN | 10 | 78248 | 78249 | 78240 | ||
4" x 132" | 100 x 3353 mm | CRS | 10 | 78251 | 78252 | 78253 |
MED | 10 | 78264 | 78265 | 78266 | ||
FIN | 10 | 78277 | 78278 | 78279 | ||
VFN | 10 | 78280 | 78281 | 78282 | ||
SFN | 10 | 78293 | 78294 | 78295 | ||
4" x 168" | 100 x 4270 mm | CRS | 10 | 78306 | 78307 | 78308 |
MED | 10 | 78319 | 78310 | 78311 | ||
FIN | 10 | 78322 | 78323 | 78324 | ||
VFN | 10 | 78335 | 78336 | 78337 | ||
SFN | 10 | 78348 | 78349 | 78440 | ||
6" x 132" | 150 x 3353 mm | CRS | 10 | 78451 | 78452 | 78453 |
MED | 10 | 78464 | 78465 | 78466 | ||
FIN | 10 | 78477 | 78478 | 78479 | ||
VFN | 10 | 78480 | 78481 | 78482 | ||
SFN | 10 | 78493 | 78494 | 78495 |
