Depressed Center Grinding Wheels for All Ferrous Metals

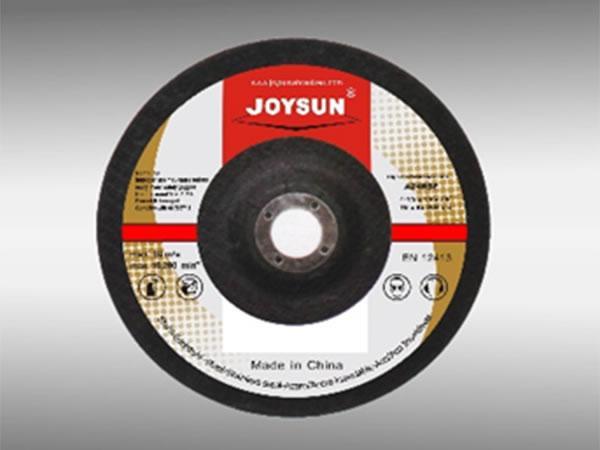

Joysun depressed center grinding wheels designed for all ferrous metals are constructed by using a resin bonded high strength configuration that is compatible with portable angle grinders to achieve the outstanding finishing effects on all sorts of ferrous metals and other materials.

  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals

Portable angle grinders
For all ferrous metals, steels, Structural steel, Rebar, Pipe, Bar stock, Welds in single grit

Availability
Product Code JAC-K616GT JAC-K616GG JAC-K616GD
Abrasive Grains Aluminum Oxide Aluminum Oxide Aluminum Oxide
Workpiece Materials All Metals All Metals All Metals
SIZE SIZE GRADE SHAPE MAX STD PROFESSIONAL INDUSTRIAL DIY
( D x T x H ) ( D x T x H ) RPM PACK PART # PART # PART #
4" x 1/4" x 5/8" 100.0 x 6.35 x 16.00 mm A-24 Type-27 15,200 25 61601 61602 61603
4-1/2" x 1/4" x 7/8" 115.0 x 6.35 x 22.23 mm A-24 Type-27 13,300 25 61614 61615 61616
4-1/2" x 1/4" x 5/8-11 115.0 x 6.35 x Hub mm A-24 Type-27 13,300 25 61627 61628 61629
5" x 1/4" x 7/8" 125.0 x 6.35 x 22.23 mm A-24 Type-27 12,200 25 61630 61631 61632
5" x 1/4" x 5/8-11 125.0 x 6.35 x Hub mm A-24 Type-27 12,200 25 61643 61644 61645
6" x 1/4" x 7/8" 150.0 x 6.35 x 22.23 mm A-24 Type-27 10,200 25 61656 61657 61658
6" x 1/4" x 5/8-11 150.0 x 6.35 x Hub mm A-24 Type-27 10,200 25 61669 61660 61661
7" x 1/4" x 7/8" 178.0 x 6.35 x 22.23 mm A-24 Type-27 8,500 25 61672 61673 61674
7" x 1/4" x 5/8-11 178.0 x 6.35 x Hub mm A-24 Type-27 8,500 25 61685 61686 61687
9" x 1/4" x 7/8" 230.0 x 6.35 x 22.23 mm A-24 Type-27 6,500 25 61698 61699 61690
9" x 1/4" x 5/8-11 230.0 x 6.35 x Hub mm A-24 Type-27 6,500 25 61701 61702 61703
  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals
  • Depressed Center Grinding Wheels for All Ferrous Metals

Portable angle grinders
For all ferrous metals, steels, Structural steel, Rebar, Pipe, Bar stock, Welds in single grit

Availability
Product Code JAC-K626GT JAC-K626GG JAC-K626GD
Abrasive Grains Aluminum Oxide Aluminum Oxide Aluminum Oxide
Workpiece Materials All Metals All Metals All Metals
SIZE SIZE GRADE SHAPE MAX STD PROFESSIONAL INDUSTRIAL DIY
( D x T x H ) ( D x T x H ) RPM PACK PART # PART # PART #
4" x 1/4" x 5/8" 100.0 x 6.35 x 16.00 mm A-20 Type-27 15,200 25 62601 62602 62603
4-1/2" x 1/4" x 7/8" 115.0 x 6.35 x 22.23 mm A-20 Type-27 13,300 25 62614 62615 62616
4-1/2" x 1/4" x 5/8-11 115.0 x 6.35 x Hub mm A-20 Type-27 13,300 25 62627 62628 62629
5" x 1/4" x 7/8" 125.0 x 6.35 x 22.23 mm A-20 Type-27 12,200 25 62630 62631 62632
5" x 1/4" x 5/8-11 125.0 x 6.35 x Hub mm A-20 Type-27 12,200 25 62643 62644 62645
6" x 1/4" x 7/8" 150.0 x 6.35 x 22.23 mm A-20 Type-27 10,200 25 62656 62657 62658
6" x 1/4" x 5/8-11 150.0 x 6.35 x Hub mm A-20 Type-27 10,200 25 62669 62660 62661
7" x 1/4" x 7/8" 178.0 x 6.35 x 22.23 mm A-20 Type-27 8,500 25 62672 62673 62674
7" x 1/4" x 5/8-11 178.0 x 6.35 x Hub mm A-20 Type-27 8,500 25 62685 62686 62687
9" x 1/4" x 7/8" 230.0 x 6.35 x 22.23 mm A-20 Type-27 6,500 25 62698 62699 62690
9" x 1/4" x 5/8-11 230.0 x 6.35 x Hub mm A-20 Type-27 6,500 25 62701 62702 62703
Depressed Center Grinding Wheels for All Ferrous Metals
