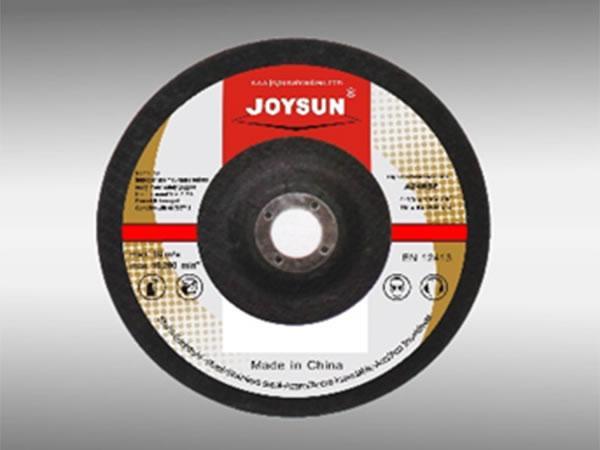

Depressed Center Wheels for Non-Ferrous Metals

Joysun depressed center wheels for non-ferrous metals feature a resin bonded structure that is an optimal solution for high speed grinding operations for non-ferrous metals. These products are compatible with portable angle grinders for nearly limitless applications.

  • Depressed Center Wheels for Non-Ferrous Metals
  • Depressed Center Wheels for Non-Ferrous Metals
  • Depressed Center Wheels for Non-Ferrous Metals
  • Depressed Center Wheels for Non-Ferrous Metals

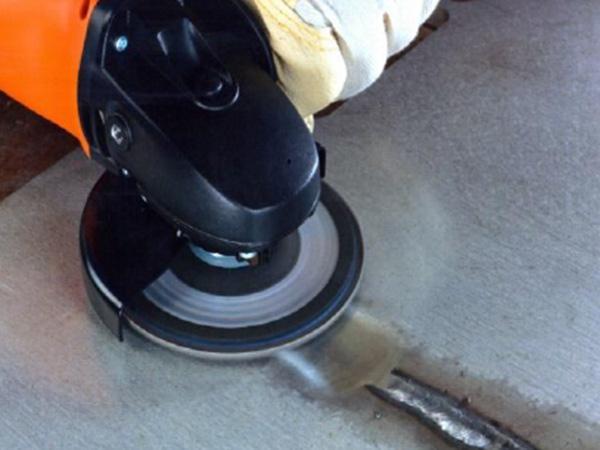

Portable angle grinders
For Stainless steel, Steel, Cast iron, High alloys, Welds in single grit

Availability
Product Code JAC-K646GT JAC-K646GG JAC-K646GD
Abrasive Grains Aluminum Oxide Aluminum Oxide Aluminum Oxide
Workpiece Materials Non-Ferrous Metals Non-Ferrous Metals Non-Ferrous Metals
SIZE SIZE GRADE SHAPE MAX STD PROFESSIONAL INDUSTRIAL DIY
( D x T x H ) ( D x T x H ) RPM PACK PART # PART # PART #
4" x 1/4" x 5/8" 100.0 x 6.35 x 16.00 mm A-24 Type-27 15,200 25 64601 64602 64603
4-1/2" x 1/4" x 7/8" 115.0 x 6.35 x 22.23 mm A-24 Type-27 13,300 25 64614 64615 64616
4-1/2" x 1/4" x 5/8-11 115.0 x 6.35 x Hub mm A-24 Type-27 13,300 25 64627 64628 64629
5" x 1/4" x 7/8" 125.0 x 6.35 x 22.23 mm A-24 Type-27 12,200 25 64630 64631 64632
5" x 1/4" x 5/8-11 125.0 x 6.35 x Hub mm A-24 Type-27 12,200 25 64643 64644 64645
6" x 1/4" x 7/8" 150.0 x 6.35 x 22.23 mm A-24 Type-27 10,200 25 64656 64657 64658
6" x 1/4" x 5/8-11 150.0 x 6.35 x Hub mm A-24 Type-27 10,200 25 64669 64660 64661
7" x 1/4" x 7/8" 178.0 x 6.35 x 22.23 mm A-24 Type-27 8,500 25 64672 64673 64674
7" x 1/4" x 5/8-11 178.0 x 6.35 x Hub mm A-24 Type-27 8,500 25 64685 64686 64687
9" x 1/4" x 7/8" 230.0 x 6.35 x 22.23 mm A-24 Type-27 6,500 25 64698 64699 64690
9" x 1/4" x 5/8-11 230.0 x 6.35 x Hub mm A-24 Type-27 6,500 25 64701 64702 64703
Depressed Center Wheels for Non-Ferrous Metals
