Laser Welded Diamond Saw Blades

Joysun laser welded diamond saw blades are high performance cutting products that are designed for cutting a variety of masonry materials, such as concrete, blocks, slate, natural stone, marble, glazed tiles and many more.

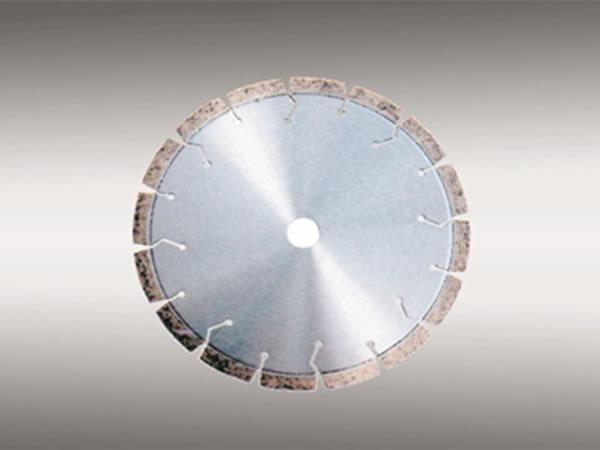

General Purpose Laser Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE (Diameter x Arbor) SIZE (Diameter x Arbor) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
4"x7/8" - 20 105 x 22.23-20.0 mm 15,000 2.0 x 8/10 mm 8 10 21001
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 2.0 x 8/10 mm 9 10 21014
5"x7/8"- 20 125 x 22.23-20.0 mm 12,000 2.2 x 8/10 mm 10 10 21027
6"x7/8" 150 x 22.23 mm 10,100 2.2 x 8/10 mm 12 10 21030
7"x 7/8" 180 x 22.23 mm 8,750 2.4 x 8/10 mm 13 10 21043
8"x 7/8" 200 x 22.23 mm 7,650 2.4 x 8/10 mm 14 10 21056
9"x 7/8" 230 x 22.23mm 6,600 2.6 x 8/10 mm 16 10 21069
10"x 1" 250 x 25.40 mm 6,100 2.6 x 8/10/12/14 mm 17-18 10 21072
12"x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21085
14"x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21098
16"x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 21101
18"x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 21114
20"x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 21127
22"x 2" - 1" 550 x 50.00 - 25.40 mm 2,800 4.0 x 8/10/12/14 mm 38 10 21130
24"x 2" - 1" 600 x 50.00 - 25.40 mm 2,600 4.2 x 8/10/12/14 mm 42 10 21143

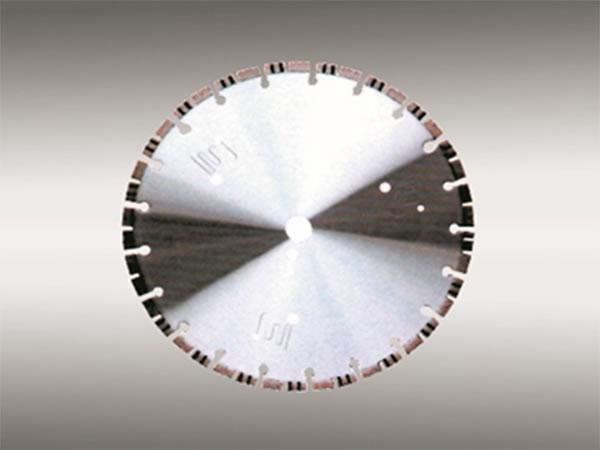

Turbo Segmented Laser Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12" x2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21156
14"x2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21169
16"x2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 21172
18"x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 21185
Laser Saw Blades for Wall Cutting
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12"x2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21198
14"x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21201
16"x2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 61211
18"x2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 61224
Laser Saw Blades for Asphalt Cut
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12"x2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 61237
14"x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 61240
16"x2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 61253
18"x2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 61266
20"x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 61279
Laser Deep Segmented Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12"x2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 61282
14"x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 61295
16"x2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 61308
18"x2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 61411
20"x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 61424
22"x2" - 1" 550 x 50.00 - 25.40 mm 2,800 4.0 x 8/10/12/14 mm 38 10 61437
24"x2" - 1" 600 x 50.00 - 25.40 mm 2,600 4.2 x 8/10/12/14 mm 42 10 61440
Laser Saw Blades for Concrete Cut
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 2.0 x 8/10 mm 8 10 61453
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 2.0 x 8/10 mm 9 10 61466
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 2.2 x 8/10 mm 10 10 61479
6" x 7/8" 150 x 22.23 mm 10,185 2.2 x 8/10 mm 12 10 61482
7" x 7/8" 180 x 22.23 mm 8,730 2.4 x 8/10 mm 13 10 61495
8" x 7/8" 200 x 22.23 mm 7,640 2.4 x 8/10 mm 14 10 61508
9" x 7/8" 230 x 22.23mm 6,600 2.6 x 8/10 mm 16 10 61511
10" x 1" 250 x 25.40 mm 6,100 2.6 x 8/10/12/14 mm 17-18 10 21527
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21530
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21543
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 21556
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 21569
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 21572
22" x 2" - 1" 550 x 50.00 - 25.40 mm 2,800 4.0 x 8/10/12/14 mm 38 10 21585
24" x 2" - 1" 600 x 50.00 - 25.40 mm 2,600 4.2 x 8/10/12/14 mm 42 10 21598
Laser Weld Free Cutting Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
10" x 1" 250 x 25.40 mm 6,100 2.6 x 8/10/12/14 mm 17-18 10 21601
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21614
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21627
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 21630
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 21643
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 21656
Turbo Segmented Blade for Concrete
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 2.0 x 8/10 mm 8 10 21669
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 2.0 x 8/10 mm 9 10 21672
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 2.2 x 8/10 mm 10 10 21685
6" x 7/8" 150 x 22.23 mm 10,185 2.2 x 8/10 mm 10 10 21698
7" x 7/8" 180 x 22.23 mm 8,730 2.4 x 8/10 mm 13 10 21701
8" x 7/8" 200 x 22.23 mm 7,640 2.4 x 8/10 mm 14 10 21714
9" x 7/8" 230 x 22.23mm 6,600 2.6 x 8/10 mm 16 10 21727
10" x 1" 250 x 25.40 mm 6,100 2.6 x 8/10/12/14 mm 17-18 10 21730
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21743
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 21756
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 21769
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 21872
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 21885
22" x 2" - 1" 550 x 50.00 - 25.40 mm 2,800 4.0 x 8/10/12/14 mm 38 10 21898
24" x 2" - 1" 600 x 50.00 - 25.40 mm 2,600 4.2 x 8/10/12/14 mm 42 10 21901

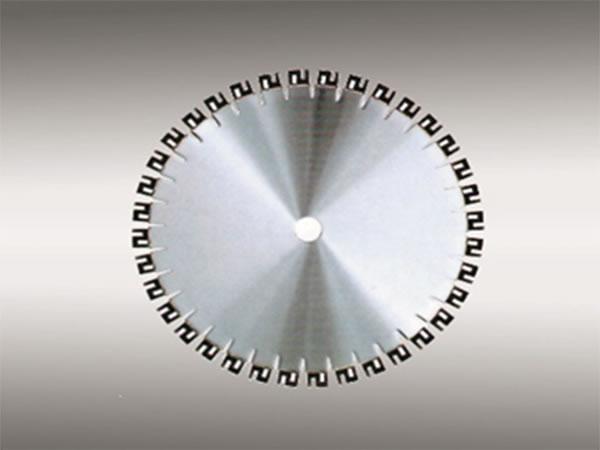

S-Shape Segment Blades for Concrete
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 2.0 x 8/10 mm 8 10 21914
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 2.0 x 8/10 mm 9 10 21927
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 2.2 x 8/10 mm 10 10 21930
6" x 7/8" 150 x 22.23 mm 10,185 2.2 x 8/10 mm 12 10 21943
7" x 7/8" 180 x 22.23 mm 8,730 2.4 x 8/10 mm 13 10 21956
8" x 7/8" 200 x 22.23 mm 7,640 2.4 x 8/10 mm 14 10 21969
9" x 7/8" 230 x 22.23mm 6,600 2.6 x 8/10 mm 16 10 21972
10" x 1" 250 x 25.40 mm 6,100 2.6 x 8/10/12/14 mm 17-18 10 21985
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 21998
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 22001
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 22014
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 22027
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 22030
22" x 2" - 1" 550 x 50.00 - 25.40 mm 2,800 4.0 x 8/10/12/14 mm 38 10 22043
24" x 2" - 1" 600 x 50.00 - 25.40 mm 2,600 4.2 x 8/10/12/14 mm 42 10 22056
Laser Welded Tile - Cut Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 22069
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 22072
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 22085
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 22098

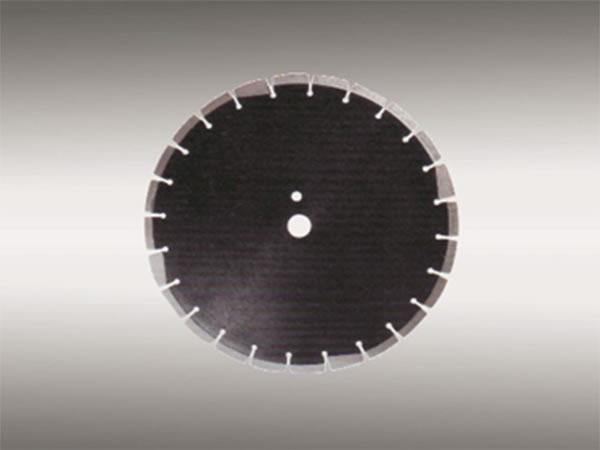

Laser Welded Asphalt Saw Blades
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 22101
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 22114
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 22127
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 22130
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 22143
Laser Reinforced Concrete Saw Blade
  • Laser Welded Diamond Saw Blades
  • Laser Welded Diamond Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Size of Segment Quantity of Segment STD PACK PART #
12" x 2" - 1" 300 x 50.00 - 25.40 mm 5,100 3.0 x 8/10/12/14 mm 20-21 10 22156
14" x 2" - 1" 350 x 50.00 - 25.40 mm 4,400 3.2 x 8/10/12/14 mm 24 10 22169
16" x 2" - 1" 400 x 50.00 - 25.40 mm 3,900 3.4 x 8/10/12/14 mm 28 10 22172
18" x 2" - 1" 450 x 50.00 - 25.40 mm 3,400 3.6 x 8/10/12/14 mm 32 10 22185
20" x 2" - 1" 500 x 50.00 - 25.30 mm 3,100 3.8 x 8/10/12/14 mm 36 10 22198
