Hot Pressed Sintered Saw Blades

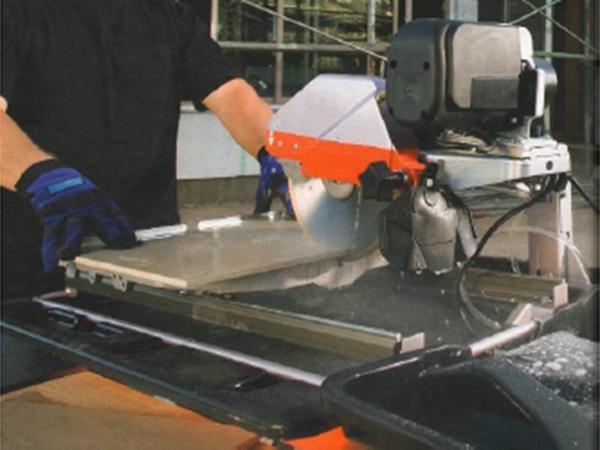

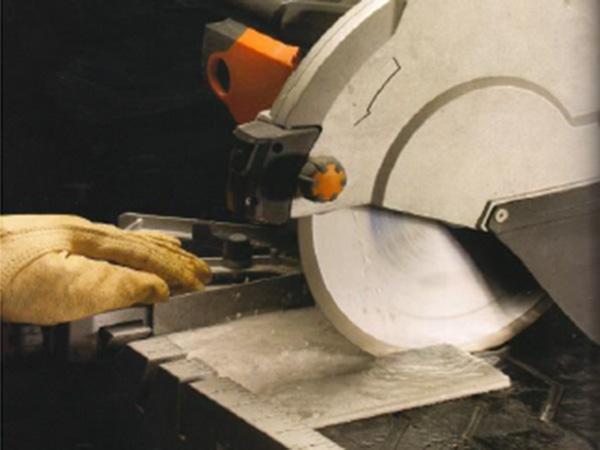

Joysun hot pressed sintered saw blades are high performance cutting tools which have been specially designed for durability and strength when it comes to cutting masonry materials. This includes, bricks, concrete, ceramic tiles, granite and many more.

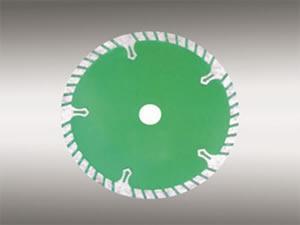

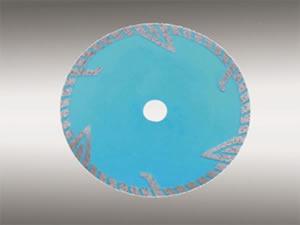

Hot Pressed Protected Fine Turbo Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22556
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22569
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22572
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22585
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22598
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22601
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22614
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 2262
T-Shape Segmented Turbo Saw Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22730
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22743
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22756
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22769
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22772
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22785
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22798
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 22801
Knife Shape Segment Turbo Saw Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22814
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22827
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22830
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22843
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22856
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22869
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22872
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 22885

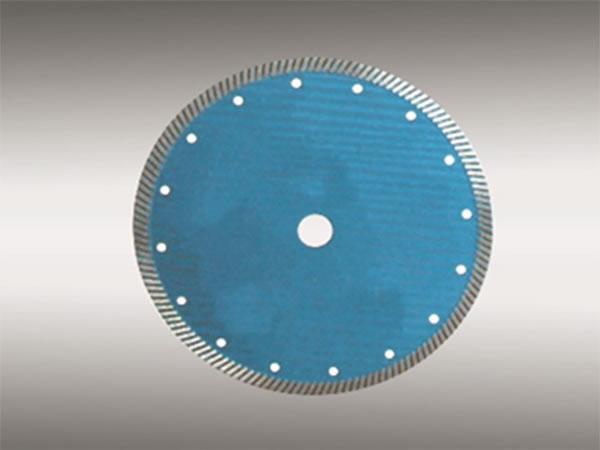

Super Thin Fine Segments Turbo Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 10 mm 2.1 mm 10 22898
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 10 mm 2.2 mm 10 22901
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 10 mm 2.4 mm 10 22914
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 10 mm 2.6 mm 10 22927
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 10 mm 2.6 mm 10 22930
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 10 mm 2.6 mm 10 22943
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 10 mm 2.8 mm 10 22956
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 10 mm 3.0 mm 10 22969
12" x 1" - 20 300 x 25.40-20.0 mm 5,100 10 mm 3.6 mm 10 22972
14" x 1" - 20 350 x 25.40-20.0 mm 4,400 10 mm 3.6 mm 10 22985
Turbo Saw Blades with Circular Protected Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7/10 mm 2.1 mm 10 22998
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7/10 mm 2.2 mm 10 23001
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7/10 mm 2.4 mm 10 23014
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7/10 mm 2.6 mm 10 23027
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7/10 mm 2.6 mm 10 23030
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7/10 mm 2.6 mm 10 23043
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7/10 mm 2.8 mm 10 23056
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7/10 mm 3.0 mm 10 23069
12" x 1" - 20 300 x 25.40-20.0 mm 5,100 8/10 mm 3.6 mm 10 23172
14" x 1" - 20 350 x 25.40-20.0 mm 4,400 8/10 mm 3.6 mm 10 23185
Turbo Saw Blade with Fan-Type Segment
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 8/10 mm 2.1 mm 10 23198
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 8/10 mm 2.2 mm 10 23201
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 8/10 mm 2.4 mm 10 23214
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 8/10 mm 2.6 mm 10 23227
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 8/10 mm 2.6 mm 10 23230
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 8/10 mm 2.6 mm 10 23230
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 8/10 mm 2.8 mm 10 23256
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 8/10 mm 3.0 mm 10 23269
12" x 1" - 20 300 x 25.40-20.0 mm 5,100 8/10 mm 3.6 mm 10 23272
14" x 1" - 20 350 x 25.40-20.0 mm 4,400 8/10 mm 3.6 mm 10 23285
Turbo Saw Blades with Broad Segment
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7/12 mm 2.1 mm 10 23298
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7/12 mm 2.2 mm 10 23301
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7/12 mm 2.4 mm 10 23314
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7/12 mm 2.6 mm 10 23327
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7/12 mm 2.6 mm 10 23330
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7/12 mm 2.6 mm 10 23343
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7/12 mm 2.8 mm 10 23356
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7/12 mm 3.0 mm 10 23369
12" x 1" - 20 300 x 25.40-20.0 mm 5,100 8/12 mm 3.6 mm 10 23372
14" x 1" - 20 350 x 25.40-20.0 mm 4,400 8/12 mm 3.6 mm 10 23385
Turbo Saw Blade with Standard Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 8.0 mm 2.0 mm 10 23398
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 8.0 mm 2.2 mm 10 23401
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 8.0 mm 2.2 mm 10 23414
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 8.0 mm 2.3 mm 10 23427
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 8.0 mm 2.4 mm 10 23430
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 8.0 mm 2.6 mm 10 23443
Turbo Blade with Slanting Protected Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23456
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23469
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23472
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23485
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23498
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23601
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23614
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23627

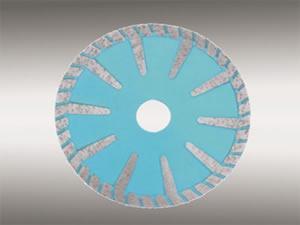

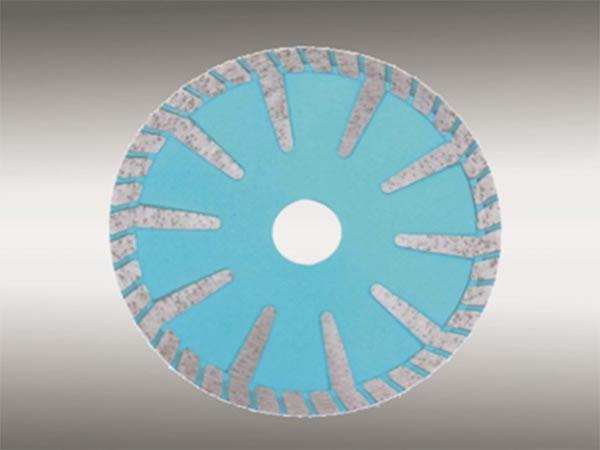

Turbo Saw Blades with Curved Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23630
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23643
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23656
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23669
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23672
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23685
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23698
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23701
Turbo Blades with Crown Shape Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23714
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23727
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23730
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23743
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23756
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23769
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23772
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23785
Turbo Saw Blades with Reinforced Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 20 105 x 22.23-20.0 mm 15,000 7 / 10 mm 2.1 mm 10 23798
4-1/2" x 7/8" - 20 115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.2 mm 10 23801
5" x 7/8" - 20 125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.4 mm 10 23814
6" x 7/8" - 20 150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.6 mm 10 23827
7" x DM-7/8" - 20 180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.6 mm 10 23830
8" x DM-7/8" - 20 200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.6 mm 10 23843
9" x DM-7/8" - 20 230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.8 mm 10 23856
10" x 1" - 20 250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23869
12" x 1" - 20 300 x 25.40-20.0 mm 5,100 8 / 10 mm 3.6 mm 10 23872
14" x 1" - 20 350 x 25.40-20.0 mm 4,400 8 / 10 mm 3.6 mm 10 23885
