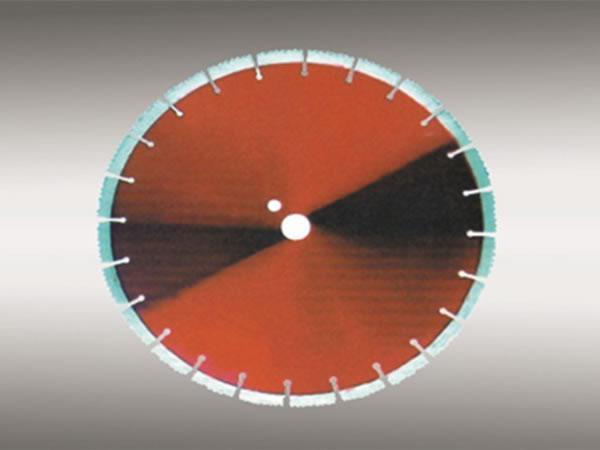

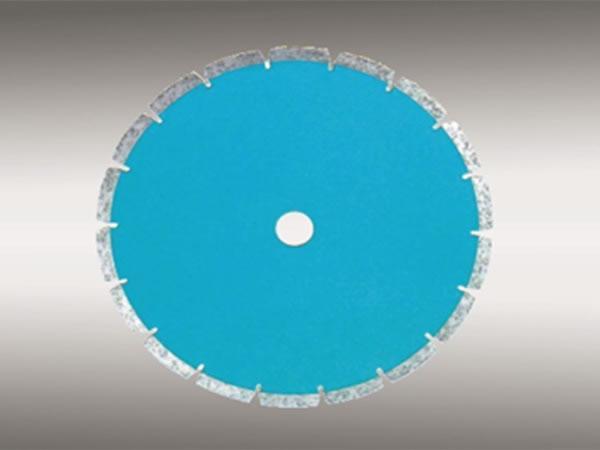

Silver Brazed Diamond Saw Blades

Joysun silver brazed diamond saw blade is a high performance cutting tool constructed with great strength and durability for high speed cutting in masonry applications.

Silver Brazed Silent Saw Blades
  • Silver Brazed Diamond Saw Blades
  • Silver Brazed Diamond Saw Blades

Machine type: suitabel for Stationary Saw
Workingpiece: professional dry & wet saw Blades for Marble, granite, concrete, blocks, medium-hard building bricks, paving stabs, concrete, masonry and other medium hard materials

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
10" x 7/8" - 20 250 x 22.23 - 20 mm 6,100 8.0 mm 2..0 mm 10 22301
12" x 7/8" - 20 300 x 22.23 - 20 mm 5,100 8.0 mm 2..2 mm 10 22314
14" x 7/8" - 20 350 x 22.23 - 20 mm 4,400 8.0 mm 2..2 mm 10 22327
16" x 7/8" - 20 400 x 22.23 - 20 mm 3,900 8.0 mm 2..3 mm 10 22330
18" x DM-7/8" - 20 450 x DM22.23 - 20 mm 3,400 8.0 mm 2..4 mm 10 22343
20" x DM-7/8" - 20 500 x DM22.23 - 20 mm 3,100 8.0 mm 2..6 mm 10 22356
Turbo Segmented Laser Saw Blades
  • Silver Brazed Diamond Saw Blades
  • Silver Brazed Diamond Saw Blades

Machine type: suitabel for Stationary Saw
Workingpiece: professional dry & wet saw Blades for Marble, granite, concrete, blocks, medium-hard building bricks, paving stabs, concrete, masonry and other medium hard materials

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
12" x 2" 300 x 50.00 mm 5,100 10/12/15 mm 21 10 22369
14" x 2" 350 x 50.00 mm 4,400 10/12/15 mm 24 10 22372
16" x 2" 400 x 50.00 mm 3,900 10/12/15 mm 28 10 22385
18" x 2" 450 x 50.00 mm 3,400 10/12/15 mm 32 10 22398
20" x 2" 500 x 50.00 mm 3,100 10/12/15/20 mm 30-36 10 22401
22" x 2" 550 x 50.00 mm 2,800 10/12/15/20 mm 32-40 10 22414
24" x 2" 600 x 50.00 mm 2,600 10/12/15/20 mm 36-42 10 22427
26" x 2" 650 x 50.00 mm 2,350 10/12/15/20 mm 40-46 10 22430
28" x 2" 700 x 50.00 mm 2,150 10/12/15/20 mm 42-50 10 22443
32" x 2" 800 x 50.00 mm 1,950 10/12/15/20 mm 46-56 10 22456
36" x 4" 900 x 100.00 mm 1,700 10/12/15 mm 64 10 22469
40" x 4" 1000 x 100.00 mm 1,450 10/12/15 mm 70 10 22472
48" x 4" 1200 x 100.00 mm 1,250 10/12/15 mm 80 10 22485
52" x 4" 1300 x 100.00 mm 1,100 10/12/15 mm 88 10 22498
64" x 4" 1600 x 100.00 mm 800 10/12/15 mm 108 10 22501
72" x 4" 1800 x 100.00 mm 600 10/12/15 mm 118-120 10 22514
80" x 4" 2000 x 100.00 mm 400 10/12/15 mm 126-128 10 22527
86" x 4" 2200 x 100.00 mm 300 10/12/15 mm 132 10 22530
100" x 6" 2500 x 150.00 mm 200 12/20 mm 140 10 22543
Silver Brazed Diamond Saw Blades
