Laser Welded Tuck Point Saw Blades

Joysun laser welded tuck point saw blades are carefully engineered cutting tools that are made for tough applications such as masonry cutting. This high precision blade can perform very clean and smooth cuts through materials such as brick and stone with ease and durability that is unmatched.

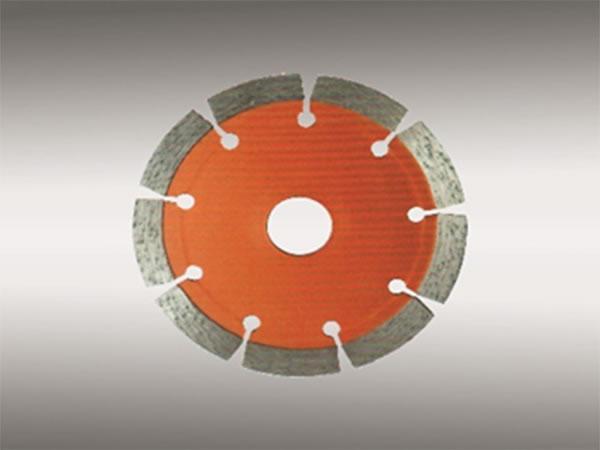

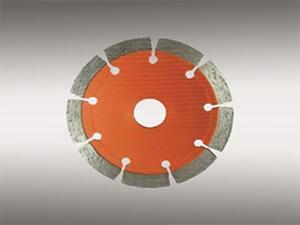

General Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

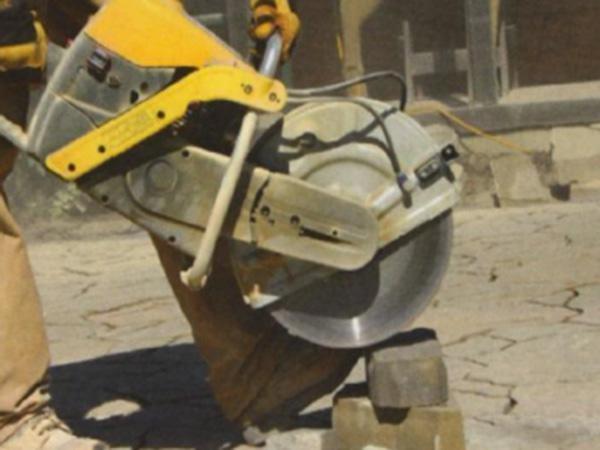

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 8 / 10 mm 0.250" 10 24172
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 8 / 10 mm 0.375" 10 24185
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 8 / 10 mm 0.250" 10 24198
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 8 / 10 mm 0.375" 10 24201
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 8 / 10 mm 0.250" 10 24214
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 8 / 10 mm 0.375" 10 24227
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24230
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24243
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24256
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24269
10" x 1" 250 x 25.40 mm 6,100 10 mm 0.375" 10 24272
12" x 1" 300 x 25.40 mm 5,100 10 mm 0.375" 10 24285
Laser Tuck Point Saw Blades with Bored Core
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 10 mm 0.250" 10 24298
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 10 mm 0.375" 10 24301
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 10 mm 0.250" 10 24314
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 10 mm 0.375" 10 24327
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 10 mm 0.250" 10 24330
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 10 mm 0.375" 10 24343
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24356
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24369
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24472
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24485

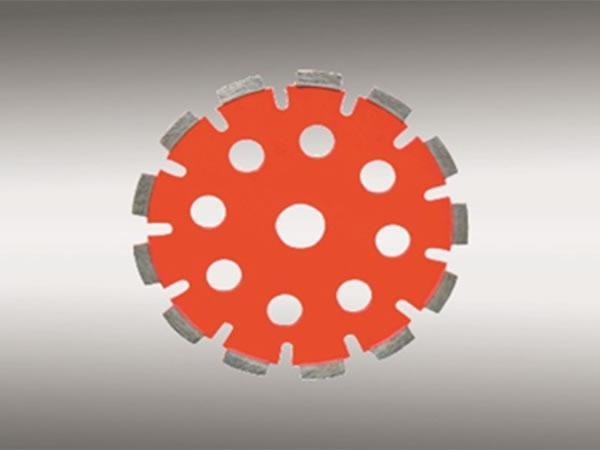

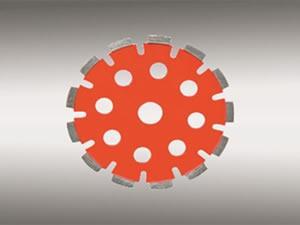

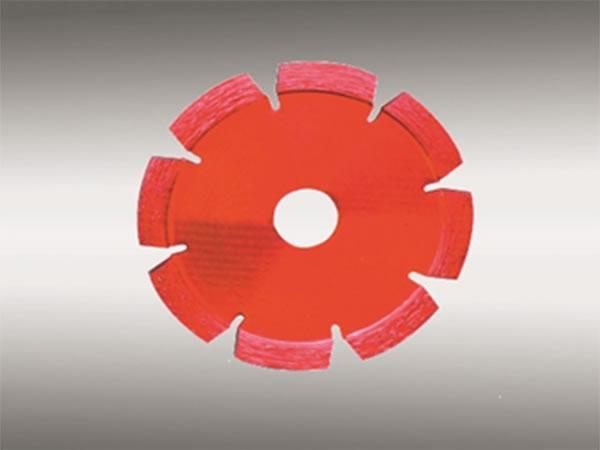

Laser Tuck Point Saw Blades with Crack Chaser
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 10 mm 0.250" 10 24498
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 10 mm 0.375" 10 24501
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 10 mm 0.250" 10 24514
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 10 mm 0.375" 10 24527
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 10 mm 0.250" 10 24530
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 10 mm 0.375" 10 24543
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24556
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24569
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24572
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24585

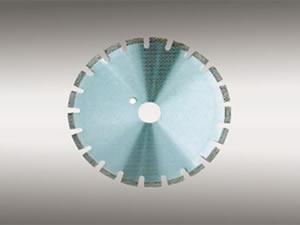

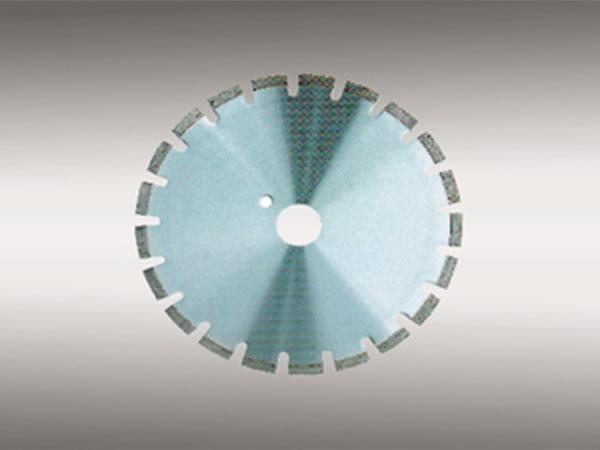

Laser Tuck Point Saw Blades in Large Diameters
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

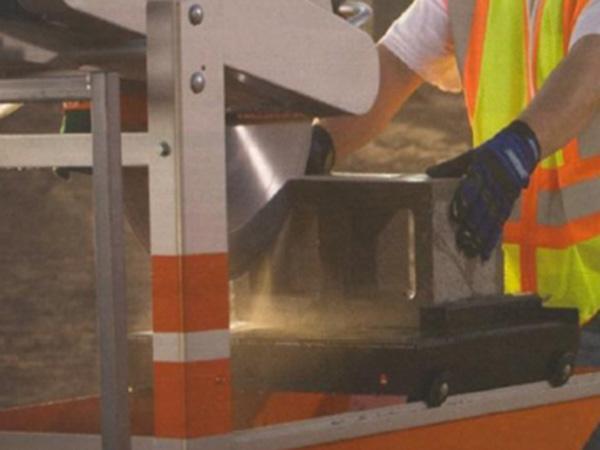

Machine type: suitable for hand-held circular saw, angle grinder, stationary saw
Workingpiece: professional dry blades for ceramic and stone tiles, granite, marble, very hard bricks and other very hard/dense materials, blocks, paving stabs, concrete roof tiles, mortar

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
9" x 7/8" - 5/8" 230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24598
10" x 7/8" - 5/8" 250 x 22.23-16.0 mm 6,100 10 mm 0.375" 10 24601
12" x 7/8" - 5/8" 300 x 22.23-16.0 mm 5,100 10 mm 0.375" 10 24614
14" x 7/8" - 5/8" 350 x 22.23-16.0 mm 4,400 10 mm 0.375" 10 24627

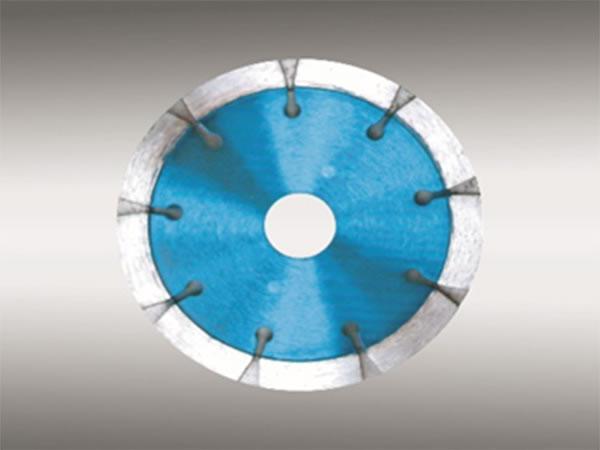

Hot Pressed Assembled Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

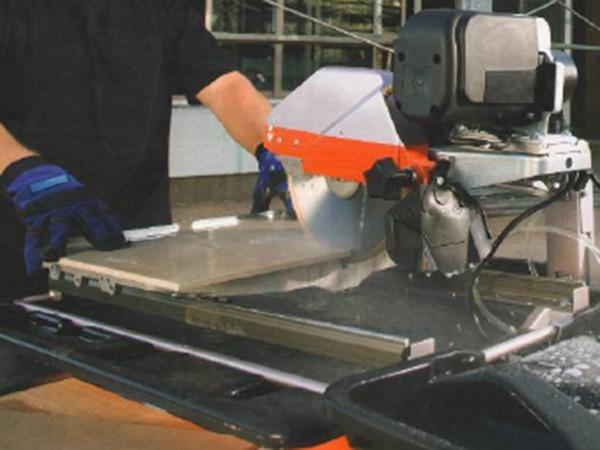

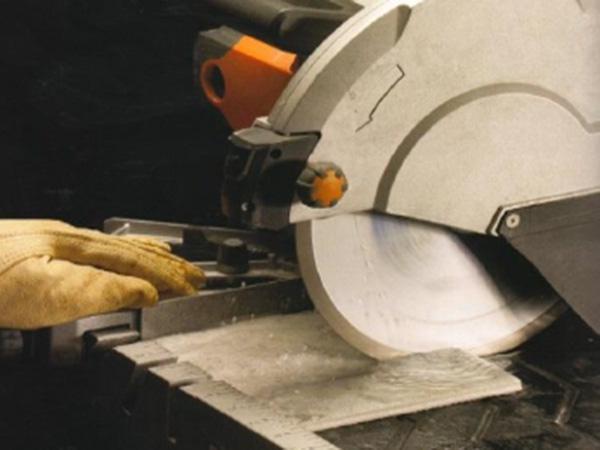

Machine type: suitable for hand-held circular saw, angle grinder, stationary saw
Workingpiece: professional dry blades for ceramic and stone tiles, granite, marble, very hard bricks and other very hard/dense materials, blocks, paving stabs, concrete roof tiles, mortar

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
4" x 7/8" - 5/8" 105 x 22.23-16.0 mm 15,000 10 mm 1.0 mm 10 24630
4-1/2" x 7/8" - 5/8" 115 x 22.23-16.0 mm 13,300 10 mm 1.0 mm 10 24643
5" x 7/8" - 5/8" 125 x 22.23-16.0 mm 12,000 10 mm 1.2 mm 10 24656
7" x 7/8" - 5/8" 180 x 22.23-16.0 mm 8,730 10 mm 1.2 mm 10 24669
Laser Welded Tuck Point Saw Blades
