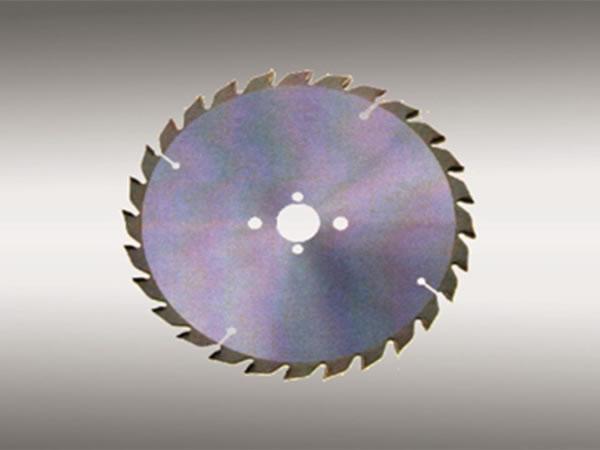

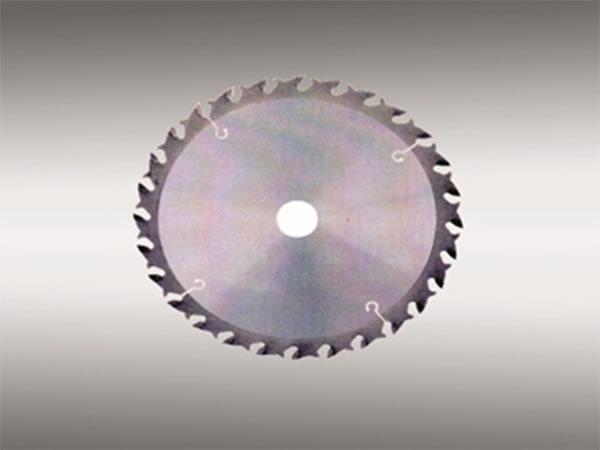

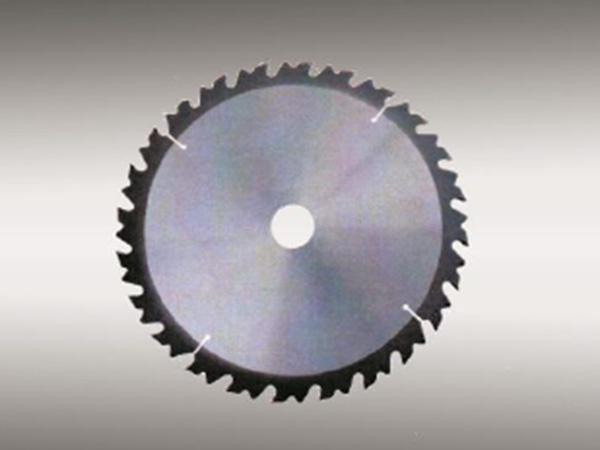

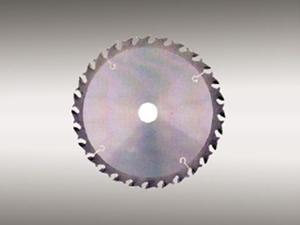

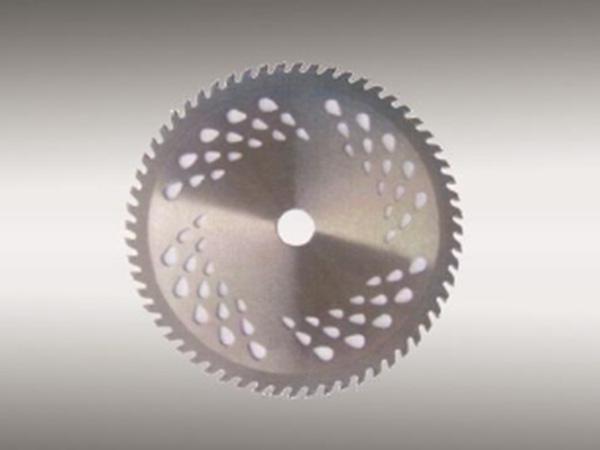

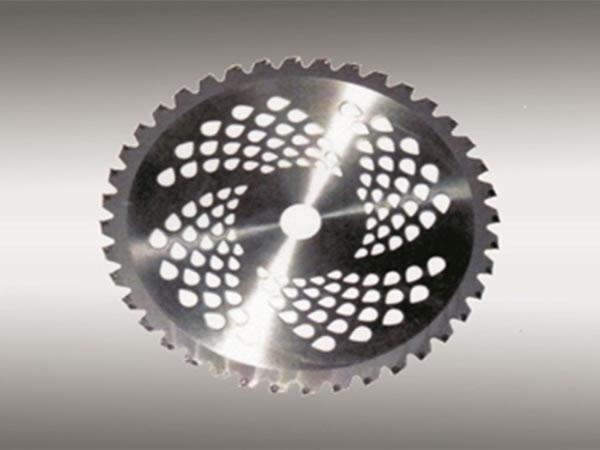

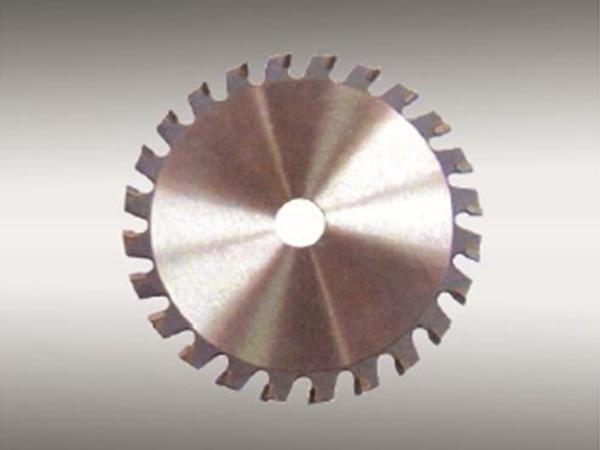

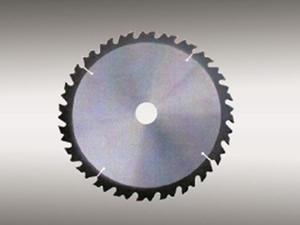

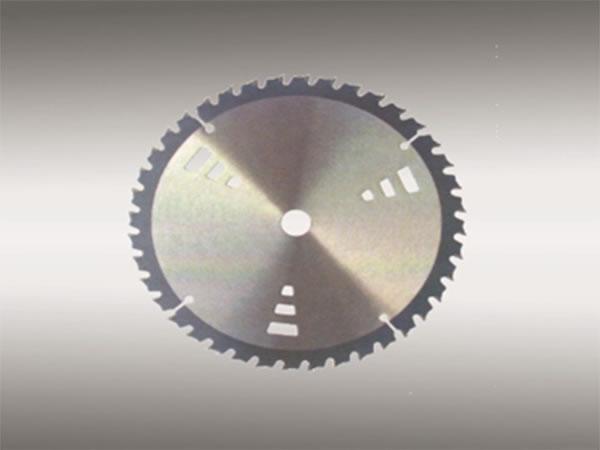

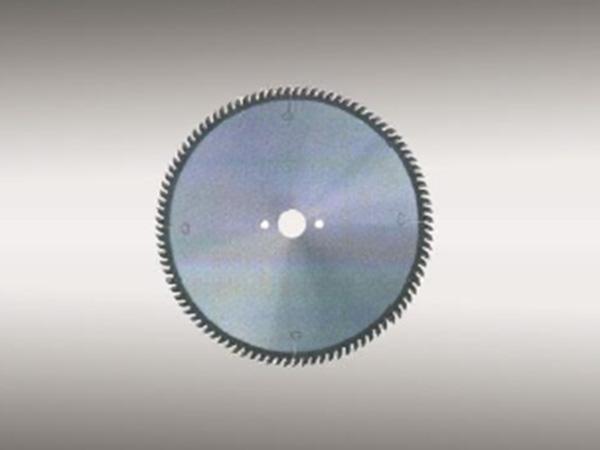

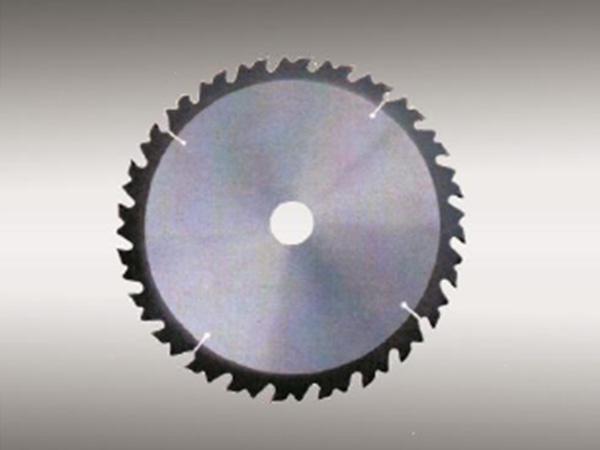

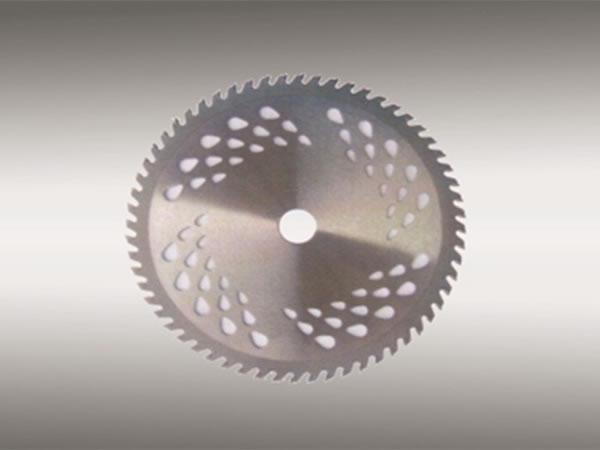

Professional T.C.T Saw Blades

Joysun professional grade TCT saw blades are used in applications such as furniture making and construction for their excellent ability to cut, score, size and groove products such as laminated materials, hard woods, and even metal products.

T.C.T. Saw Blades for Laminated Panels
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 1-3/16" x 0.009" 200 x 30.00 x 2.20 mm 9,000 3.20 mm 48 10 26030
10" x 1-3/16" x 0.009" 250 x 30.00 x 2.20 mm 7,000 3.20 mm 60 10 26043
10" x 1-3/16" x 0.009" 250 x 30.00 x 2.20 mm 7,000 3.20 mm 80 10 26056
12" x 1-3/16" x 0.009" 300 x 30.00 x 2.20 mm 6,000 3.20 mm 60 10 26069
12" x 1-3/16" x 0.009" 300 x 30.00 x 2.20 mm 6,000 3.20 mm 72 10 26072
12" x 1-3/16" x 0.009" 300 x 30.00 x 2.20 mm 6,000 3.20 mm 96 10 26085
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 72 10 26098
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 84 10 26201
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 96 10 26214
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 108 10 26227
16" x 1-3/16" x 0.010" 400 x 30.00 x 2.50 mm 4,000 3.50 mm 80 10 26230
16" x 1-3/16" x 0.010" 400 x 30.00 x 2.50 mm 4,000 3.50 mm 96 10 26243
16" x 1-3/16" x 0.010" 400 x 30.00 x 2.50 mm 4,000 3.50 mm 120 10 26256
T.C.T. Saw Blades for Laminated Panels
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 1-3/16" x 0.009" 200 x 30.00 x 2.20 mm 9,000 3.20 mm 64 10 26269
10" x 1-3/16" x 0.009" 250 x 30.00 x 2.20 mm 7,000 3.20 mm 80 10 26272
12" x 1-3/16" x 0.009" 300 x 30.00 x 2.20 mm 6,000 3.20 mm 72 10 26285
12" x 1-3/16" x 0.009" 300 x 30.00 x 2.20 mm 6,000 3.20 mm 96 10 26298
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 84 10 26301
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 96 10 26314
14" x 1-3/16" x 0.010" 350 x 30.00 x 2.50 mm 5,000 3.50 mm 108 10 26327
16" x 1-3/16" x 0.010" 400 x 30.00 x 2.50 mm 4,000 3.50 mm 96 10 26330
16" x 1-3/16" x 0.010" 400 x 30.00 x 2.50 mm 4,000 3.50 mm 120 10 26343

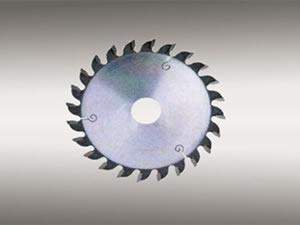

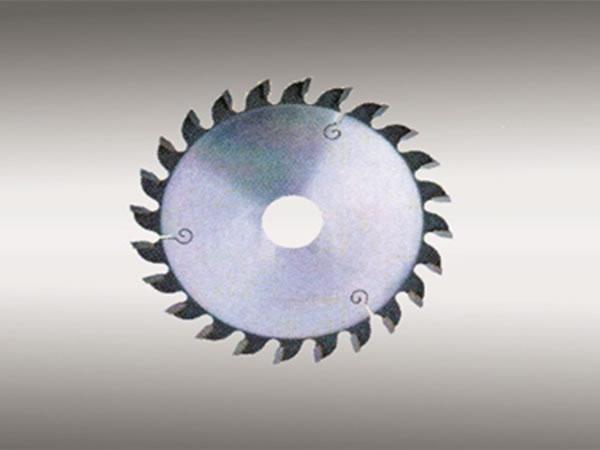

T.C.T. Adjustable Saw Blade to Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
3-3/16" x 20.0 x 2.0 mm 80 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 10+10 10 26356
4" x 20.0 x 2.0 mm 100 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26369
4" x 22.0 x 2.0 mm 100 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26372
4.8" x 20.0 x 2.0 mm 120 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26385
4.8" x 22.0 x 2.0 mm 120 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26398
5" x 20.0 x 2.0 mm 127 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26401
5" x 22.0 x 2.0 mm 127 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26414
6-3/8" x 20.0 x 2.5 mm 160 x 20.00 x 2.5 mm 10,000 4.00-5.20 mm 20+20 10 26427
6-3/8" x 20.0 x 2.5 mm 160 x 60.00 x 2.5 mm 10,000 4.00-5.20 mm 20+20 10 26430
7" x 20.0 x 2.5 mm 180 x 20.00 x 2.5 mm 9,600 4.00-5.20 mm 20+20 10 26443
7" x 20.0 x 2.5 mm 180 x 45.00 x 2.5 mm 9,600 4.00-5.20 mm 20+20 10 26456
8" x 20.0 x 2.5 mm 200 x 20.00 x 2.5 mm 9,000 4.00-5.20 mm 24+24 10 26469
8" x 20.0 x 2.5 mm 200 x 50.00 x 2.5 mm 9,000 4.00-5.20 mm 24+24 10 26472

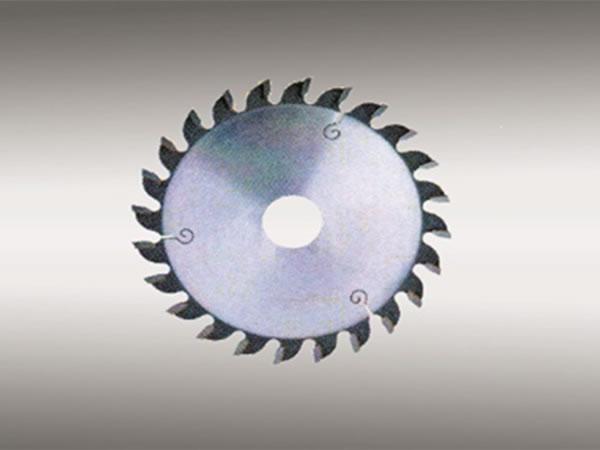

T.C.T. Conical Saw Blades for Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
4" x 20/22 x 2.2 mm 100 x 20/22 x 2.2 mm 12,000 2.80-4.00 mm 24 10 26485
4" x 22/22 x 2.2 mm 100 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26498
4.8" x 20/22 x 2.2 mm 120 x 20/22 x 2.2 mm 12,000 2.80-4.00 mm 24 10 26501
4.8" x 20/22 x 2.2 mm 120 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26514
4.8" x 22/22 x 2.2 mm 120 x 20/22 x 2.2 mm 12,000 3.30-4.30 mm 24 10 26527
5" x 20/22 x 2.2 mm 127 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26630
5" x 20/45 x 2.2 mm 127 x 20/45 x 2.2 mm 12,000 3.30-4.30 mm 24 10 26643
6" x 25/45 x 2.2 mm 150 x 25/45 x 2.2 mm 12,000 3.10-4.10 mm 36 10 26656
6" x 25/45 x 2.2 mm 150 x 25/45 x 2.2 mm 12,000 3.10-4.10 mm 40 10 26669
6" x 25/45 x 2.2 mm 150 x 25/45 x 2.2 mm 12,000 3.30-4.30 mm 36 10 26672
6" x 25/45 x 2.2 mm 150 x 25/45 x 2.2 mm 12,000 3.30-4.30 mm 40 10 26685
6-3/8" x 20/30 x 2.2 mm 160 x 20/30 x 2.2 mm 10,000 3.10-4.10 mm 36 10 26698
6-3/8" x 20/30 x 2.2 mm 160 x 20/30 x 2.2 mm 10,000 3.10-4.10 mm 40 10 26701
6-3/8" x 25/45 x 2.2 mm 160 x 25/45 x 2.2 mm 10,000 3.30-4.30 mm 36 10 26714
6-3/8" x 25/45 x 2.2 mm 160 x 25/45 x 2.2 mm 10,000 3.30-4.30 mm 40 10 26727
7" x 20/30 x 2.2 mm 180 x 20/30 x 2.2 mm 9,600 3.10-4.10 mm 36 10 26730
7" x 20/30 x 2.2 mm 180 x 20/30 x 2.2 mm 9,600 3.10-4.10 mm 40 10 26743
7" x 25/45 x 2.2 mm 180 x 25/45 x 2.2 mm 9,600 3.30-4.30 mm 36 10 26756
7" x 25/45 x 2.2 mm 180 x 25/45 x 2.2 mm 9,600 3.30-4.30 mm 40 10 26769
T.C.T. Saw Blades for Sizing the Panel
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
12" x 1-3/16" x 1/8" 300 x 30.0 x 3.0 mm 6,000 4.40 mm 48 10 26772
12" x 2-1/2" x 1/8" 300 x 60.0 x 3.0 mm 6,000 4.40 mm 60 10 26785
14" x 3" x 1/8" 350 x 75.0 x 3.0 mm 5,000 4.40 mm 54 10 26798
14" x 3-1/8" x 1/8" 350 x 80.0 x 3.0 mm 5,000 4.40 mm 72 10 26801
14" x 2-1/2" x 1/8" 350 x 60.0 x 3.0 mm 5,000 4.40 mm 84 10 26814
16" x 3" x 1/8" 400 x 75.0 x 3.0 mm 4,000 4.40 mm 60 10 26827
16" x 3" x 1/8" 400 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 26830
18" x 3" x 1/8" 450 x 75.0 x 3.0 mm 4,000 4.40 mm 60 10 26843
18" x 3-1/8" x 1/8" 450 x 80.0 x 3.0 mm 4,000 4.40 mm 72 10 26856
20" x 3" x 1/8" 500 x 75.0 x 3.2 mm 3,000 4.40 mm 60 10 26869
20" x 3-1/8" x 1/8" 500 x 80.0 x 3.5 mm 3,000 4.80 mm 72 10 26872
T.C.T. Saw Blades for Sizing the Panel
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
12" x 2-1/2" x 1/8" 300 x 65.0 x 3.0 mm 6,000 4.40 mm 60 10 26885
12" x 3" x 1/8" 300 x 75.0 x 3.0 mm 6,000 4.40 mm 60 10 26898
12" x 3-1/8" x 1/8" 300 x 80.0 x 3.0 mm 6,000 4.40 mm 72 10 26901
12" x 3-1/8" x 1/8" 300 x 80.0 x 3.0 mm 6,000 4.40 mm 96 10 26914
14" x 2-1/2" x 1/8" 350 x 60.0 x 3.0 mm 5,000 4.40 mm 72 10 26927
14" x 3" x 1/8" 350 x 75.0 x 3.0 mm 5,000 4.40 mm 72 10 26930
14" x 3-1/8" x 1/8" 350 x 80.0 x 3.0 mm 5,000 4.40 mm 84 10 26943
14" x 3-1/8" x 1/8" 350 x 80.0 x 3.0 mm 5,000 4.40 mm 96 10 26956
15" x 2-1/2" x 1/8" 380 x 60.0 x 3.0 mm 5,000 4.40 mm 72 10 26969
15" x 2-1/2" x 1/8" 380 x 60.0 x 3.5 mm 5,000 4.40 mm 72 10 27072
15" x 2-1/2" x 1/8" 380 x 60.0 x 3.5 mm 5,000 4.40 mm 84 10 27085
16" x 3" x 1/8" 400 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 27098
16" x 3-1/8" x 1/8" 400 x 80.0 x 3.5 mm 4,000 4.80 mm 72 10 27101
16" x 3" x 1/8" 400 x 75.0 x 3.0 mm 4,000 4.40 mm 96 10 27114
16" x 3" x 1/8" 400 x 75.0 x 3.5 mm 4,000 4.80 mm 84 10 27127
17" x 3-1/8" x 1/8" 430 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 27130
17" x 2-1/2" x 1/8" 430 x 60.0 x 3.5 mm 4,000 4.80 mm 84 10 27143
18" x 2-1/2" x 1/8" 450 x 60.0 x 3.0 mm 4,000 4.40 mm 72 10 27156
18" x 2-1/2" x 1/8" 450 x 60.0 x 3.5 mm 4,000 4.80 mm 72 10 27169
18" x 2-1/2" x 1/8" 450 x 60.0 x 3.5 mm 4,000 4.80 mm 84 10 27172
18" x 3-1/8" x 1/8" 450 x 80.0 x 3.5 mm 4,000 4.80 mm 84 10 27185
18" x 2-1/2" x 1/8" 450 x 60.0 x 3.5 mm 4,000 4.80 mm 96 10 27198
18" x 3-1/8" x 1/8" 450 x 80.0 x 3.5 mm 4,000 4.80 mm 96 10 27201
18" x 2-1/2" x 1/8" 450 x 60.0 x 3.5 mm 4,000 4.80 mm 60 10 27214
18" x 3-1/8" x 1/8" 450 x 80.0 x 3.5 mm 4,000 4.80 mm 75 10 27227
19" x 3-1/8" x 1/8" 480 x 80.0 x 3.5 mm 4,000 4.80 mm 84 10 27230
19" x 3-1/8" x 1/8" 480 x 80.0 x 3.0 mm 4,000 4.80 mm 96 10 27243
20" x 2-1/2" x 1/8" 500 x 60.0 x 3.2 mm 3,000 4.80 mm 72 10 27256
20" x 3" x 1/8" 500 x 75.0 x 3.5 mm 3,000 4.80 mm 84 10 27269
20" x 3-1/8" x 1/8" 500 x 80.0 x 3.5 mm 3,000 4.80 mm 96 10 27272
T.C.T. Saw Blades for Sizing & Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
5" x 20/45 x 3.0 mm 125 x 20/45 x 3.0 mm 12,000 4.30-5.30 mm 24 10 27285
5" x 20/45 x 3.0 mm 125 x 20/45 x 3.0 mm 12,000 4.60-5.60 mm 24 10 27298
6" x 25/45 x 3.0 mm 150 x 25/45 x 3.0 mm 10,100 4.30-5.30 mm 36 10 27301
6" x 25/45 x 3.0 mm 150 x 25/45 x 3.0 mm 10,100 4.30-5.30 mm 40 10 27314
6" x 25/45 x 3.0 mm 150 x 25/45 x 3.0 mm 10,100 4.60-5.60 mm 36 10 27327
6" x 25/45 x 3.0 mm 150 x 25/45 x 3.0 mm 10,100 4.60-5.60 mm 40 10 27330
6-3/8" x 45 x 3.0 mm 160 x 45 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27343
6-3/8" x 55 x 3.0 mm 160 x 55 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27356
6-3/8" x 60 x 3.0 mm 160 x 60 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27369
6-3/8" x 45/60 x 3.0 mm 160 x 45/60 x 3.0 mm 10,000 4.30-5.30 mm 40 10 27372
6-3/8" x 45/55 x 3.0 mm 160 x 45/55 x 3.0 mm 10,000 4.60-5.60 mm 36 10 27385
7" x 30/50 x 3.0 mm 180 x 30/50 x 3.0 mm 9,600 4.30-5.30 mm 36 10 27398
7" x 30/50 x 3.0 mm 180 x 30/50 x 3.0 mm 9,600 4.30-5.30 mm 40 10 27501
7" x 45/55 x 3.0 mm 180 x 45/55 x 3.0 mm 9,600 4.60-5.60 mm 36 10 27514
8" x 20/22 x 3.0 mm 200 x 20/22 x 3.0 mm 9,000 4.30-5.30 mm 36 10 27527
8" x 30/45 x 3.0 mm 200 x 30/45 x 3.0 mm 9,000 4.30-5.30 mm 36 10 27530
8" x 20/80 x 3.0 mm 200 x 20/80 x 3.0 mm 9,000 4.30-5.30 mm 40 10 27543
8" x 20/65 x 3.0 mm 200 x 20/65 x 3.0 mm 9,000 4.60-5.60 mm 36 10 27556
12" x 25/50 x 3.0 mm 300 x 25/50 x 3.0 mm 6,000 4.30-5.30 mm 48 10 27569
12" x 65/80 x 3.0 mm 300 x 65/80 x 3.0 mm 6,000 4.30-5.30 mm 60 10 27572
12" x 65/80 x 3.0 mm 300 x 65/80 x 3.0 mm 6,000 4.30-5.30 mm 72 10 27585
T.C.T. Saw Blades for cutting Ply-wood
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 25 x 2.2 mm 200 x 25 x 2.2 mm 9,000 3.2 mm 60 10 27598
9" x 25 x 2.2 mm 230 x 25 x 2.2 mm 8,000 3.2 mm 80 10 27601
10" x 25 x 2.2 mm 250 x 25 x 2.2 mm 7,000 3.2 mm 80 10 27614
10" x 25 x 2.2 mm 250 x 25 x 2.2 mm 7,000 3.2 mm 100 10 27627
10" x 25 x 2.2 mm 250 x 25 x 2.2 mm 7,000 3.2 mm 120 10 27630
11" x 25/30 x 2.2 mm 280 x 25/30 x 2.2 mm 6,500 3.2 mm 120 10 27643
12" x 25/30 x 2.2 mm 300 x 25/30 x 2.2 mm 6,000 3.2 mm 100 10 27656
12" x 25/30 x 2.2 mm 300 x 25/30 x 2.2 mm 6,000 3.2 mm 120 10 27669
T.C.T. Saw Blades for Ripping/Cross Cut
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
7" x 25 x 2.2 mm 180 x 25 x 2.2 mm 9,000 3.2 mm 30 10 27672
8" x 25 x 2.2 mm 200 x 25 x 2.2 mm 9,000 3.2 mm 36 10 27685
9" x 25/30 x 2.2 mm 230 x 25/30 x 2.2 mm 8,000 3.2 mm 40 10 27698
10" x 30 x 2.2 mm 250 x 30 x 2.2 mm 7,000 3.2 mm 40 10 27701
12" x 30 x 2.2 mm 300 x 30 x 2.2 mm 6,000 3.2 mm 48 10 27714
14" x 30 x 2.5 mm 350 x 30 x 2.5 mm 5,000 3.5 mm 54 10 27727
16" x 30 x 2.5 mm 400 x 30 x 2.5 mm 4,700 3.5 mm 60 10 27730
18" x 30 x 2.8 mm 450 x 30 x 2.8 mm 3,500 4.0 mm 72 10 27743
20" x 30 x 3.0 mm 500 x 30 x 3.0 mm 3,000 4.8 mm 80 10 27756
T.C.T. Saw Blades for hardwood Grooving
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
3-1/8" x 20/30 x 1.0- 4.0 mm 80 x 20/30 x 1.0- 4.0 mm 15,000 1.50-5.00 mm 12+30 10 27769
4" x 20/30 x 1.0- 4.5 mm 100 x 20/30 x 1.0- 4.5 mm 15,000 1.50-6.00 mm 20+36 10 27772
6" x 25/30 x 1.5- 4.5 mm 150 x 25/45 x 1.5 -4.5 mm 12,000 2.00-6.00 mm 20+40 10 27785
6-3/8" x 25/30 x 1.5- 4.5 mm 160 x 25/30 x 1.5 -4.5 mm 10,000 2.00-6.00 mm 20+40 10 27798
7" x 25/30 x 1.5- 4.5 mm 180 x 25/30 x 1.5 -4.5 mm 9,600 2.00-6.00 mm 24+48 10 27801
8" x 25/30 x 2.0- 5.5 mm 200 x 25/30 x 2.0 -5.5 mm 9,000 2.50-7.00 mm 24+60 10 27814
10" x 25/30 x 2.0- 8.0 mm 250 x 25/30 x 2.0 -8.0 mm 7,000 2.50-10.0 mm 24+60 10 27827
12" x 25/30 x 2.0- 8.0 mm 300 x 25/30 x 2.0-8.0 mm 6,000 3.00-10.0 mm 28+72 10 27930
T.C.T. Saw Blades for Cutting Organic Glass
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 25/30 x 1.7 mm 200 x 25/30 x 1.7 mm 9,000 2.2 mm 80 10 27943
8" x 25/30 x 2.5 mm 200 x 25/30 x 2.5 mm 9,000 3.0 mm 80 10 27956
9" x 25/30 x 1.7 mm 230 x 25/30 x 1.7 mm 8,000 2.2 mm 80 10 27969
9" x 25/30 x 2.5 mm 230 x 25/30 x 2.5 mm 9,000 3.0 mm 80 10 27972
9" x 25/30 x 1.7 mm 230 x 25/30 x 1.7 mm 8,000 2.2 mm 100 10 27985
9" x 25/30 x 2.5 mm 230 x 25/30 x 2.5 mm 9,000 3.0 mm 100 10 27998
10" x 25/30 x 1.7 mm 250 x 25/30 x 1.7 mm 7,000 2.2 mm 100 10 28001
10" x 25/30 x 2.5 mm 250 x 25/30 x 2.5 mm 7,000 3.0 mm 100 10 28014
11" x 25/30 x 2.5 mm 280 x 25/30 x 2.5 mm 6,500 3.0 mm 120 10 28027
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 6,000 2.5 mm 100 10 28030
12" x 25/30 x 2.5 mm 300 x 25/30 x 2.5 mm 6,000 3.0 mm 100 10 28043
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 6,000 2.5 mm 120 10 28056
12" x 25/30 x 2.5 mm 300 x 25/30 x 2.5 mm 6,000 3.0 mm 120 10 28069
T.C.T. Saw Blades with anti-kick Back Design
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 30/70 x 2.2 mm 200 x 30/70 x 2.2 mm 9,000 3.2 mm 16 10 28072
9" x 30/70 x 2.2 mm 230 x 30/70 x 2.2 mm 8,000 3.2 mm 18 10 28085
10" x 30/70 x 2.2 mm 250 x 30/70 x 2.2 mm 7,000 3.2 mm 20 10 28098
10" x 30/70 x 2.2 mm 250 x 30/70 x 2.2 mm 7,000 3.2 mm 24 10 28101
10" x 30/70 x 2.2 mm 250 x 30/70 x 2.2 mm 7,000 3.2 mm 32 10 28114
12" x 30/70 x 2.2 mm 300 x 30/70 x 2.2 mm 6,000 3.2 mm 24 10 28127
12" x 30/70 x 2.2 mm 300 x 30/70 x 2.2 mm 6,000 3.2 mm 28 10 28130
12" x 30/70 x 2.2 mm 300 x 30/70 x 2.2 mm 6,000 3.2 mm 36 10 28143
14" x 30/70 x 2.5 mm 350 x 30/70 x 2.5 mm 5,000 3.5 mm 28 10 28156
14" x 30/70 x 2.5 mm 350 x 30/70 x 2.5 mm 5,000 3.5 mm 32 10 28169
14" x 30/70 x 2.5 mm 350 x 30/70 x 2.5 mm 5,000 3.5 mm 40 10 28172
16" x 30/70 x 2.5 mm 400 x 30/70 x 2.5 mm 4,700 3.5 mm 36 10 28185
16" x 30/70 x 2.5 mm 400 x 30/70 x 2.5 mm 4,700 3.5 mm 40 10 28198
18" x 30/70 x 2.8 mm 450 x 30/70 x 2.8 mm 3,500 4.0 mm 40 10 28201
18" x 30/70 x 2.8 mm 450 x 30/70 x 2.8 mm 3,500 4.0 mm 48 10 28214
20" x 30/70 x 3.0 mm 500 x 30/70 x 3.0 mm 3,000 4.4 mm 48 10 28227
T.C.T. Circular Saw Blade on Edge Trim machine
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
4" x 16/32 x 2.0 mm 100 x 16/32 x 2.0 mm 13,000 2.6 mm 20 10 28230
4" x 16/32 x 2.2 mm 100 x 16/32 x 2.2 mm 13,000 3.0 mm 20 10 28243
4" x 16/32 x 2.5 mm 100 x 16/32 x 2.5 mm 13,000 3.5 mm 20 10 28256
4" x 16/32 x 2.2 mm 100 x 16/32 x 2.2 mm 13,000 3.2 mm 30 10 28269
4-5/8" x 25/40 x 2.4 mm 120 x 25/40 x 2.4 mm 12,000 3.2 mm 20 10 28372
4-5/8" x 25/40 x 2.5 mm 120 x 25/40 x 2.5 mm 12,000 3.5 mm 24 10 28385
4-5/8" x 25/40 x 2.0 mm 120 x 25/40 x 2.0 mm 12,000 2.6 mm 24 10 28398
4-5/8" x 25/40 x 2.0 mm 120 x 25/40 x 2.0 mm 12,000 2.6 mm 30 10 28401
4-5/8" x 25/40 x 2.2 mm 120 x 25/40 x 2.2 mm 12,000 3.2 mm 36 10 28414
6" x 20/32 x 2.5 mm 150 x 20/32 x 2.5 mm 8,000 3.2 mm 30 10 28427
7-1/2" x 40/60 x 2.0 mm 190 x 40/60 x 2.0 mm 8,000 2.6 mm 36 10 28430
10" x 25 x 2.5 mm 250 x 25 x 2.5 mm 7,000 2.0 mm 40 10 28443
12" x 25 x 3.0 mm 300 x 25 x 3.0 mm 6,000 4.0 mm 48 10 28456
12" x 50 x 3.0 mm 300 x 50 x 3.0 mm 6,000 4.0 mm 60 10 28469
14" x 50 x 4.0 mm 350 x 50 x 4.0 mm 5,000 5.0 mm 70 10 28472
16" x 50 x 4.0 mm 400 x 50 x 4.0 mm 4,700 5.0 mm 70 10 28485
18" x 50 x 4.0 mm 450 x 50 x 4.0 mm 3,500 5.0 mm 70 10 28498
18" x 50 x 4.0 mm 450 x 50 x 4.0 mm 3,500 5.0 mm 80 10 28501
T.C.T. Saw Blade for cutting non-ferrous metals
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
8" x 25 x 1.4 mm 200 x 25 x 1.4 mm 9,000 2.0 mm 80 10 28514
8" x 25 x 2.2 mm 200 x 25 x 2.2 mm 9,000 2.8 mm 80 10 28527
8" x 25 x 1.4 mm 200 x 25 x 1.4 mm 9,000 2.0 mm 100 10 28530
8" x 25 x 2.2 mm 200 x 25 x 2.2 mm 9,000 2.8 mm 100 10 28543
10" x 25 x 2.4 mm 250 x 25 x 2.4 mm 7,000 3.0 mm 80 10 28556
10" x 25 x 2.0 mm 250 x 25 x 2.0 mm 7,000 2.6 mm 100 10 28569
10" x 25 x 2.4 mm 250 x 25 x 2.4 mm 7,000 3.0 mm 100 10 28572
10" x 25 x 2.0 mm 250 x 25 x 2.0 mm 7,000 2.6 mm 120 10 28585
10" x 25 x 2.4 mm 250 x 25 x 2.4 mm 7,000 3.0 mm 120 10 28598
12" x 25 x 2.0 mm 300 x 25 x 2.0 mm 6,000 2.6 mm 100 10 28601
12" x 25 x 2.4 mm 300 x 25 x 2.4 mm 6,000 3.0 mm 100 10 28614
14" x 25 x 2.4 mm 350 x 25 x 2.4 mm 5,000 3.0 mm 100 10 28627
14" x 25 x 3.0 mm 350 x 25 x 3.0 mm 5,000 3.6 mm 100 10 28630
16" x 25 x 2.4 mm 400 x 25 x 2.4 mm 4,700 3.0 mm 100 10 28643
16" x 25 x 3.0 mm 400 x 25 x 3.0 mm 4,700 3.6 mm 100 10 28656
16" x 25 x 2.4 mm 400 x 25 x 2.4 mm 4,700 3.0 mm 120 10 28669
16" x 25 x 3.0 mm 400 x 25 x 3.0 mm 4,700 3.6 mm 120 10 28672
18" x 25 x 3.0 mm 450 x 25 x 3.0 mm 3,500 3.6 mm 120 10 28685
18" x 25 x 3.4 mm 450 x 25 x 3.4 mm 3,500 4.0 mm 120 10 28698
20" x 25 x 4.0 mm 500 x 25 x 4.0 mm 3,000 4.6 mm 100 10 28801
20" x 25 x 4.0 mm 500 x 25 x 4.0 mm 3,000 4.6 mm 120 10 28814
22" x 25 x 4.0 mm 550 x 25 x 4.0 mm 3,000 4.8 mm 120 10 28827
24" x 25 x 4.0 mm 600 x 25 x 4.0 mm 2,500 4.8 mm 144 10 28830
28" x 25 x 4.0 mm 700 x 25 x 4.0 mm 2,000 5.2 mm 144 10 28843
32" x 25 x 5.0 mm 800 x 25 x 5.0 mm 1,200 6.0 mm 72 10 28856
32" x 25 x 5.0 mm 800 x 25 x 5.0 mm 1,200 6.0 mm 160 10 28869
Professional T.C.T Saw Blades
Inquiry Form
Contact Us

Joysun Abrasives Co.,Ltd.

International Sales
Tel.: +86-371-67622388
Fax: +86-371-67622389

Domestic Sales
Tel.:
+86-371-66783281
+86-371-66783282
+86-371-66783283
Fax: +86-371-66782235

Service Centre
Tel.: +86-371-66781081
Fax: +86-371-66782235

Other Products
