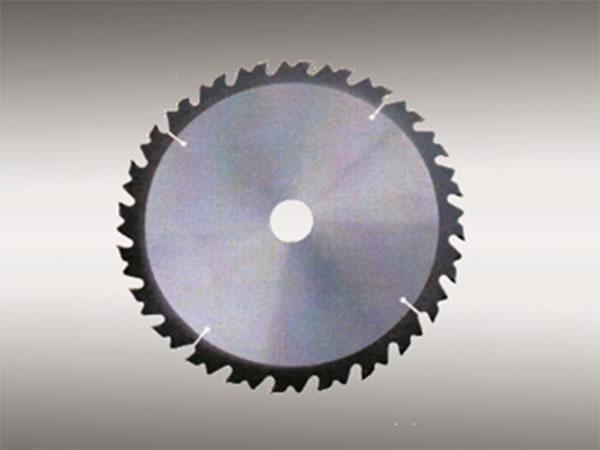

DIY Grade T.C.T Saw Blades

Joysun DIY grade TCT saw blades are suitable for home woodworking applications. Although they are not as strong as the professional grade, they are more economically friendly and have an excellent working lifetime.

T.C.T. Circular Saw Blades for non-ferrous metal
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting aluminum blard/stick with thickness less than 1/3 diameter of saw blade and plastic steels.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
4" x 20 x 1.2 mm 105 x 20 x 1.2 mm 15,000 1.8 40 10 28872
5" x 20 x 1.2 mm 125 x 20 x 1.2 mm 12,000 1.8 40 10 28885
6" x 20/25 x 1.3 mm 150 x 20/25 x 1.3 mm 10,100 2 60 10 28898
7" x 20/25 x 1.3 mm 180 x 20/25 x 1.3 mm 8,750 2.2 60 10 28901
7" x 20/25 x 1.3 mm 180 x 20/25 x 1.3 mm 8,750 2.2 80 10 28914
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 80 10 28927
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 100 10 28930
9" x 20/25 x 1.6 mm 200 x 20/25 x 1.6 mm 6,600 2.3 80 10 28943
9" x 20/25 x 1.6 mm 200 x 20/25 x 1.6 mm 6,600 2.3 100 10 28956
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 80 10 28969
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 100 10 28972
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 120 10 28985
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 80 10 28998
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 100 10 29001
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 120 10 29014
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 100 10 29027
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 120 10 29030
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 100 10 29043
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 120 10 29056
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 100 10 29069
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 120 10 29072
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 100 10 29085
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 120 10 29098

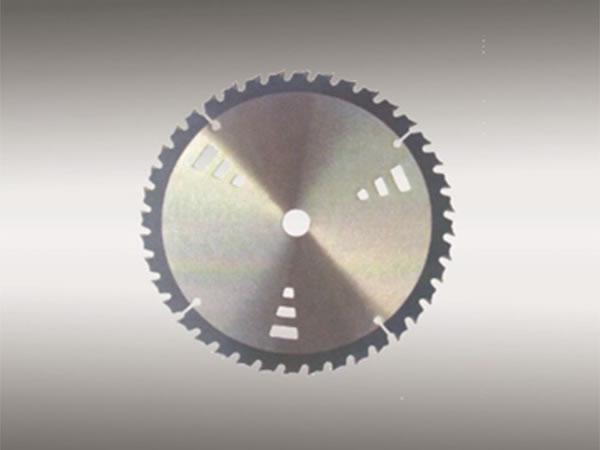

T.C.T. Circular Saw Blades for the wood-working
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting dry hard and soft wood and also can be suitable to cutting shaving board wood, fiber board.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
4" x 20 x 1.2 mm 105 x 20 x 1.2 mm 15,000 1.8 24 10 29101
4" x 20 x 1.2 mm 105 x 20 x 1.2 mm 15,000 1.8 30 10 29114
4" x 20 x 1.2 mm 105 x 20 x 1.2 mm 15,000 1.8 40 10 29127
5" x 20 x 1.2 mm 125 x 20 x 1.2 mm 12,000 1.8 24 10 29230
5" x 20 x 1.2 mm 125 x 20 x 1.2 mm 12,000 1.8 30 10 29243
5" x 20 x 1.2 mm 125 x 20 x 1.2 mm 12,000 1.8 40 10 29256
6" x 20/25 x 1.3 mm 150 x 20/25 x 1.3 mm 10,100 2 24 10 29269
6" x 20/25 x 1.3 mm 150 x 20/25 x 1.3 mm 10,100 2 40 10 29272
6" x 20/25 x 1.3 mm 150 x 20/25 x 1.3 mm 10,100 2 60 10 29285
7" x 20/25 x 1.3 mm 180 x 20/25 x 1.3 mm 8,750 2.2 24 10 29298
7" x 20/25 x 1.3 mm 180 x 20/25 x 1.3 mm 8,750 2.2 40 10 29301
7" x 20/25 x 1.3 mm 180 x 20/25 x 1.3 mm 8,750 2.2 60 10 29314
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 24 10 29327
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 40 10 29330
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 60 10 29343
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 80 10 29356
8" x 20/25 x 1.5 mm 200 x 20/25 x 1.5 mm 7,650 2.2 100 10 29369
9" x 20/25 x 1.6 mm 230 x 20/25 x 1.6 mm 6,600 2.3 40 10 29372
9" x 20/25 x 1.6 mm 230 x 20/25 x 1.6 mm 6,600 2.3 60 10 29385
9" x 20/25 x 1.6 mm 230 x 20/25 x 1.6 mm 6,600 2.3 80 10 29398
9" x 20/25 x 1.6 mm 230 x 20/25 x 1.6 mm 6,600 2.3 100 10 29401
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 40 10 29414
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 60 10 29427
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 80 10 29430
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 100 10 29443
10" x 20/25 x 2.0 mm 250 x 20/25 x 2.0 mm 6,100 3 120 10 29456
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 40 10 29469
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 60 10 29472
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 80 10 29485
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 100 10 29498
12" x 25/30 x 2.0 mm 300 x 25/30 x 2.0 mm 5,100 3 120 10 29501
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 40 10 29514
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 60 10 29527
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 80 10 29530
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 100 10 29543
14" x 25/30 x 2.2 mm 350 x 25/30 x 2.2 mm 4,400 3.2 120 10 29556
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 40 10 29569
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 60 10 29672
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 80 10 29685
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 100 10 29698
16" x 25/30 x 2.5 mm 400 x 25/30 x 2.5 mm 3,900 3.5 120 10 29701
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 40 10 29714
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 60 10 29727
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 80 10 29730
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 100 10 29743
18" x 25/30 x 3.0 mm 450 x 25/30 x 3.0 mm 3,400 3.5 120 10 29756
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 40 10 29769
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 60 10 29772
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 80 10 29785
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 100 10 29798
20" x 25/30 x 3.0 mm 500 x 25/30 x 3.0 mm 3,100 3.8 120 10 29801

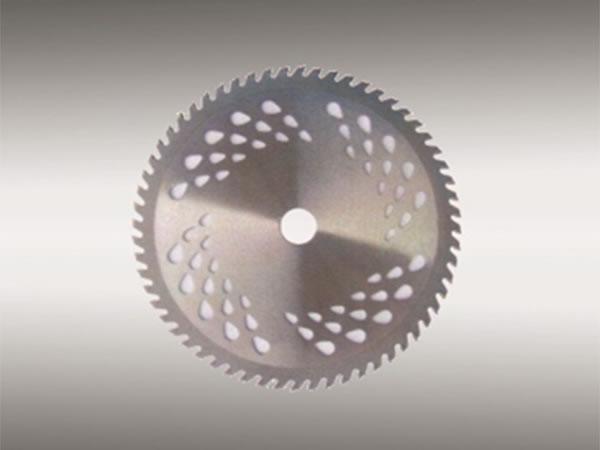

T.C.T. Super Thin Saw Blades for Wood-Working
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting dry hard and soft wood and also can be suitable to cutting shaving board wood, fiber board.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
4" x 20 x 0.9-1.1 mm 105 x 20 x 0.9-1.1 mm 15,000 1.0-1.4 30 10 29814
4" x 20 x 0.9-1.1 mm 105 x 20 x 0.9-1.1 mm 15,000 1.0-1.4 40 10 29827
5" x 20 x 0.9-1.1 mm 125 x 20 x 0.9-1.1 mm 12,000 1.0-1.4 30 10 29830
5" x 20 x 0.9-1.1 mm 125 x 20 x 0.9-1.1 mm 12,000 1.0-1.4 40 10 29843
6" x 20/25 x 0.9-1.1 mm 150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 40 10 29856
6" x 20/25 x 0.9-1.1 mm 150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 50 10 29869
6" x 20/25 x 0.9-1.1 mm 150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 60 10 29872
7" x 20/25 x 0.9-1.2 mm 180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 40 10 29885
7" x 20/25 x 0.9-1.2 mm 180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 50 10 29898
7" x 20/25 x 0.9-1.2 mm 180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 60 10 29901
8" x 20/25 x 0.9-1.2 mm 200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 40 10 29914
8" x 20/25 x 0.9-1.2 mm 200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 60 10 29927
8" x 20/25 x 0.9-1.2 mm 200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 80 10 29930
9" x 20/25 x 1.0-1.3 mm 230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 40 10 29943
9" x 20/25 x 1.0-1.3 mm 230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 60 10 29956
9" x 20/25 x 1.0-1.3 mm 230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 80 10 29969
9" x 20/25 x 1.0-1.3 mm 230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 100 10 29972
10" x 20/25 x 1.2-1.5 mm 250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 60 10 29985
10" x 20/25 x 1.2-1.5 mm 250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 80 10 29998
10" x 20/25 x 1.2-1.5 mm 250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 100 10 30101
10" x 20/25 x 1.2-1.5 mm 250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 120 10 30114
12" x 20/25 x 1.3-1.7 mm 300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 60 10 30127
12" x 20/25 x 1.3-1.7 mm 300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 80 10 30130
12" x 20/25 x 1.3-1.7 mm 300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 100 10 30143
12" x 20/25 x 1.3-1.7 mm 300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 120 10 30156
14" x 20/25 x 1.3-1.7 mm 350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 60 10 30169
14" x 20/25 x 1.3-1.7 mm 350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 80 10 30172
14" x 20/25 x 1.3-1.7 mm 350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 100 10 30185
14" x 20/25 x 1.3-1.7 mm 350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 120 10 30198
16" x 20/25 x 1.7-2.0 mm 400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 60 10 30201
16" x 20/25 x 1.7-2.0 mm 400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 80 10 30214
16" x 20/25 x 1.7-2.0 mm 400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 100 10 30227
16" x 20/25 x 1.7-2.0 mm 400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 120 10 30230

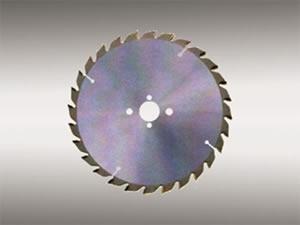

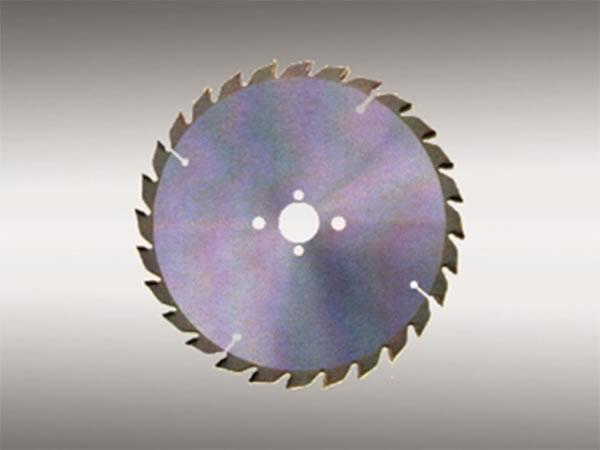

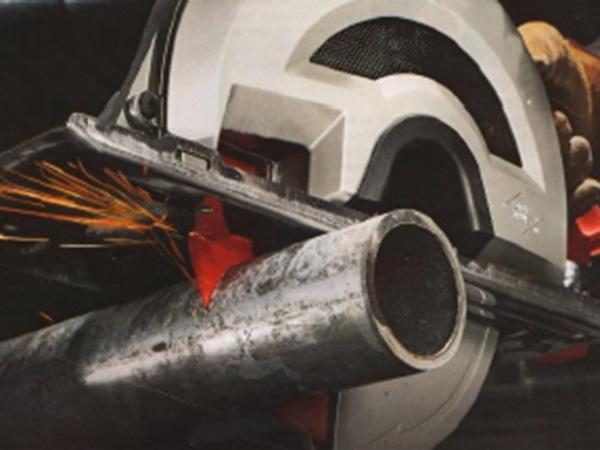

T.C.T. Circular Saw Blades for cutting ferrous metals
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting ferrous metals which is with thickness less than 5 mm.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
4-1/2" x 16/20 x 1.7 mm 105 x 16/20 x 1.7 mm 15,000 2.2 24 10 30243
7" x 16/20 x 1.7 mm 180 x 16/20 x 1.7 mm 8,750 2.2 36 10 30256
8" x 16/20 x 1.7 mm 200 x 16/20 x 1.7 mm 7,650 2.2 40 10 30269
9" x 20/25 x 1.7 mm 230 x 20/25 x 1.7 mm 6,600 2.2 48 10 30272
10" x 20/25 x 1.7 mm 250 x 20/25 x 1.7 mm 6,100 2.2 50 10 30285
12" x 20/25 x 1.8 mm 300 x 20/25 x 1.8 mm 5,100 2.2 60 10 30298
14" x 25 x 1.8 mm 350 x 25 x 1.8 mm 4,400 2.2 72 10 30301

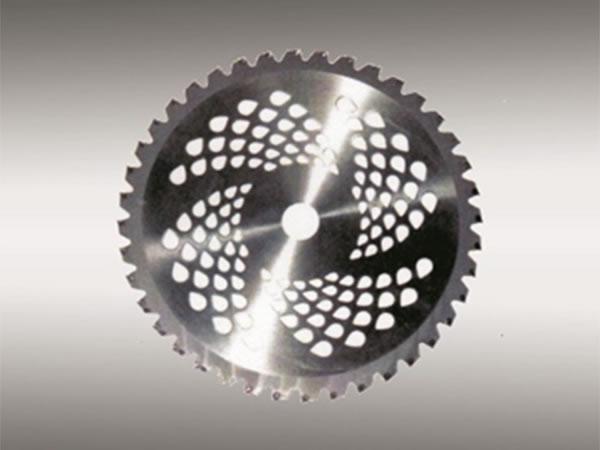

T.C.T. Circular Saw Blades for cutting the grass
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting pruning weed, branch, etc,

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
9" x 32 x 1.3 mm 230 x 32 x 1.3 mm 6,600 2.23 36 10 30314
9" x 32 x 1.3 mm 230 x 32 x 1.3 mm 6,600 2.23 40 10 30327
10" x 32 x 1.3 mm 250 x 32 x 1.3 mm 6,100 2.2 36 10 30330
10" x 32 x 1.3 mm 250 x 32 x 1.3 mm 6,100 2.2 40 10 30343
DIY Grade T.C.T Saw Blades
