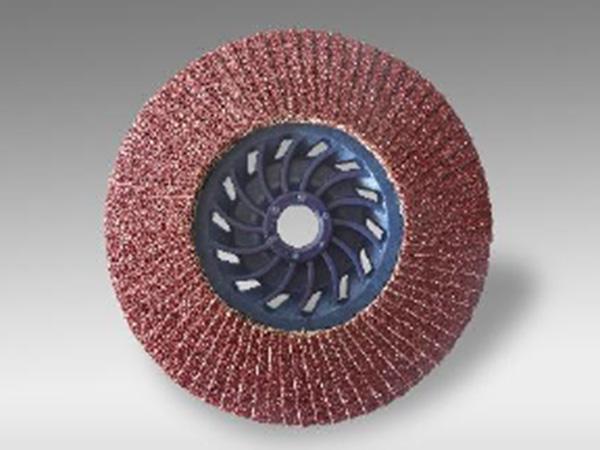

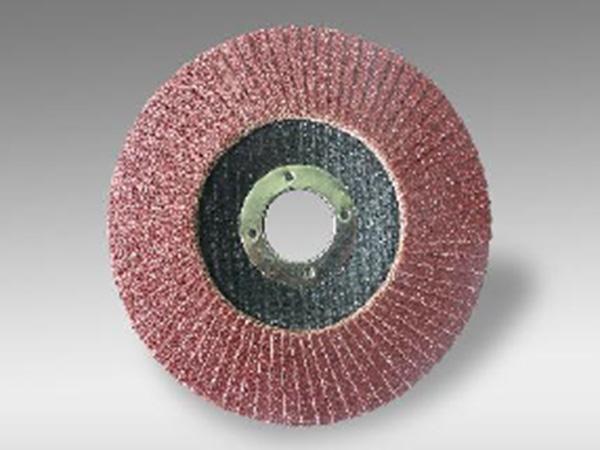

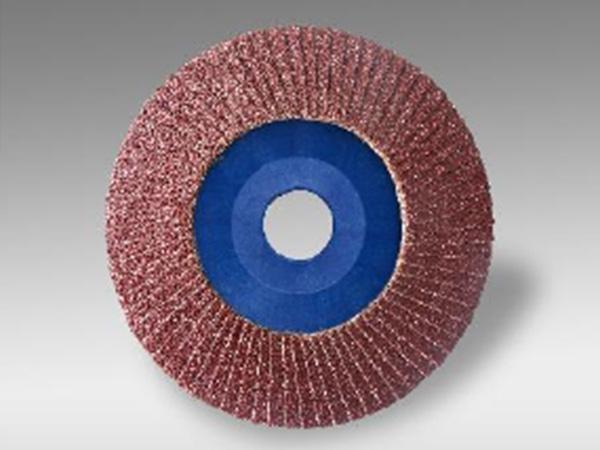

JAC-K368MX Aluminum Oxide Flap Discs

Availability

PRODUCT CODE	JAC-K368MX	JAC-K368MX	JAC-K368MX
ABRASIVE GRAINS	Refined Aluminum Oxide	Refined Aluminum Oxide	Refined Aluminum Oxide
FLAP DISC DENSITY	Standard	Standard	Standard
FLAP FITTED VERSIONS	Single / Double	Single / Double	Single / Double
BACKING PLATE MATERIAL	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
FLAP DISC SHAPE AVAILABLE	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	38005	39563	38006	38734	39876	38735
		40			38018	39576	38019	38747	39889	38748
		50			38021	39589	38022	38850	39892	38851
		60			38034	39592	38035	38863	39905	38864
		80			38047	39605	38048	38876	39918	38877
		100			38050	39618	38051	38889	39921	38880
		120			38063	39721	38064	38892	39934	38893
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	38076	39734	38077	38905	39947	38906	39118		39119
		40			38089	39747	38080	38918	39950	38919	39121		39122
		50			38092	39750	38093	38921	39963	38922	39134		39135
		60			38105	39763	38106	38934	39976	38935	39147		39148
		80			38118	39776	38119	38947	39989	38948	39150		39151
		100			38121	39789	38122	38950	39992	38951	39163		39164
		120			38134	39792	38135	38963	40005	38964	39176		39177
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	38147	39805	38148	38976	40018	38977	39189		39280
		40			38150	39818	38151	38989	40021	38980	39292		39293
		50			38163	39821	38164	38992	40034	38993	39305		39306
		60			38176	39834	38177	39005	40047	39006	39318		39319
		80			38189	39847	38180	39018	40150	39019	39321		39322
		100			38192	39850	38193	39021	40163	39022	39334		39335
		120			38205	39863	38206	39034	40176	39035	39347		39348
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	38218		38219
		40			38221		38222
		50			38234		38235
		60			38247		38248
		80			38250		38251
		100			38263		38264
		120			38276		38277
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	38289		38280	39047		39048	39350		39351
		40			38292		38293	39050		39051	39363		39364
		50			38305		38306	39063		39064	39376		39377
		60			38318		38319	39076		39077	39389		39380
		80			38421		38422	39089		39080	39392		39393
		100			38434		38435	39092		39093	39405		39406
		120			38447		38448	39105		39106	39418		39419
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	38450		38451				39421		39422
		40			38463		38464				39434		39435
		50			38476		38477				39447		39448
		60			38489		38480				39450		39451
		80			38492		38493				39463		39464
		100			38505		38506				39476		39477
		120			38518		38519				39489		39480
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	38521		38522				39492		39493
		40			38534		38535				39505		39506
		50			38547		38548				39518		39519
		60			38550		38551				39521		39522
		80			38563		38564				39534		39535
		100			38576		38577				39547		39548
		120			38589		38580				39550		39551
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	38592		38593
		40			38605		38606
		50			38618		38619
		60			38621		38622
		80			38634		38635
		100			38647		38648
		120			38650		38651
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	38663		38664
		40			38676		38677
		50			38689		38680
		60			38692		38693
		80			38705		38706
		100			38718		38719
		120			38721		38722

JAC-K368MX Aluminum Oxide Flap Discs
