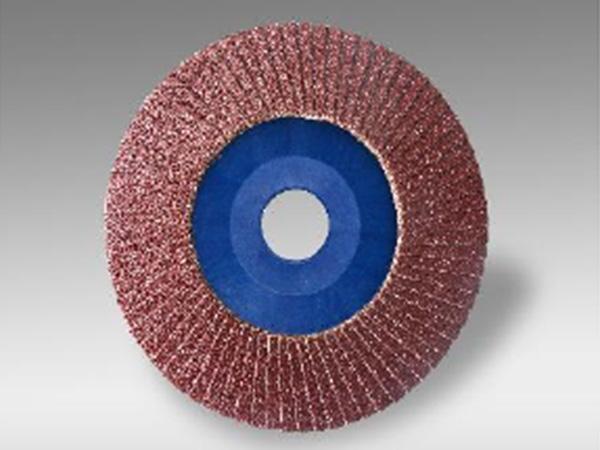

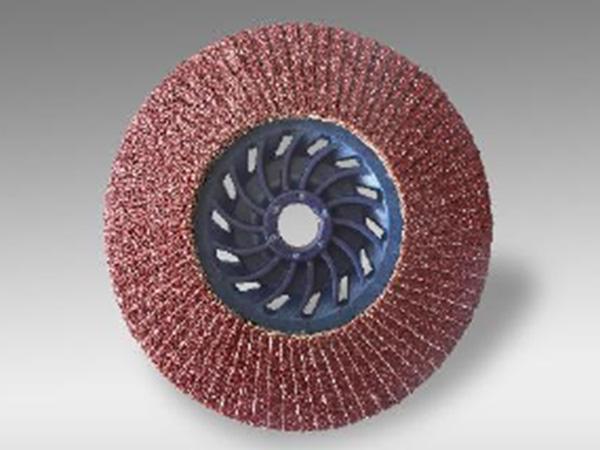

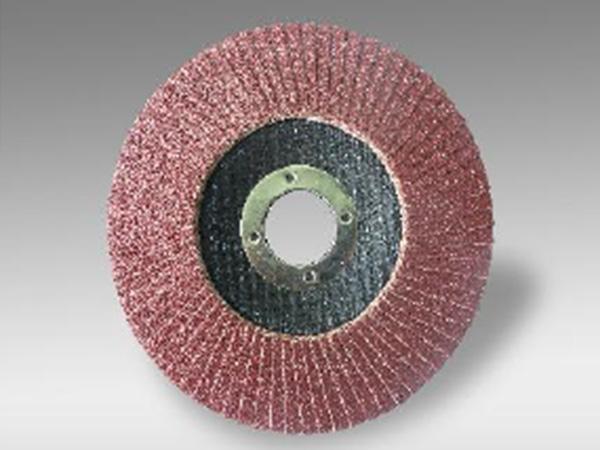

JAC-K369LX Aluminum Oxide Flap Discs

Availability

PRODUCT CODE	JAC-K369LX	JAC-K369LX	JAC-K369LX
ABRASIVE GRAINS	Standard Aluminum Oxide	Standard Aluminum Oxide	Standard Aluminum Oxide
FLAP DISC DENSITY	Standard	Standard	Standard
FLAP FITTED VERSIONS	Single / Double	Single / Double	Single / Double
BACKING PLATE MATERIAL	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
FLAP DISC SHAPE AVAILABLE	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	39007	40565	39008	39736	40878	39737
		40			39010	40578	39011	39749	40881	39840
		50			39023	40581	39024	39852	40894	39853
		60			39036	40594	39037	39865	40907	39866
		80			39049	40607	39040	39878	40910	39879
		100			39052	40710	39053	39881	40923	39882
		120			39065	40723	39066	39894	40936	39895
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	39078	40736	39079	39907	40949	39908	40110		40111
		40			39081	40749	39082	39910	40952	39911	40123		40124
		50			39094	40752	39095	39923	40965	39924	40136		40137
		60			39107	40765	39108	39936	40978	39937	40149		40140
		80			39110	40778	39111	39949	40981	39940	40152		40153
		100			39123	40781	39124	39952	40994	39953	40165		40166
		120			39136	40794	39137	39965	41007	39966	40178		40179
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	39149	40807	39140	39978	41010	39979	40281		40282
		40			39152	40810	39153	39981	41023	39982	40294		40295
		50			39165	40823	39166	39994	41036	39995	40307		40308
		60			39178	40836	39179	40007	41049	40008	40310		40311
		80			39181	40849	39182	40010	41052	40011	40323		40324
		100			39194	40852	39195	40023	41065	40024	40336		40337
		120			39207	40865	39208	40036	41078	40037	40349		40340
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	39210		39211
		40			39223		39224
		50			39236		39237
		60			39249		39240
		80			39252		39253
		100			39265		39266
		120			39278		39279
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	39281		39282	40049		40040	40352		40353
		40			39294		39295	40052		40053	40365		40366
		50			39307		39308	40065		40066	40378		40379
		60			39410		39411	40078		40079	40381		40382
		80			39423		39424	40081		40082	40394		40395
		100			39436		39437	40094		40095	40407		40408
		120			39449		39440	40107		40108	40410		40411
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	39452		39453				40423		40424
		40			39465		39466				40436		40437
		50			39478		39479				40449		40440
		60			39481		39482				40452		40453
		80			39494		39495				40465		40466
		100			39507		39508				40478		40479
		120			39510		39511				40481		40482
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	39523		39524				40494		40495
		40			39536		39537				40507		40508
		50			39549		39540				40510		40511
		60			39552		39553				40523		40524
		80			39565		39566				40536		40537
		100			39578		39579				40549		40540
		120			39581		39582				40552		40553
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	39594		39595
		40			39607		39608
		50			39610		39611
		60			39623		39624
		80			39636		39637
		100			39649		39640
		120			39652		39653
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	39665		39666
		40			39678		39679
		50			39681		39682
		60			39694		39695
		80			39707		39708
		100			39710		39711
		120			39723		39724
