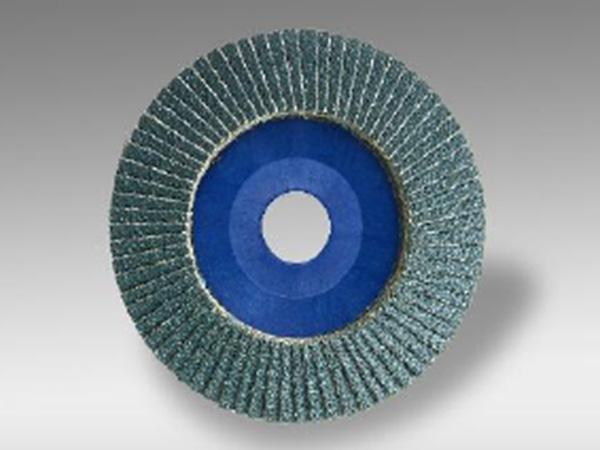

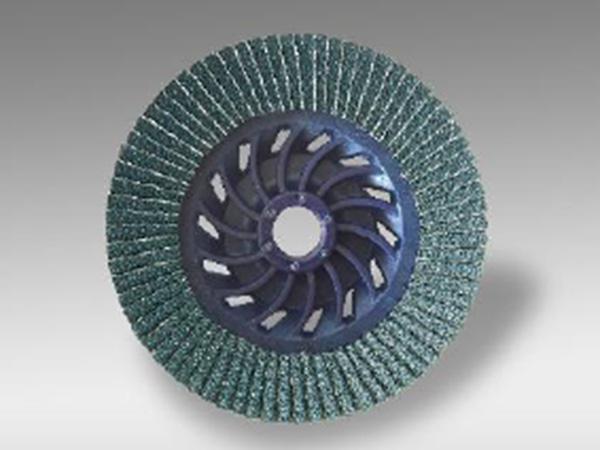

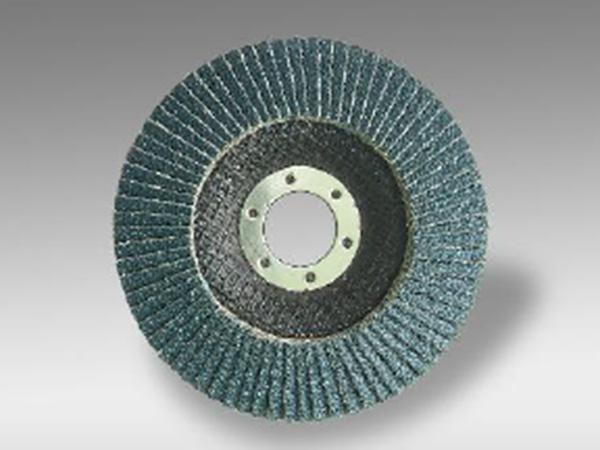

JAC-Z618FX Zirconium Oxide Flap Discs

Availability

Product Code	JAC-Z618FX	JAC-Z618FX	JAC-Z618FX
Abrasive Grains	Standard Zirconia Alumina	Standard Zirconia Alumina	Standard Zirconia Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double
Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	61001	62569	61002	61730	62872	61731
		40			61014	62572	61015	61743	62885	61744
		50			61027	62585	61028	61756	62898	61757
		60			61030	62598	61031	61769	62901	61860
		80			61043	62601	61044	61872	62914	61873
		100			61056	62614	61057	61885	62927	61886
		120			61069	62627	61060	61898	62930	61899
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	61072	62730	61073	61901	62943	61902	62114		62115
		40			61085	62743	61086	61914	62956	61915	62127		62128
		50			61098	62756	61099	61927	62969	61928	62130		62131
		60			61101	62769	61102	61930	62972	61931	62143		62144
		80			61114	62772	61115	61943	62985	61944	62156		62157
		100			61127	62785	61128	61956	62998	61957	62169		62160
		120			61130	62798	61131	61969	63001	61960	62172		62173
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	61143	62801	61144	61972	63014	61973	62185		62186
		40			61156	62814	61157	61985	63027	61986	62198		62199
		50			61169	62827	61160	61998	63030	61999	62301		62302
		60			61172	62830	61173	62001	63043	62002	62314		62315
		80			61185	62843	61186	62014	63056	62015	62327		62328
		100			61198	62856	61199	62027	63069	62028	62330		62331
		120			61201	62869	61202	62030	63172	62031	62343		62344
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	61214		61215
		40			61227		61228
		50			61230		61231
		60			61243		61244
		80			61256		61257
		100			61269		61260
		120			61272		61273
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	61285		61286	62043		62044	62356		62357
		40			61298		61299	62056		62057	62369		62360
		50			61301		61302	62069		62060	62372		62373
		60			61314		61315	62072		62073	62385		62386
		80			61327		61328	62085		62086	62398		62399
		100			61430		61431	62098		62099	62401		62402
		120			61443		61444	62101		62102	62414		62415
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	61456		61457				62427		62428
		40			61469		61460				62430		62431
		50			61472		61473				62443		62444
		60			61485		61486				62456		62457
		80			61498		61499				62469		62460
		100			61501		61502				62472		62473
		120			61514		61515				62485		62486
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	61527		61528				62498		62499
		40			61530		61531				62501		62502
		50			61543		61544				62514		62515
		60			61556		61557				62527		62528
		80			61569		61560				62530		62531
		100			61572		61573				62543		62544
		120			61585		61586				62556		62557
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	61598		61599
		40			61601		61602
		50			61614		61615
		60			61627		61628
		80			61630		61631
		100			61643		61644
		120			61656		61657
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	61669		61660
		40			61672		61673
		50			61685		61686
		60			61698		61699
		80			61701		61702
		100			61714		61715
		120			61727		61728

JAC-Z618FX Zirconium Oxide Flap Discs
