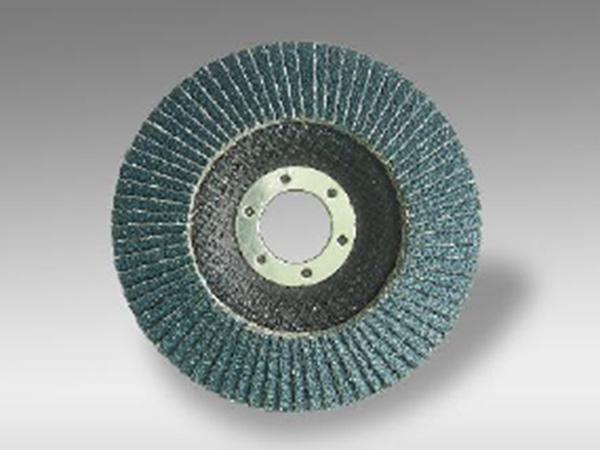

JAC-Z698SX Zirconium Oxide Flap Discs

Availability

Product Code	JAC-Z698SX	JAC-Z698SX	JAC-Z698SX
Abrasive Grains	Premium Zirconia Alumina	Premium Zirconia Alumina	Premium Zirconia Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double

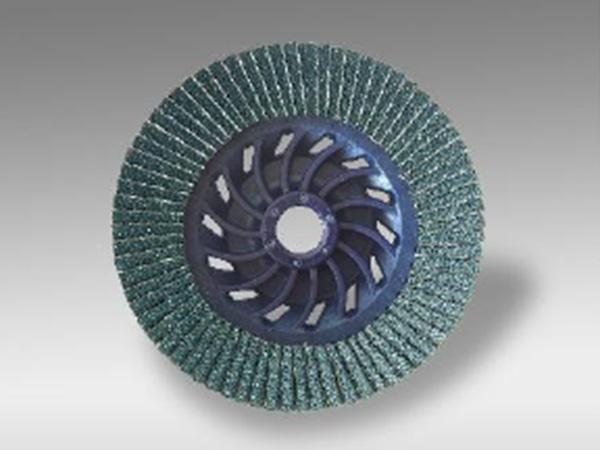

Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	69007	70565	69008	69736	70878	69737
		40			69010	70578	69011	69749	70881	69840
		50			69023	70581	69024	69852	70894	69853
		60			69036	70594	69037	69865	70907	69866
		80			69049	70607	69040	69878	70910	69879
		100			69052	70710	69053	69881	70923	69882
		120			69065	70723	69066	69894	70936	69895
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	69078	70736	69079	69907	70949	69908	70110		70111
		40			69081	70749	69082	69910	70952	69911	70123		70124
		50			69094	70752	69095	69923	70965	69924	70136		70137
		60			69107	70765	69108	69936	70978	69937	70149		70140
		80			69110	70778	69111	69949	70981	69940	70152		70153
		100			69123	70781	69124	69952	70994	69953	70165		70166
		120			69136	70794	69137	69965	71007	69966	70178		70179
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	69149	70807	69140	69978	71010	69979	70281		70282
		40			69152	70810	69153	69981	71023	69982	70294		70295
		50			69165	70823	69166	69994	71036	69995	70307		70308
		60			69178	70836	69179	70007	71049	70008	70310		70311
		80			69181	70849	69182	70010	71152	70011	70323		70324
		100			69194	70852	69195	70023	71165	70024	70336		70337
		120			69207	70865	69208	70036	71178	70037	70349		70340
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	69210		69211
		40			69223		69224
		50			69236		69237
		60			69249		69240
		80			69252		69253
		100			69265		69266
		120			69278		69279
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	69281		69282	70049		70040	70352		70353
		40			69294		69295	70052		70053	70365		70366
		50			69307		69308	70065		70066	70378		70379
		60			69410		69411	70078		70079	70381		70382
		80			69423		69424	70081		70082	70394		70395
		100			69436		69437	70094		70095	70407		70408
		120			69449		69440	70107		70108	70410		70411
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	69452		69453				70423		70424
		40			69465		69466				70436		70437
		50			69478		69479				70449		70440
		60			69481		69482				70452		70453
		80			69494		69495				70465		70466
		100			69507		69508				70478		70479
		120			69510		69511				70481		70482
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	69523		69524				70494		70495
		40			69536		69537				70507		70508
		50			69549		69540				70510		70511
		60			69552		69553				70523		70524
		80			69565		69566				70536		70537
		100			69578		69579				70549		70540
		120			69581		69582				70552		70553
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	69594		69595
		40			69607		69608
		50			69610		69611
		60			69623		69624
		80			69636		69637
		100			69649		69640
		120			69652		69653
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	69665		69666
		40			69678		69679
		50			69681		69682
		60			69694		69695
		80			69707		69708
		100			69710		69711
		120			69723		69724

JAC-Z698SX Zirconium Oxide Flap Discs
