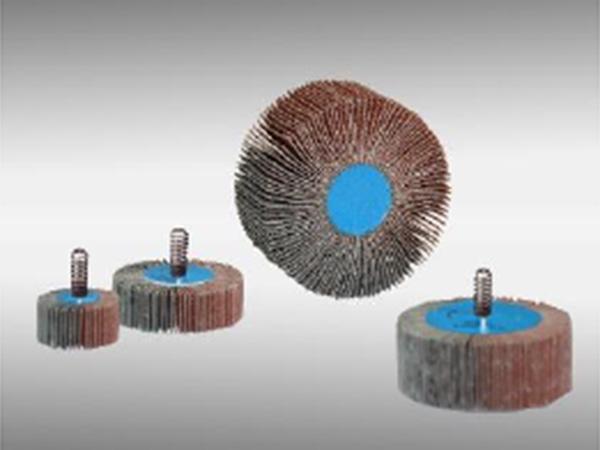

JAC-K368KM Aluminum Oxide Mounted Flap Wheels

  • JAC-K368KM Aluminum Oxide Mounted Flap Wheels
  • JAC-K368KM Aluminum Oxide Mounted Flap Wheels
  • JAC-K368KM Aluminum Oxide Mounted Flap Wheels
  • JAC-K368KM Aluminum Oxide Mounted Flap Wheels
Availability
Product Code JAC-K366GM JAC-K367RM JAC-K368KM
Abrasive Grains Standard Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide
Backing Cloth Type X-Flex cotton X-Flex cotton X-Flex cotton
Flap Mounted Version Single Single Single
Straight Steel Shank Size Threaded Shank 1/4'-20 Threaded Shank 1/4'-20 Threaded Shank 1/4'-20
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART #
( D x W x S ) ( D x W x S ) RPM RPM PACK
1" x 1/2" x 1/4"-20 25 x 13 x Th 20,000 30,000 10 40 37372 37386 37374
60 37385 37399 37387
80 37398 37402 37390
100 37401 37415 37403
120 37414 37428 37416
150 37427 37431 37429
180 37430 37444 37432
240 37443 37457 37445
320 37456 37460 37458
1" x 1" x 1/4"-20 25 x 25 x Th 20,000 30,000 10 40 37469 37473 37461
60 37472 37486 37474
80 37485 37499 37487
100 37498 37502 37490
120 37501 37515 37503
150 37514 37528 37516
180 37527 37531 37529
240 37530 37544 37532
　 　 　 320 37543 37557 37545
1-1/2"x5/8"x1/4"-20 40 x 15 x Th 20,000 30,000 10 40 37556 37560 37558
60 37569 37573 37561
80 37572 37586 37574
100 37585 37599 37587
120 37598 37602 37590
150 37601 37615 37603
180 37614 37628 37616
240 37627 37631 37629
　 　 　 320 37630 37644 37632
1-1/2" x 1" x 1/4"-20 40 x 25 x Th 20,000 30,000 10 40 37643 37657 37645
60 37656 37660 37658
80 37669 37673 37661
100 37672 37686 37674
120 37685 37699 37687
150 37698 37802 37790
180 37801 37815 37803
240 37814 37828 37816
　 　 　 320 37827 37831 37829
2" x 1/2" x 1/4" 50 x 13 x Th 15,000 25,000 10 40 37830 37844 37832
60 37843 37857 37845
80 37856 37860 37858
100 37869 37873 37861
120 37872 37886 37874
150 37885 37899 37887
180 37898 37902 37890
240 37901 37915 37903
　 　 　 320 37914 37928 37916
2" x 3/4" x 1/4" 50 x 20 x Th 15,000 25,000 10 40 37927 37931 37929
60 37930 37944 37932
80 37943 37957 37945
100 37956 37960 37958
120 37969 37973 37961
150 37972 37986 37974
180 37985 37999 37987
240 37998 38002 37990
　 　 　 320 38001 38015 38003
2" x 1" x 1/4" 50 x 25 x Th 15,000 25,000 10 40 38014 38028 38016
60 38027 38031 38029
80 38030 38044 38032
100 38043 38057 38045
120 38056 38060 38058
150 38069 38073 38061
180 38072 38086 38074
240 38085 38099 38087
　 　 　 320 38098 38102 38090
2" x 1-1/2" x 1/4" 50 x 40 x Th 15,000 25,000 10 40 38101 38115 38103
60 38114 38128 38116
80 38127 38231 38129
100 38230 38244 38232
120 38243 38257 38245
150 38256 38260 38258
180 38269 38273 38261
240 38272 38286 38274
　 　 　 320 38285 38299 38287
2-1/2" x 1/2" x 1/4" 50 x 13 x Th 14,000 23,000 10 40 38298 38302 38290
60 38301 38315 38303
80 38314 38328 38316
100 38327 38331 38329
120 38330 38344 38332
150 38343 38357 38345
180 38356 38360 38358
240 38369 38373 38361
　 　 　 320 38372 38386 38374
2-1/2" x 1" x 1/4" 50 x 25 x Th 14,000 23,000 10 40 38385 38399 38387
60 38398 38402 38390
80 38401 38415 38403
100 38414 38428 38416
120 38427 38431 38429
150 38430 38444 38432
180 38443 38457 38445
240 38456 38460 38458
　 　 　 320 38469 38473 38461
3" x 1/2" x 1/4" 75 x 13 x Th 13,000 20,000 10 40 38472 38486 38474
60 38485 38499 38487
80 38498 38502 38490
100 38501 38515 38503
120 38514 38528 38516
150 38527 38531 38529
180 38530 38544 38532
240 38543 38557 38545
　 　 　 320 38556 38660 38558
3" x 3/4" x 1/4" 75 x 20 x Th 13,000 20,000 10 40 38569 38673 38661
60 38672 38686 38674
80 38685 38699 38687
100 38698 38702 38690
120 38701 38715 38703
150 38714 38728 38716
180 38727 38731 38729
240 38730 38744 38732
　 　 　 320 38743 38757 38745
3" x 1" x 1/4" 75 x 25 x Th 13,000 20,000 10 40 38756 38760 38758
60 38769 38773 38761
80 38772 38786 38774
100 38785 38799 38787
120 38798 38802 38790
150 38801 38815 38803
180 38814 38828 38816
240 38827 38831 38829
320 38830 38844 38832
JAC-K368KM Aluminum Oxide Mounted Flap Wheels
