Back-Up Pads for Vulcanized Fiber Discs

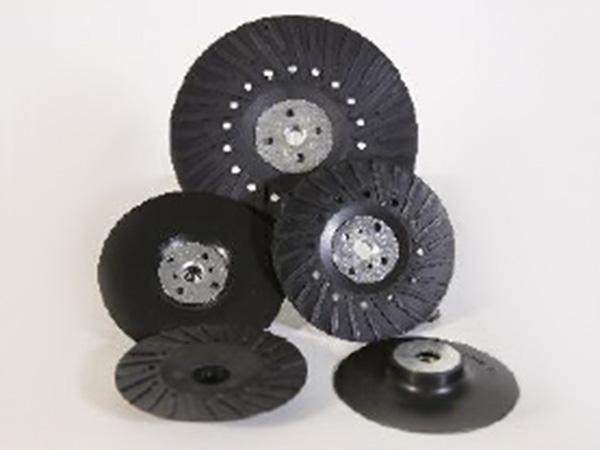

Joysun rubber back-up pads for vulcanized fiber discs are constructed with either a smooth surface or ribbed surface. The pads are manufactured in regular densities for general purpose grinding applications and come in a selection of diameters and arbors.
JAC-A216BP Back-Up Pads for Vulcanized Fiber Discs
| Product Code | JAC-A216BP | JAC-A226BP | JAC-A236BP |
| Back-up Pads Shape | Flat | Flat with Turbo | Quick Change with Turbo |
| SIZE ( D x H ) | SIZE ( D x H ) | MAX | STD | PART # | PART # | PART # |
| RPM | PACK | |||||
| 100 x 3/8"-24 | 15,300 | 5 | 21106 | 21248 | 21380 | |
| 100 x M10-1.5 | 15,300 | 5 | 21119 | 21251 | 21393 | |
| 100 x M14-2 | 15,300 | 5 | 21122 | 21264 | 21406 | |
| 115 mmx 5/8"-11 | 13,300 | 5 | 21135 | 21277 | 21419 | |
| 115 mmxM10-1.5 | 13,300 | 5 | 21148 | 21280 | 21522 | |
| 115 mm x M14-2 | 13,300 | 5 | 21151 | 21293 | 21535 | |
| 125 mm x 5/8"-11 | 12,200 | 5 | 21164 | 21306 | 21548 | |
| 125 mm x M14-2 | 12,200 | 5 | 21177 | 21319 | 21551 | |
| 150 mm x 5/8"-11 | 10,200 | 5 | 21180 | 21322 | 21564 | |
| 150 mm x M14-2 | 10,200 | 5 | 21193 | 21335 | 21577 | |
| 150 mm x M16-2 | 10,200 | 5 | 21206 | 21348 | 21580 | |
| 180 mm x 5/8"-11 | 8,600 | 5 | 21219 | 21351 | 21593 | |
| 180 mm x M14-2 | 8,600 | 5 | 21222 | 21364 | 21606 | |
| 180 mm x M16-2 | 8,600 | 5 | 21235 | 21377 | 21619 |
