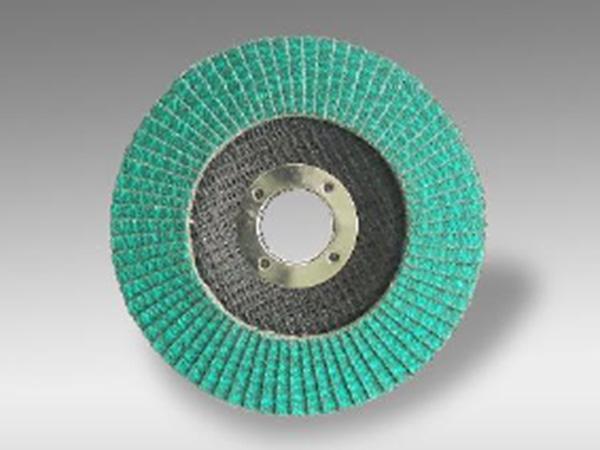

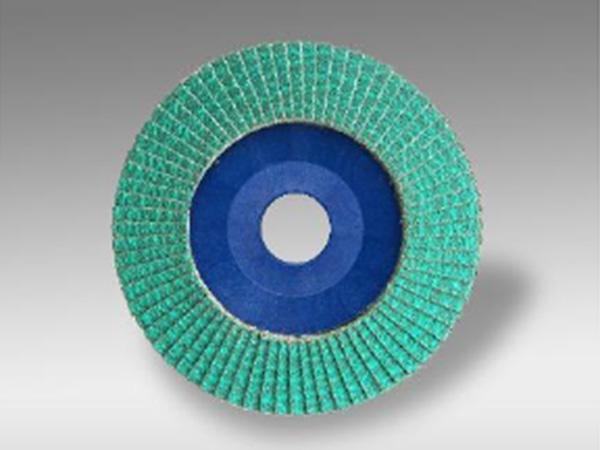

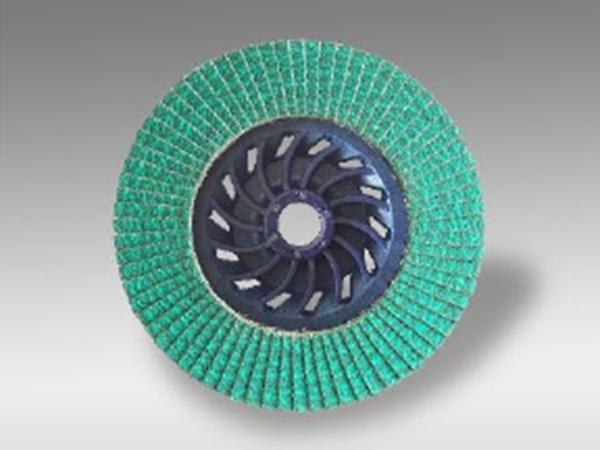

JAC-S978HX Ceramic Alumina Flap Discs

Availability

Product Code	JAC-S978HX	JAC-S978HX	JAC-S978HX
Abrasive Grains	Premium Ceramic Alumina	Premium Ceramic Alumina	Premium Ceramic Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double
Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	97003	98561	97004	97732	98874	97733
		40			97016	98574	97017	97745	98887	97746
		50			97029	98587	97020	97758	98890	97759
		60			97032	98590	97033	97861	98903	97862
		80			97045	98603	97046	97874	98916	97875
		100			97058	98616	97059	97887	98929	97888
		120			97061	98629	97062	97890	98932	97891
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	97074	98732	97075	97903	98945	97904	98116		98117
		40			97087	98745	97088	97916	98958	97917	98129		98120
		50			97090	98758	97091	97929	98961	97920	98132		98133
		60			97103	98761	97104	97932	98974	97933	98145		98146
		80			97116	98774	97117	97945	98987	97946	98158		98159
		100			97129	98787	97120	97958	98990	97959	98161		98162
		120			97132	98790	97133	97961	99003	97962	98174		98175
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	97145	98803	97146	97974	99016	97975	98187		98188
		40			97158	98816	97159	97987	99029	97988	98290		98291
		50			97161	98829	97162	97990	99032	97991	98303		98304
		60			97174	98832	97175	98003	99045	98004	98316		98317
		80			97187	98845	97188	98016	99058	98017	98329		98320
		100			97190	98858	97191	98029	99161	98020	98332		98333
		120			97203	98861	97204	98032	99174	98033	98345		98346
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	97216		97217
		40			97229		97220
		50			97232		97233
		60			97245		97246
		80			97258		97259
		100			97261		97262
		120			97274		97275
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	97287		97288	98045		98046	98358		98359
		40			97290		97291	98058		98059	98361		98362
		50			97303		97304	98061		98062	98374		98375
		60			97316		97317	98074		98075	98387		98388
		80			97329		97420	98087		98088	98390		98391
		100			97432		97433	98090		98091	98403		98404
		120			97445		97446	98103		98104	98416		98417
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	97458		97459				98429		98420
		40			97461		97462				98432		98433
		50			97474		97475				98445		98446
		60			97487		97488				98458		98459
		80			97490		97491				98461		98462
		100			97503		97504				98474		98475
		120			97516		97517				98487		98488
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	97529		97520				98490		98491
		40			97532		97533				98503		98504
		50			97545		97546				98516		98517
		60			97558		97559				98529		98520
		80			97561		97562				98532		98533
		100			97574		97575				98545		98546
		120			97587		97588				98558		98559
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	97590		97591
		40			97603		97604
		50			97616		97617
		60			97629		97620
		80			97632		97633
		100			97645		97646
		120			97658		97659
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	97661		97662
		40			97674		97675
		50			97687		97688
		60			97690		97691
		80			97703		97704
		100			97716		97717
		120			97729		97720

JAC-S978HX Ceramic Alumina Flap Discs
