JAC-S988RX Ceramic Alumina Flap Discs

Availability

Product Code	JAC-S988RX	JAC-S988RX	JAC-S988RX
Abrasive Grains	Premium Ceramic Alumina	Premium Ceramic Alumina	Premium Ceramic Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double

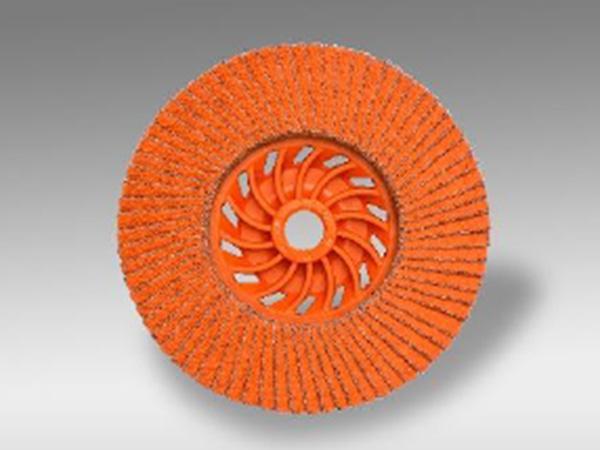

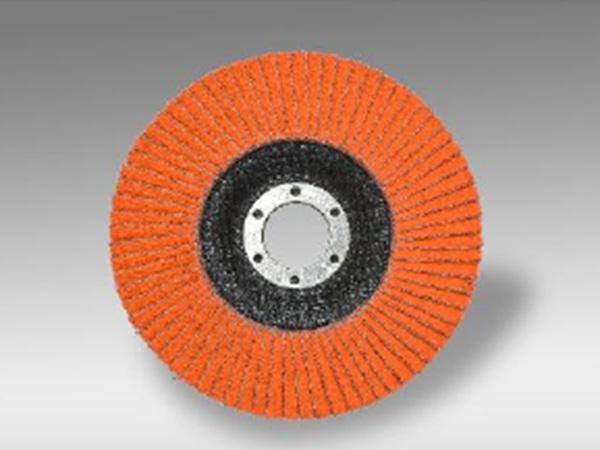

Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	98005	99563	98006	98734	99558	98735
		40			98018	99576	98019	98747	99561	98748
		50			98021	99589	98022	98850	99574	98851
		60			98034	99592	98035	98863	99587	98864
		80			98047	99605	98048	98876	99590	98877
		100			98050	99618	98051	98889	99603	98880
		120			98063	99721	98064	98892	99616	98893
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	98076	99734	98077	98905	99629	98906	99118		99119
		40			98089	99747	98080	98918	99732	98919	99121		99122
		50			98092	99750	98093	98921	99745	98922	99134		99135
		60			98105	99763	98106	98934	99758	98935	99147		99148
		80			98118	99776	98119	98947	99761	98948	99150		99151
		100			98121	99789	98122	98950	99774	98951	99163		99164
		120			98134	99792	98135	98963	99787	98964	99176		99177
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	98147	99805	98148	98976	99790	98977	99189		99280
		40			98150	99818	98151	98989	99803	98980	99292		99293
		50			98163	99821	98164	98992	99816	98993	99305		99306
		60			98176	99834	98177	99005	99829	99006	99318		99319
		80			98189	99847	98180	99018	99832	99019	99321		99322
		100			98192	99850	98193	99021	99845	99022	99334		99335
		120			98205	99863	98206	99034	99858	99035	99347		99348
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	98218		98219
		40			98221		98222
		50			98234		98235
		60			98247		98248
		80			98250		98251
		100			98263		98264
		120			98276		98277
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	98289		98280	99047		99048	99350		99351
		40			98292		98293	99050		99051	99363		99364
		50			98305		98306	99063		99064	99376		99377
		60			98318		98319	99076		99077	99389		99380
		80			98421		98422	99089		99080	99392		99393
		100			98434		98435	99092		99093	99405		99406
		120			98447		98448	99105		99106	99418		99419
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	98450		98451				99421		99422
		40			98463		98464				99434		99435
		50			98476		98477				99447		99448
		60			98489		98480				99450		99451
		80			98492		98493				99463		99464
		100			98505		98506				99476		99477
		120			98518		98519				99489		99480
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	98521		98522				99492		99493
		40			98534		98535				99505		99506
		50			98547		98548				99518		99519
		60			98550		98551				99521		99522
		80			98563		98564				99534		99535
		100			98576		98577				99547		99548
		120			98589		98580				99550		99551
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	98592		98593
		40			98605		98606
		50			98618		98619
		60			98621		98622
		80			98634		98635
		100			98647		98648
		120			98650		98651
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	98663		98664
		40			98676		98677
		50			98689		98680
		60			98692		98693
		80			98705		98706
		100			98718		98719
		120			98721		98722

JAC-S988RX Ceramic Alumina Flap Discs
