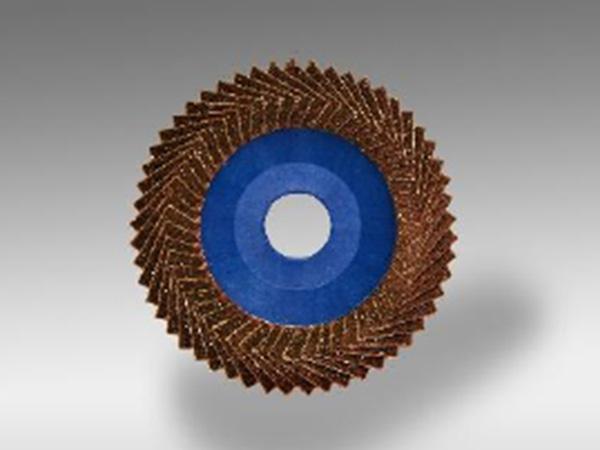

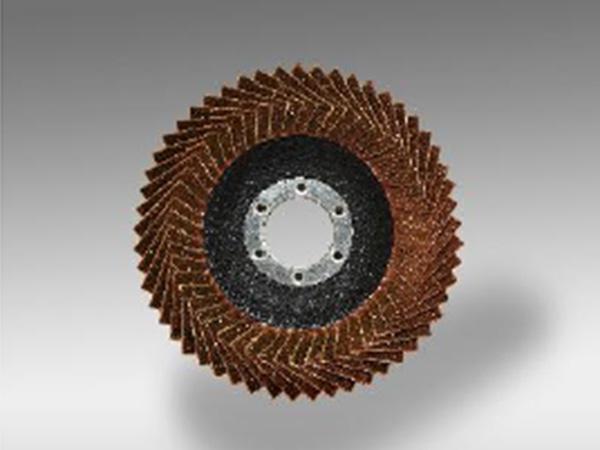

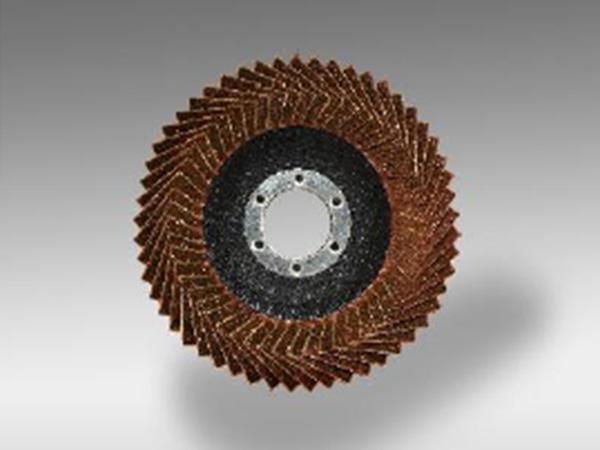

Aluminum Oxide Dish Flexible Flap Discs

  • Aluminum Oxide Dish Flexible Flap Discs
  • Aluminum Oxide Dish Flexible Flap Discs
  • Aluminum Oxide Dish Flexible Flap Discs
  • Aluminum Oxide Dish Flexible Flap Discs
Availability
Product Code JAC-K366FD JAC-K367FD JAC-K368FD
Abrasive Grains Calcined Alumina Oxide Calcined Alumina Oxide Calcined Alumina Oxide
Flap Disc Density Standard Standard Standard
Flap Fitted Versions Single Single Single
Backing Plate Material Fiberglass / Plastic Fiberglass / Plastic Fiberglass / Plastic
Flap Disc Shape Available T12-Dish T12-Dish T12-Dish
BRITSH SIZE METRIC SIZE GRIT MAX STD PART # PART # PART # PART # PART # PART #
( D x H ) ( D x H ) RPM PACK
4" x 5/8" 100 mm x 16 mm 36 15,300 10 36601 37056 36602 37057 36603 37058
40 36614 37069 36615 37060 36616 37061
50 36627 37072 36628 37073 36629 37074
60 36630 37085 36631 37086 36632 37087
80 36643 37098 36644 37099 36645 37090
100 36656 37101 36657 37102 36658 37103
　 　 120 　 　 36669 37114 36660 37115 36661 37116
4-1/2" x 7/8" 115 mm x 22.23 mm 36 13,300 10 36672 37127 36673 37128 36674 37129
40 36685 37130 36686 37131 36687 37132
50 36698 37143 36699 37144 36690 37145
60 36701 37156 36702 37157 36703 37158
80 36714 37169 36715 37160 36716 37161
100 36727 37172 36728 37173 36729 37174
　 　 120 　 　 36730 37185 36731 37186 36732 37187
5" x 7/8" 125 mm x 22.23 mm 36 12,200 10 36743 37198 36744 37199 36745 37190
40 36756 37201 36757 37202 36758 37203
50 36769 37214 36760 37215 36761 37216
60 36772 37227 36773 37228 36774 37229
80 36785 37230 36786 37231 36787 37232
100 36798 37243 36799 37244 36790 37245
120 36801 37256 36802 37257 36803 37258
6" x 7/8" 150 mm x 22.23 mm 36 9,600 10 36814 37269 36815 37260 36816 37261
40 36827 37272 36828 37273 36829 37274
50 36830 37285 36831 37286 36832 37287
60 36843 37298 36844 37299 36845 37290
80 36856 37301 36857 37302 36858 37303
100 36869 37314 36860 37315 36861 37316
　 　 120 　 　 36872 37327 36873 37328 36874 37329
7" x 7/8" 180 mm x 22.23 mm 36 8,500 10 36885 37330 36886 37331 36887 37332
40 36898 37343 36899 37344 36890 37345
50 36901 37356 36902 37357 36903 37358
60 36914 37369 36915 37460 36916 37461
80 36927 37472 36928 37473 36929 37474
100 37030 37485 37031 37486 37032 37487
120 37043 37498 37044 37499 37045 37490
