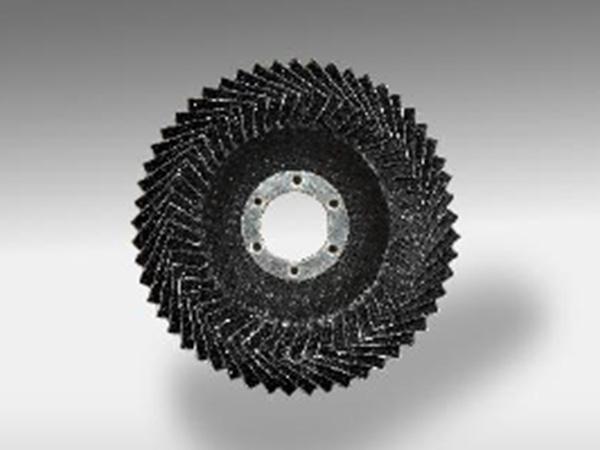

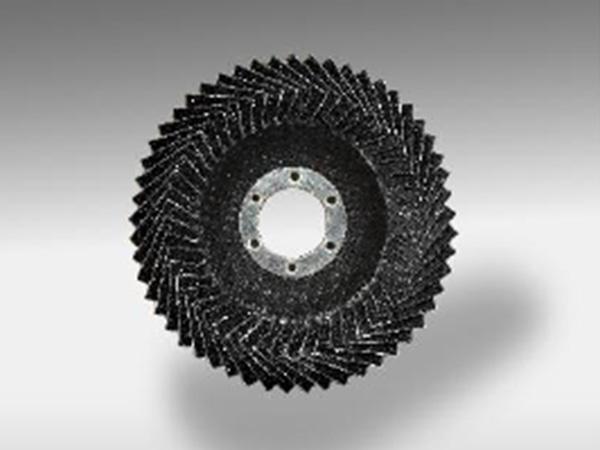

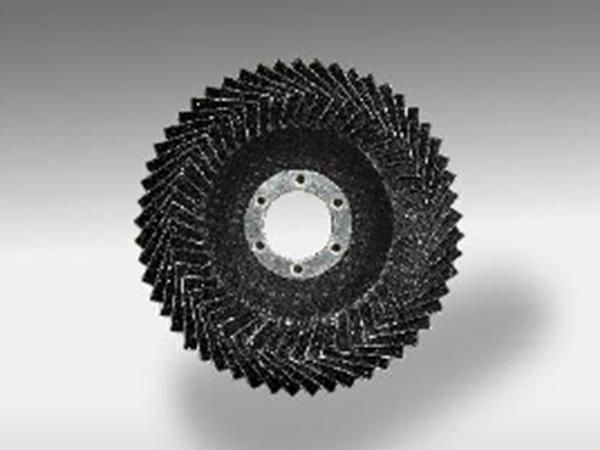

Silicon carbide Dish Flexible Flap Discs

  • Silicon carbide Dish Flexible Flap Discs
  • Silicon carbide Dish Flexible Flap Discs
  • Silicon carbide Dish Flexible Flap Discs
  • Silicon carbide Dish Flexible Flap Discs
Availability
Product Code JAC-C866FD JAC-C867FD JAC-C868FD
Abrasive Grains Ceramic Alumina Ceramic Alumina Ceramic Alumina
Flap Disc Density Standard Standard Standard
Flap Fitted Versions Single Single Single
Backing Plate Material Fiberglass / Plastic Fiberglass / Plastic Fiberglass / Plastic
Flap Disc Shape Available T12-Dish T12-Dish T12-Dish
BRITSH SIZE METRIC SIZE GRIT MAX STD PART # PART # PART # PART # PART # PART #
( D x H ) ( D x H ) RPM PACK
4" x 5/8" 100 mm x 16 mm 36 15,300 10 86601 86602 86701 86702 86801 86802
40 86614 86615 86714 86715 86814 86815
50 86627 86628 86727 86728 86827 86828
60 86630 86631 86730 86731 86830 86831
80 86643 86644 86743 86744 86843 86844
100 86656 86657 86756 86757 86856 86857
　 　 120 　 　 86669 86660 86769 86760 86869 86860
4-1/2" x 7/8" 115 mm x 22.23 mm 36 13,300 10 86672 86673 86772 86773 86872 86873
40 86685 86686 86785 86786 86885 86886
50 86698 86699 86798 86799 86898 86899
60 86701 86702 86801 86802 86901 86902
80 86714 86715 86814 86815 86914 86915
100 86727 86728 86827 86828 86927 86928
　 　 120 　 　 86730 86731 86830 86831 86930 86931
5" x 7/8" 125 mm x 22.23 mm 36 12,200 10 86743 86744 86843 86844 86943 86944
40 86756 86757 86856 86857 86956 86957
50 86769 86760 86869 86860 86969 86960
60 86772 86773 86872 86873 86972 86973
80 86785 86786 86885 86886 86985 86986
100 86798 86799 86898 86899 86998 86999
120 86801 86802 86901 86902 87001 87002
6" x 7/8" 150 mm x 22.23 mm 36 9,600 10 86814 86815 86914 86915 87014 87015
40 86827 86828 86927 86928 87027 87028
50 86830 86831 86930 86931 87030 87031
60 86843 86844 86943 86944 87043 87044
80 86856 86857 86956 86957 87056 87057
100 86869 86860 86969 86960 87069 87060
　 　 120 　 　 86872 86873 86972 86973 87072 87073
7" x 7/8" 180 mm x 22.23 mm 36 8,500 10 86885 86886 86985 86986 87085 87086
40 86898 86899 86998 86999 87098 87099
50 86901 86902 87001 87002 87101 87102
60 86914 86915 87014 87015 87114 87115
80 86927 86928 87027 87028 87127 87128
100 87030 87031 87130 87131 87230 87231
120 87043 87044 87143 87144 87243 87244
Silicon carbide Dish Flexible Flap Discs
