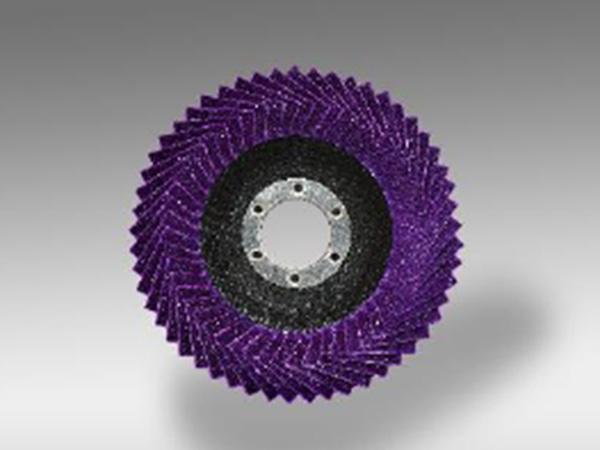

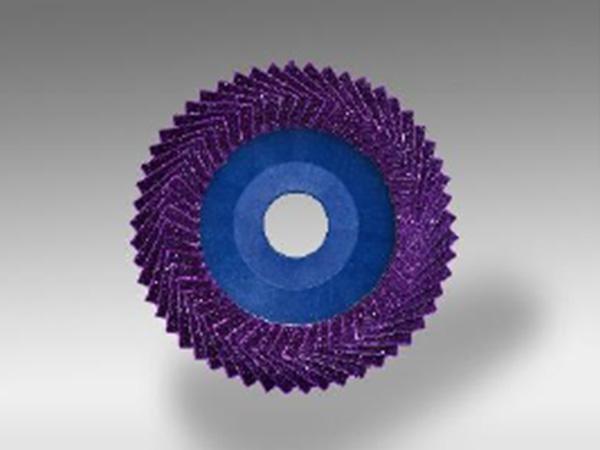

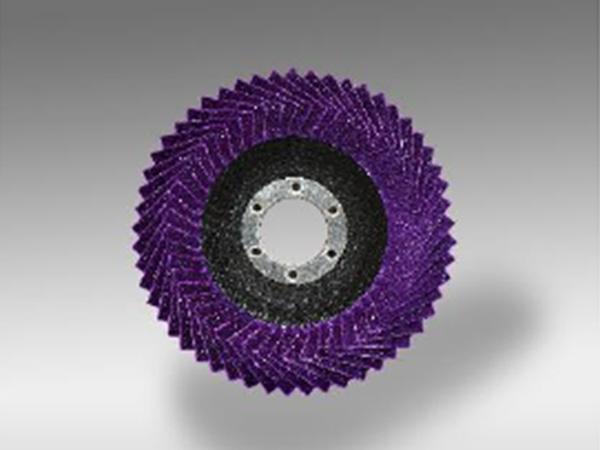

Ceramic Alumina Dish Flexible Flap Discs

  • Ceramic Alumina Dish Flexible Flap Discs
  • Ceramic Alumina Dish Flexible Flap Discs
  • Ceramic Alumina Dish Flexible Flap Discs
  • Ceramic Alumina Dish Flexible Flap Discs
Availability
Product Code JAC-S966FD JAC-S967FD JAC-S968FD
Abrasive Grains Ceramic Alumina Ceramic Alumina Ceramic Alumina
Flap Disc Density Standard Standard Standard
Flap Fitted Versions Single Single Single
Backing Plate Material Fiberglass / Plastic Fiberglass / Plastic Fiberglass / Plastic
Flap Disc Shape Available T12-Dish T12-Dish T12-Dish
BRITSH SIZE METRIC SIZE GRIT MAX STD PART # PART # PART # PART # PART # PART #
( D x H ) ( D x H ) RPM PACK
4" x 5/8" 100 mm x 16 mm 36 15,300 10 96601 96602 96701 96702 96801 96802
40 96614 96615 96714 96715 96814 96815
50 96627 96628 96727 96728 96827 96828
60 96630 96631 96730 96731 96830 96831
80 96643 96644 96743 96744 96843 96844
100 96656 96657 96756 96757 96856 96857
　 　 120 　 　 96669 96660 96769 96760 96869 96860
4-1/2" x 7/8" 115 mm x 22.23 mm 36 13,300 10 96672 96673 96772 96773 96872 96873
40 96685 96686 96785 96786 96885 96886
50 96698 96699 96798 96799 96898 96899
60 96701 96702 96801 96802 96901 96902
80 96714 96715 96814 96815 96914 96915
100 96727 96728 96827 96828 96927 96928
　 　 120 　 　 96730 96731 96830 96831 96930 96931
5" x 7/8" 125 mm x 22.23 mm 36 12,200 10 96743 96744 96843 96844 96943 96944
40 96756 96757 96856 96857 96956 96957
50 96769 96760 96869 96860 96969 96960
60 96772 96773 96872 96873 96972 96973
80 96785 96786 96885 96886 96985 96986
100 96798 96799 96898 96899 96998 96999
120 96801 96802 96901 96902 97001 97002
6" x 7/8" 150 mm x 22.23 mm 36 9,600 10 96814 96815 96914 96915 97014 97015
40 96827 96828 96927 96928 97027 97028
50 96830 96831 96930 96931 97030 97031
60 96843 96844 96943 96944 97043 97044
80 96856 96857 96956 96957 97056 97057
100 96869 96860 96969 96960 97069 97060
　 　 120 　 　 96872 96873 96972 96973 97072 97073
7" x 7/8" 180 mm x 22.23 mm 36 8,500 10 96885 96886 96985 96986 97085 97086
40 96898 96899 96998 96999 97098 97099
50 96901 96902 97001 97002 97101 97102
60 96914 96915 97014 97015 97114 97115
80 96927 96928 97027 97028 97127 97128
100 97030 97031 97130 97131 97230 97231
120 97043 97044 97143 97144 97243 97244
Ceramic Alumina Dish Flexible Flap Discs
