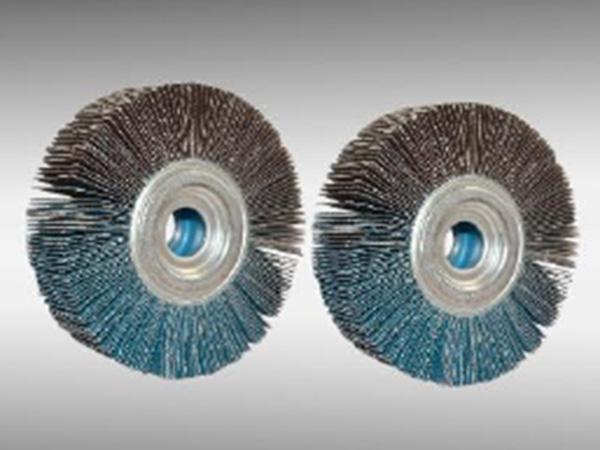

Joysun Zirconia flanged flap wheels are manufactured with a flexible X weight and J weight poly-cotton backing cloth bonded to premium quality zirconium alumina grains that make for a durable and professional grade abrasive.
The vertical fitted flaps are bonded to a steel flange which is particularly suited for cooled grinding operations. The anti-clogging grinding properties lead to high stock removal rates and they deliver maximum efficiency and optimal finished products. These products are highly effective for processing various types of steel.
Product Code | JAC-Z636GF | JAC-Z637RF | JAC-Z638KF |
Abrasive Grains | Premium Zirconia Oxide | Premium Zirconia Oxide | Premium Zirconia Oxide |
Backing Cloth Type | X-Flex cotton | X-Flex cotton | X-Flex cotton |
Flap Fitting Hardness | Hard/Medium/Soft | Hard/Medium/Soft | Hard/Medium/Soft |
Fasten Type Of Steel Flange | U Type Slot | U Type Slot | U Type Slot |
BRITSH SIZE | METRIC SIZE | OPT | MAX | STD | GRIT | PART # | PART # | PART # |
( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | ||||
3-1/2" x 1" x 5/8" | 90 x 25 x 16 mm | 5,200 | 12,000 | 10 | 40 | 60006 | 60007 | 60008 |
50 | 60019 | 60010 | 60011 | |||||
60 | 60022 | 60023 | 60024 | |||||
80 | 60035 | 60036 | 60037 | |||||
100 | 60048 | 60049 | 60040 | |||||
120 | 60051 | 60052 | 60053 | |||||
3-1/2" x 1-1/4" x 5/8" | 90 x 30 x 16 mm | 5,200 | 12,000 | 10 | 40 | 60064 | 60065 | 60066 |
50 | 60077 | 60078 | 60079 | |||||
60 | 60080 | 60081 | 60082 | |||||
80 | 60093 | 60094 | 60095 | |||||
100 | 60106 | 60107 | 60108 | |||||
120 | 60119 | 60110 | 60111 |
