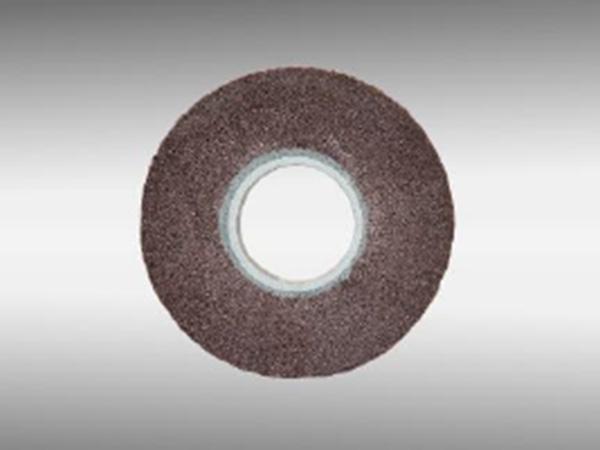

Non-Woven Polishing Flanged Flap Wheels

These non-woven polishing flanged flap wheels are produced with non-woven synthetic fiber mesh that is bonded with refined abrasive aluminum oxide grains.

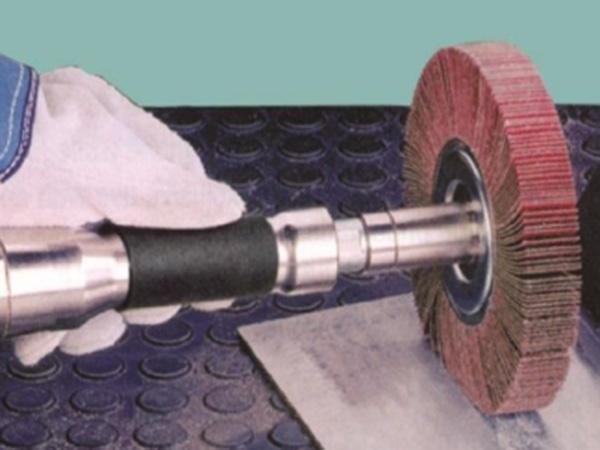

These non-woven flanged wheels are specially designed for finishing and polishing jobs as well as cleaning and maintenance operations. Joysun Non-woven flanged flap wheels are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.

JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
  • JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
  • JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
  • JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
  • JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
Availability
Product Code JAC-K716GF JAC-K726KF JAC-K736TF
Abrasive Grains Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide
Backing Cloth Type Non-woven Non-woven Non-woven
Flap Mounted Version Single Single Single
Fasten Type Of Steel Flange U Type Slot / Straight Hole U Type Slot / Straight Hole U Type Slot / Straight Hole
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART #
( D x W x H ) ( D x W x H ) RPM RPM PACK
6" x 1" x 2" 150 x 25 x 50 mm 3,000 6,100 10 Coarse 73206 73406 73706
Medium 73219 73419 73719
Fine 73222 73422 73722
　 　 　 V.Fine 73235 73435 73735
6-1/2" x 2" x 2-1/8" 165 x 50 x 54 mm 2,700 5,300 10 Coarse 73248 73448 73748
Medium 73251 73551 73751
Fine 73264 73564 73764
V.Fine 73277 73577 73777
8" x 1" x 3" 200 x 25 x 75 mm 2,400 4,500 10 Coarse 73280 73580 73780
Medium 73293 73593 73793
Fine 73306 73606 73806
　 　 　 V.Fine 73319 73619 73819
8" x 2" x 3" 200 x 50 x 25 mm 2,400 4,500 10 Coarse 73322 73622 73822
Medium 73335 73635 73835
2,400 4,500 10 Fine 73348 73648 73848
　 　 　 V.Fine 73351 73651 73851
12" x 2" x 5" 250 x 50 x 125 mm 1,900 4,000 10 Coarse 73364 73664 73864
Medium 73377 73677 73877
Fine 73380 73680 73980
V.Fine 73393 73693 73993
JAC-K716GF Non-Woven Polishing Flanged Flap Wheels
