Non-Woven Interleaf Flanged Flap Wheels

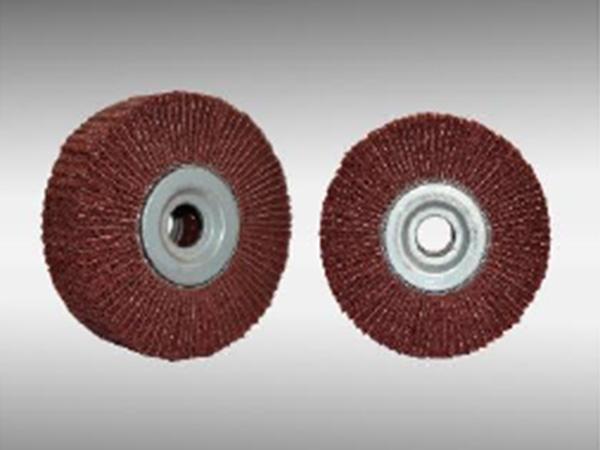

Joysun non-woven Combi-Interleaf flanged flap wheels are manufactured by combining with Alumina Non-woven Scotch Brite Materials and professional grade aluminum oxide abrasive cloth in X and J weight.

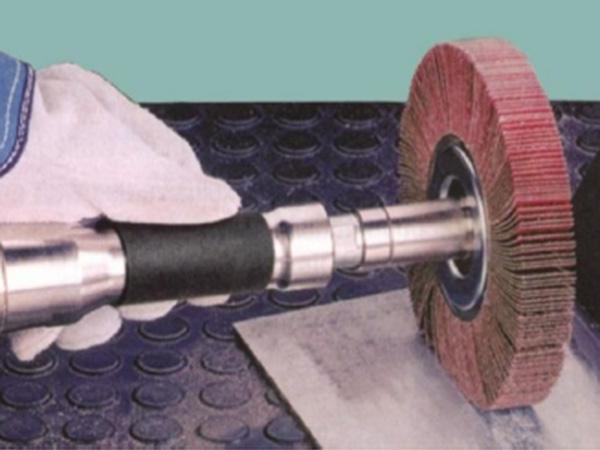

These combi interleaf flap wheels feature a flexible structure that provides a softer and more flexible operation. This makes them suitable for de-burring, creating decorative finishes, and rust removal among others. Joysun Non-woven combi interleaf flanged flap wheels are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.

JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
  • JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
  • JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
  • JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
  • JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
Availability
Product Code JAC-K727RF JAC-K728SF JAC-K729GF
Abrasive Grains Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide
Backing Cloth Type X-Flex cotton/Non-woven X-Flex cotton/Non-woven X-Flex cotton/Non-woven
Flap Mounted Version Interleaved Interleaved Interleaved
Fasten Type Of Steel Flange U Type Slot U Type Slot U Type Slot
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART #
( D x W x H ) ( D x W x H ) RPM RPM PACK
3-1/2" x 2" x 3/8" 90 x 50 x 10 mm 5,200 12,000 10 CRS+ 50 72207 72208 72209
CRS+ 60 72210 72211 72212
MED+80 72223 72224 72225
MED+120 72236 72237 72238
FIN+180 72249 72240 72241
VFN+240 72252 72253 72254
　 　 　 VFN+320 72265 72266 72267
4" x 2" x 5/8" 100 x 50 x 16 mm 5,200 12,000 10 CRS+ 50 72278 72279 72270
CRS+ 60 72281 72282 72283
MED+80 72294 72295 72296
MED+120 72307 72308 72309
FIN+180 72310 72311 72312
VFN+240 72323 72324 72325
　 　 　 VFN+320 72336 72337 72338
6" x 1" x 1" 150 x 25 x 25 mm 3,000 6,100 10 CRS+ 50 72349 72340 72341
CRS+ 60 72352 72353 72354
MED+80 72365 72366 72367
MED+120 72378 72379 72370
FIN+180 72381 72382 72383
VFN+240 72394 72395 72396
　 　 　 VFN+320 72407 72408 72409
6" x 2" x 1" 150 x 50 x 25 mm 3,000 6,100 10 CRS+ 50 72410 72411 72412
CRS+ 60 72423 72424 72425
MED+80 72436 72437 72438
MED+120 72449 72440 72441
FIN+180 72452 72453 72454
VFN+240 72465 72466 72467
VFN+320 72478 72479 72470
6" x 3" x 1" 150 x 75 x 25 mm 3,000 6,100 10 CRS+ 50 72481 72482 72483
CRS+ 60 72494 72495 72496
MED+80 72507 72508 72509
MED+120 72610 72611 72612
FIN+180 72623 72624 72625
VFN+240 72636 72637 72638
　 　 　 VFN+320 72649 72640 72641
6-1/2" x 1" x 2-1/8" 165 x 25 x 54 mm 2,700 5,300 10 CRS+ 50 72652 72653 72654
CRS+ 60 72665 72666 72667
MED+80 72678 72679 72670
MED+120 72681 72682 72683
FIN+180 72694 72695 72696
VFN+240 72707 72708 72709
VFN+320 72710 72711 72712
6-1/2" x 2" x 2-1/8" 165 x 50 x 54 mm 2,700 5,300 10 CRS+ 50 72723 72724 72725
CRS+ 60 72736 72737 72738
MED+80 72749 72740 72741
MED+120 72752 72753 72754
FIN+180 72765 72766 72767
VFN+240 72778 72779 72770
　 　 　 VFN+320 72781 72782 72783
8" x 2" x 1" 200 x 50 x 25 mm 2,400 4,500 10 CRS+ 50 72794 72795 72796
CRS+ 60 72807 72808 72809
MED+80 72810 72811 72812
MED+120 72823 72824 72825
FIN+180 72836 72837 72838
VFN+240 72849 72840 72841
VFN+320 72852 72853 72854
8" x 3" x 1" 200 x 50 x 25 mm 2,400 4,500 10 CRS+ 50 72865 72866 72867
CRS+ 60 72878 72879 72870
MED+80 72881 72882 72883
MED+120 72894 72895 72896
FIN+180 72907 72908 72909
VFN+240 72910 72911 72912
　 　 　 VFN+320 72923 72924 72925
12" x 1" x 5" 300 x 25 x125 mm 1,700 3,000 10 CRS+ 50 72936 72937 72938
CRS+ 60 72949 73040 73041
MED+80 73052 73053 73054
MED+120 73065 73066 73067
FIN+180 73078 73079 73070
VFN+240 73081 73082 73083
VFN+320 73094 73095 73096
JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels
